1. For drying free-flowing powder and small granule materials in various kinds of industries
2. Drying temperature: Ambient temp.-180 degree C (adjustable)
3. Drying capacity: 10-500 kg/batch
4. GMP design is available
5. Heat source can be steam, electricity, hot water, hot oil or gas/oil/coal/boimass fired hot air generator
GFG series batch type fluid bed dryer is designed based on GMP standard and is known for its enhanced drying capacity and sanitary operation condition.This design is mainly used to dry non-fragile granules and powder materials in foodstuff, pharmaceutical and chemical industry.

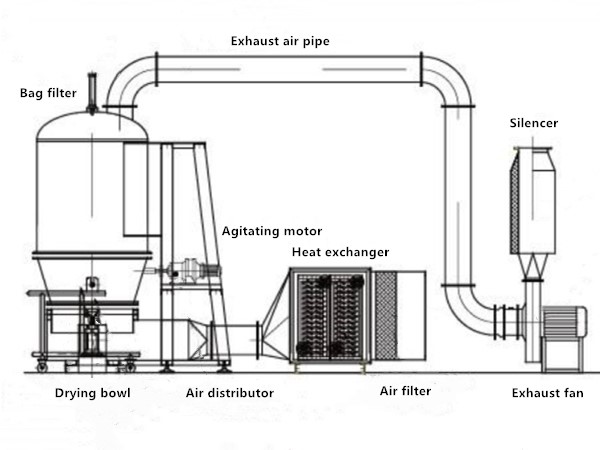

After being heated and filtered, clean hot air is introduced into the air distributor at the bottom of the dryer and flow through a perforated drying bowl on which wet materials are loaded. Under the effect of strong air stream and rotating agitator, wet materials are perfectly fluidized. Moisture evaporates very fast because of thorough contact and heat transfer between hot air and wet material. At the top of the dryer, bag filter is installed to separate fine particles from the exhausted damp air.
|  |
1) Robust drying chamber: The drying chamber is made by SUS304 or SUS316L steel plate, fully welded and mirror polished. The design is robust, simple and compact which requires minimum maintenance.
2) Fast and uniform drying: Due to the specially designed drying bowl and agitator, wet material can be perfectly fluidized to make sure fast and uniform drying.
3) Flexibility in heat source: The heat source can be steam, hot water, electricity, thermal oil, oil/gas/coal/biomass fired hot air generator to match with different working conditions.
4) Flexibility in drying: The dryer works in batch type so that drying time can be easily controlled. It can be used to dry materials with different moisture content and moisture type.
5) GMP design: The drying chamber is fully welded, mirror polished without dead corners for cleaning to meet GMP standard.

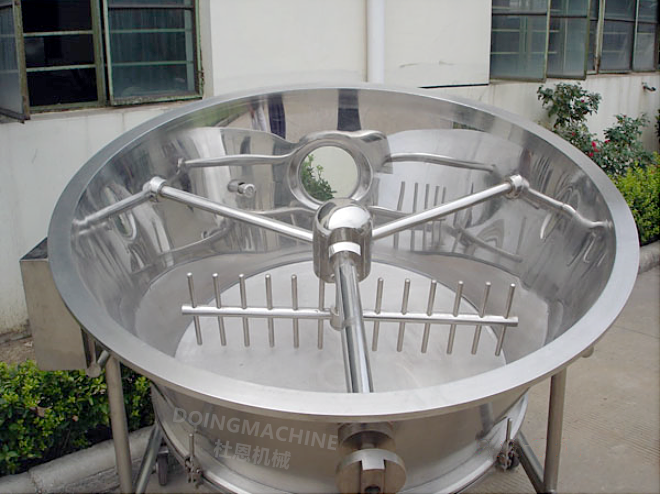

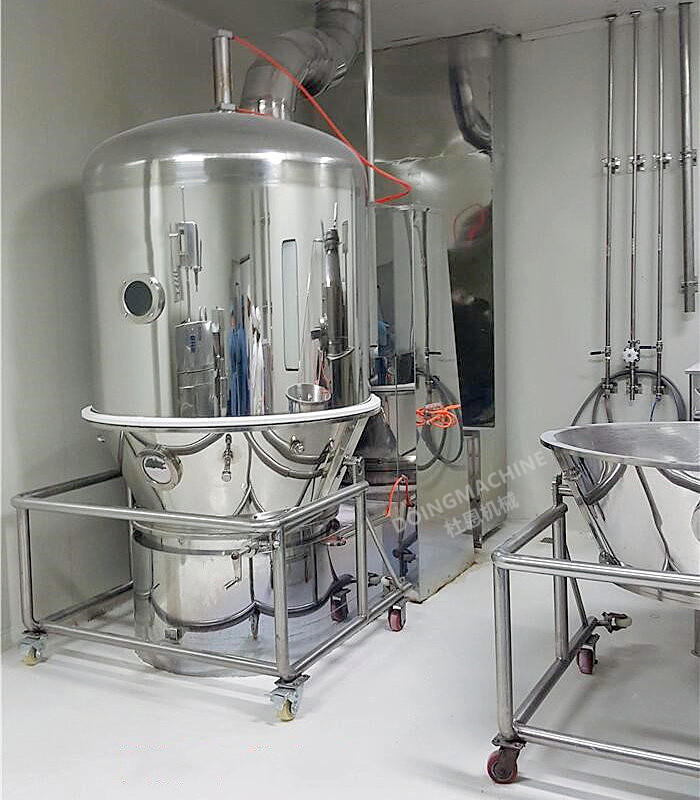

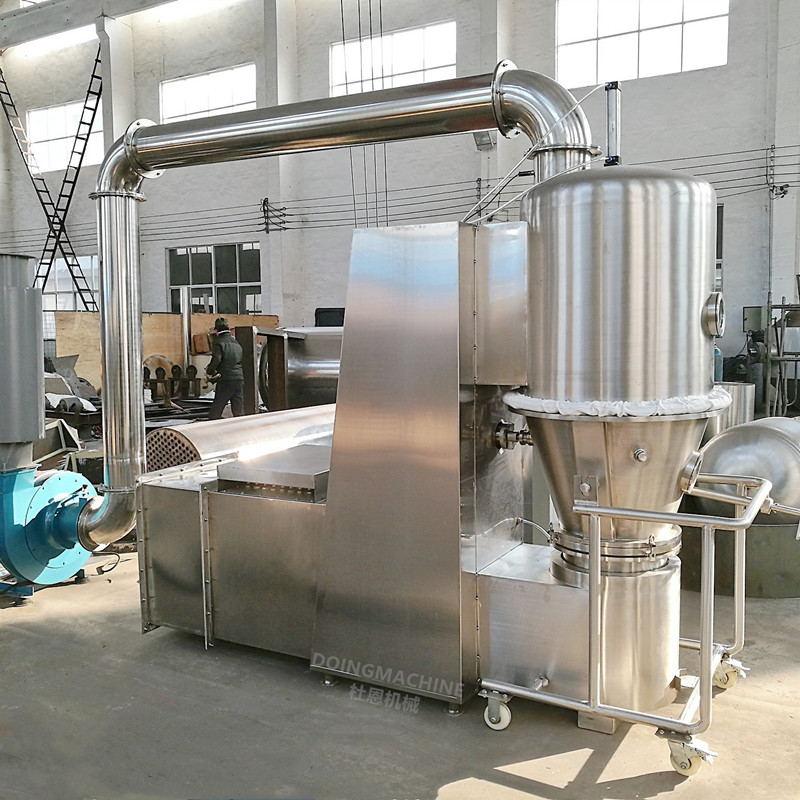

 Agitator inside drying bowl |  GFG-120 fluid bed dryer |

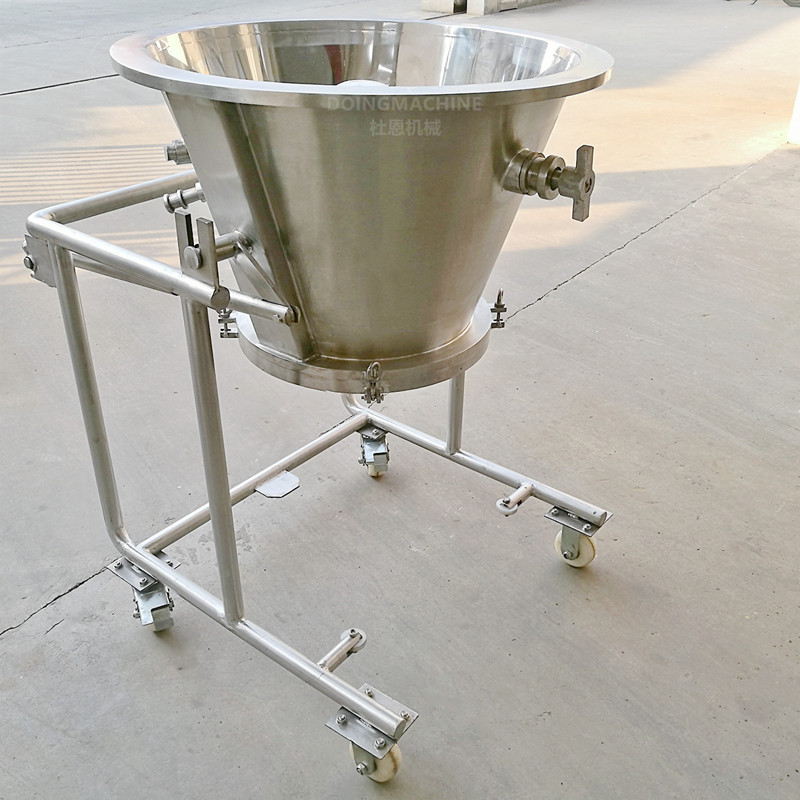

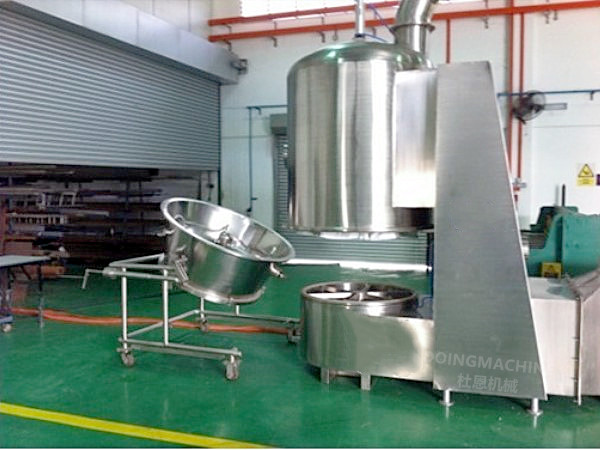

 Drying bowl with trolley |  GFG-30 fluid bed dryer with electrical heater |

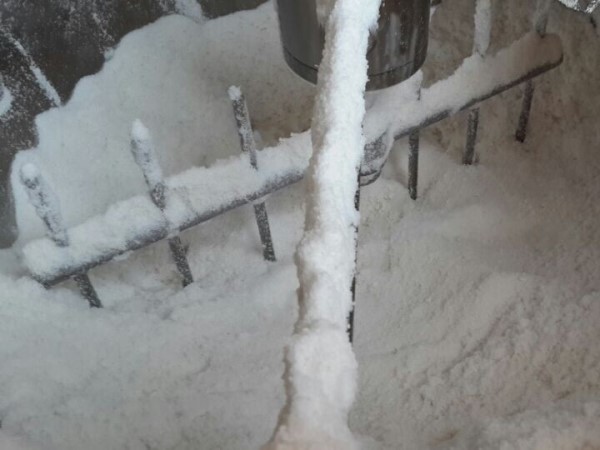

Desiccated coconut |  Extrudate |  Chemical Powder |
A: Our fluid bed dryer can be customerized. Before we can work out a detailed quotation, we have to know the following information:
1) What product you are going to dry
2) Moisture content before drying
3) Target moisture content in dried product
4) Process capacity in kg/batch
5) What heat source you plan to use
A: The dryer is packed in plywood box for shipping
A: We have the following standard models:
| Model | GFG-60 | GFG-120 | GFG-200 | GFG-300 |
| Volume of drying bowl ( L ) | 220 | 420 | 670 | 1000 |
| Diameter (mm) | 1000 | 1200 | 1400 | 1600 |
| load capacity (kg/batch) | 60 | 120 | 200 | 300 |
| Exhaust fan (KW) | 7.5 | 11 | 22 | 30 |
| Agitator power (KW) | 0.55 | 1.1 | 1.5 | 2.2 |
| Agitator speed (RPM) | 11 | 11 | 11 | 11 |
| Steam consumption (kg/h) | 140 | 210 | 282 | 366 |
| Drying time (min) | 30-60 | 30-60 | 30-60 | 30-60 |
| Dimension (L x W x H mm) | 2676x2366x240 | 2862x2552x2540 | 3014x2704x2840 | 3300x2800x2940 |
