| Quantity: | |
|---|---|
1. For drying, mixing and condensation process of granulated plastics
2. Drying Chamber volume:100-5000L
3. High temperature design
4. Heat supply can be steam or hot oil.

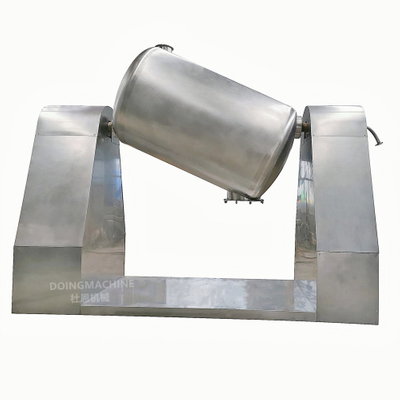

SZG series vacuum tumble dryer reactor is an indirect heating batch type drying processor. The cylindrical drying chamber has heating jacket which can be filled with hot water, steam or thermal oil. During the operation, vacuum condition is created by vacuum pump and wet material flows alongside the heated interior surface with the rotation of drying chamber. Heat transfer happens between wet material and heated surface of drying chamber. The evaporated moisture is sucked out by vacuum pump. If the evaporated moisture needs to be recovered, condenser and buffer tank can be equipped.
SZG series vacuum tumble dryers reactors are designed mainly for drying, mixing and condensation process of granulated plastics: chips, beads, slices, pellets, scraps etc.
1) Multi-functional: The central body is a skewed cylindrical chamber which can rotates with different speed and direction. Except drying or extracting solvents, it also can be used as an effective fast blender or homogenizer.
2) Safety operation: The high vacuum drying eliminates oxygen which prevents formation of unwanted secondary compounds or potential exposion.
3) Uniform drying: The gentle and continuous mixing ensure the final blend is uniform in terms of both viscosity and residual moisture.
4) High efficinet mixing: Different type of guide-plate can be welded onto the interior drying chamber to ensure fast and uniform mixing.
5) Effective filtering system: The three-head filtering unit can perfectly filter out the powder and just let solvent vapors go through with very low pressure drop.
6) Easy-operation: Vacuum conveyor or screw conveyor can be equipped for automatic feeding and discharging.

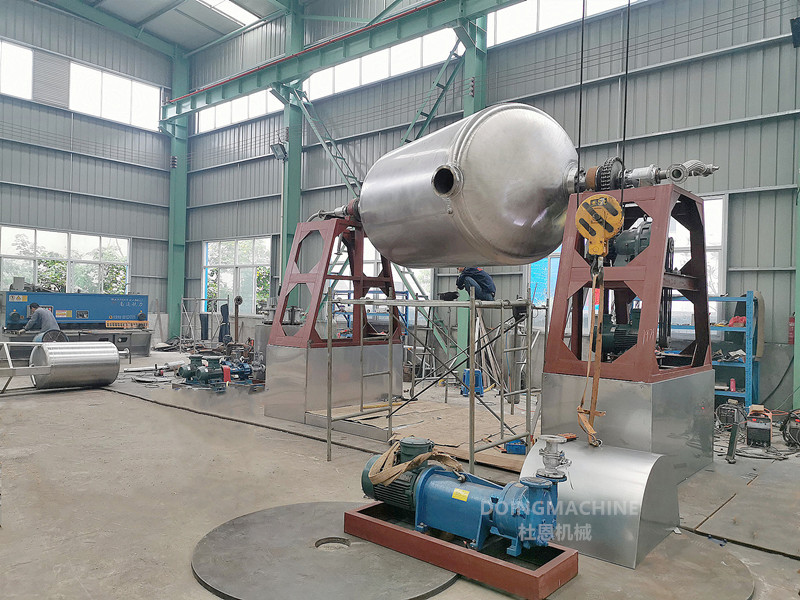

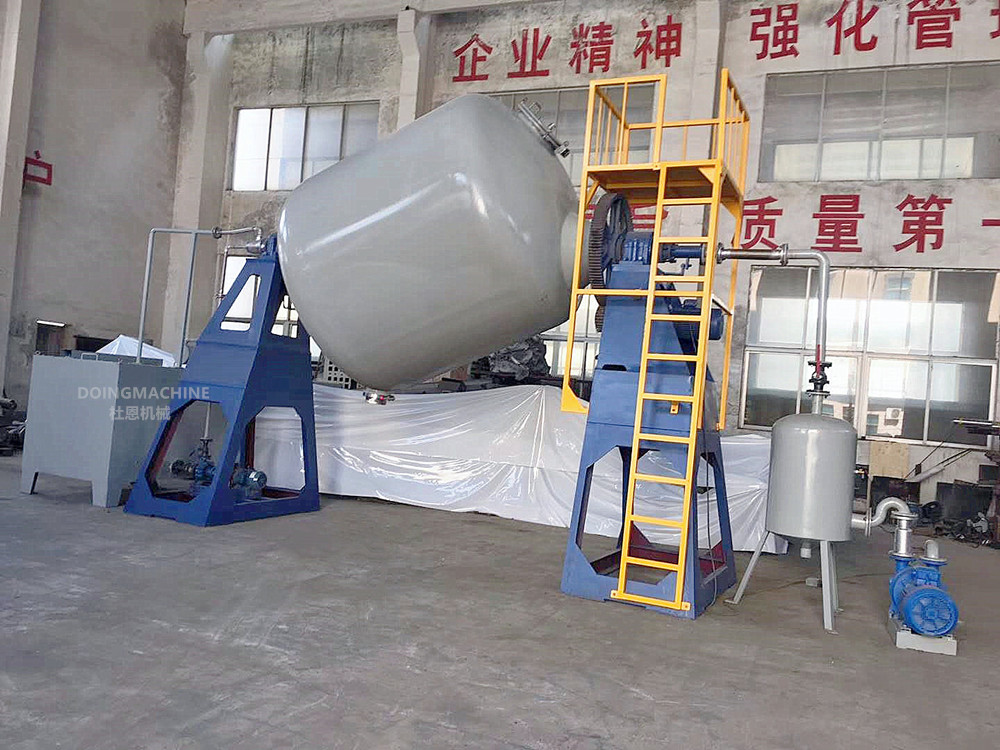

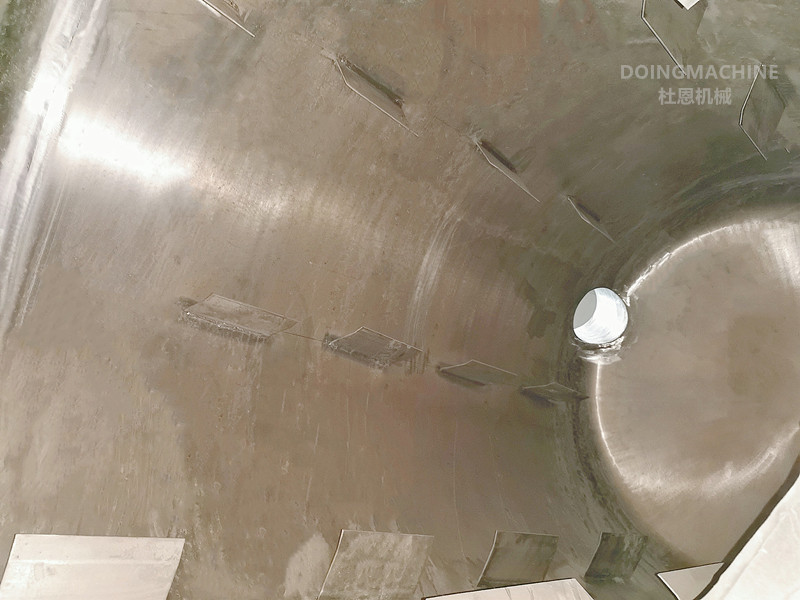

 Mixing paddles |  Drive system |
 Resin powder |  Plastic granules |  PET flakes |
Q: What information should be provided in order to get a proposal or quotation?
A: Our vacuum tumble dryer can be customerized. Before we can work out a detailed quotation, we have to know the following information:
1) What raw material are you going to dry?
2) Moisture content before drying? Target moisture content of dried powder?
3) Moisture type? water or other solvents?
4) Your recommended drying temperature?
5) Heat souce? Steam or thermal oil ?
6) Construction material ?
Q: How the dryer will be delivered ?
A: Drying chamber is fixed in a steel frame and then loaded into container. When drying chamber volume is more than 2500L, it can't fit into normal container for shipping.
Q: Do you provide free drying test?
A: Yes. We have pilot plant for free drying test.
Q: What standard models do you have?
A: We have the following standard models with main specifications:
| Model | SZG-100 | SZG-500 | SZG-1000 | SZG-2000 | SZG-3000 | SZG-5000 |
| Chamber volume L | 100 | 500 | 1000 | 2000 | 3000 | 5000 |
| Working volume L | 50 | 250 | 500 | 1000 | 1500 | 2500 |
| Heating area M2 | 1.16 | 2.63 | 4.61 | 7.5 | 11.2 | 14.1 |
| Rotation speed RPM | 4-6 | |||||
| Motor power KW | 0.75 | 1.5 | 3 | 4 | 5.5 | 11 |
| Dimension L x H mm | 2160x800 | 2350x800 | 2860x1300 | 3260x1400 | 3760x1800 | 4400x2500 |
| Rotation height mm | 1750 | 2250 | 2800 | 2990 | 3490 | 4200 |
| Design pressure Mpa | -0.1-0.15 | |||||
| Jacket pressure Mpa | ≤ 0.3 | |||||
| Working temp. ℃ | Max 250 ℃ | |||||
| Weight KG | 800 | 1200 | 2800 | 3600 | 6400 | 8600 |
