Hot Air Tray Dryer

CT-C series hot air tray dryer is the most often used convection chamber dryer. Inside the drying chamber, trays loaded with wet material are placed on top of each other in trolleys.
Availability:
Quantity:
Overview


1. For drying or heating liquid, slurry, paste, cake, powder, granule or sliced materials in various kinds of industries

2. Drying temperature: RT-300 degree C (adjustable)
3. Tray quantity: 12-192 trays
4. GMP design is available
5. Heat source can be steam, electricity, hot water, hot oil or gas/oil/coal/boimass fired hot air generator


Product Description


CT-C series hot air circulation tray dryer is the most often used convection chamber dryer. Inside the drying chamber, trays loaded with wet material are placed on top of each other in trolleys.


In drying process, fresh cold air is sucked into the drying chamber via the circulation fan and flows through the steam radiator or electrical heating tubes installed in the top to get required temperature. With the help of air distributor, hot air evenly flows through each layer of trays for heat transfer and carries way the evaporated moisture. Most of the damp air flows back to the circulation fan for circulation while part of the damp air is exhausted. The drying process is batch operation. After the drying is finished, open the chamber door and pull out the trolleys for unloading the dried product.



CT-C series hot air circulation tray dryer can be used for drying or heating almost all kinds of wet materials, such as liquid, slurry, paste, cake, powder, granule or sliced materials in almost all kinds of industries.


QQ图片20210712110821

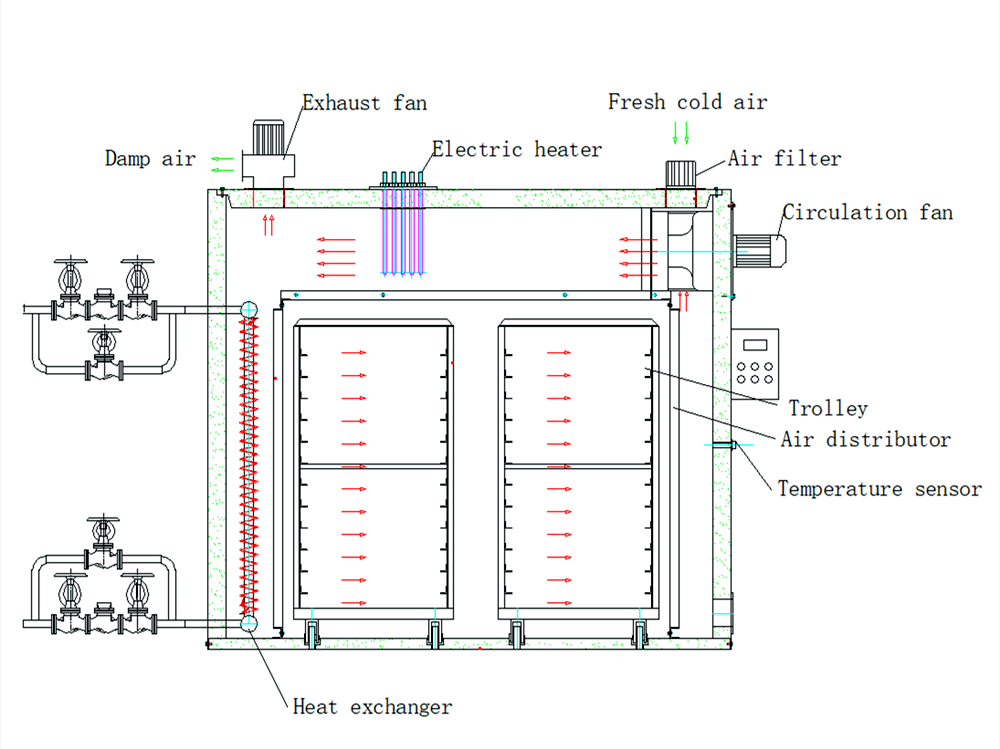

SY-6


Technical Features


1. Robust drying chamber: The drying chamber is made by SUS304 or SUS316L steel plate, fully welded and mirror polished. The design is robust, simple and compact which requires minimum maintenance.

2. Uniform drying: Due to the specially designed air distributor, the hot air flow in each layer of trays is very uniform. The temperature difference inside the drying chamber is less than ±2 ℃.

3. Energy saving:  Most of the hot air circulates inside the well insulated drying chamber and only part of it is exhausted via the exhaust valve.  The amount of exhaust air is adjustable according to different drying conditions.

4. Flexibility in heat source: The heat source can be steam, hot water, electricity, thermal oil, oil/gas/coal/biomass fired hot air generator to match with different working conditions.

5. Flexibility in drying: Standard sized (640x460x45mm) but different types of trays are available for different kinds of wet materials.

6. Convenient operation: Control cabinet is installed on drying chamber which can accurately control and set drying temperature and hot air flow rate.

7. GMP design: The drying chamber is fully welded, mirror polished without dead corners for cleaning to meet GMP standard.


tray-1

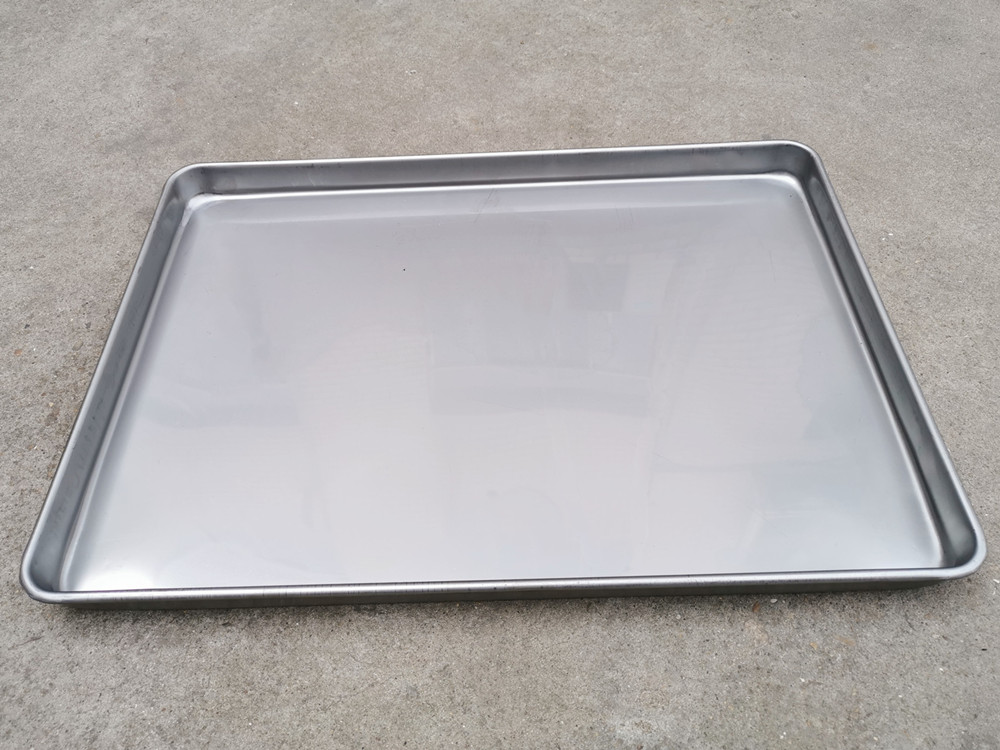

Standard tray


tray-3

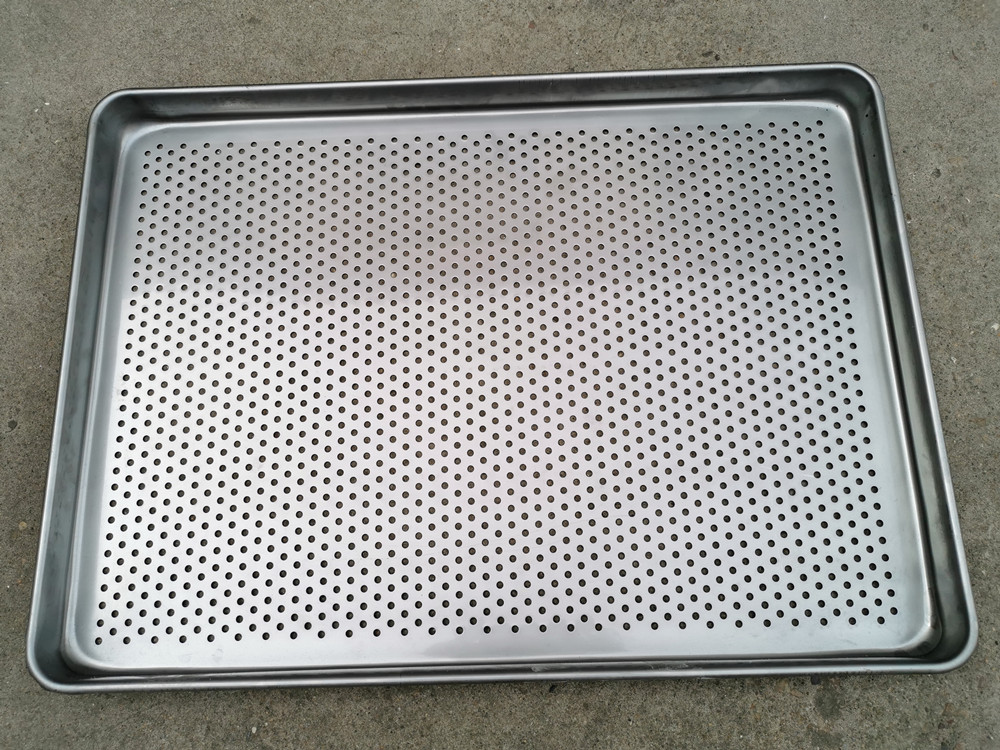

Tray with holes


tray-2

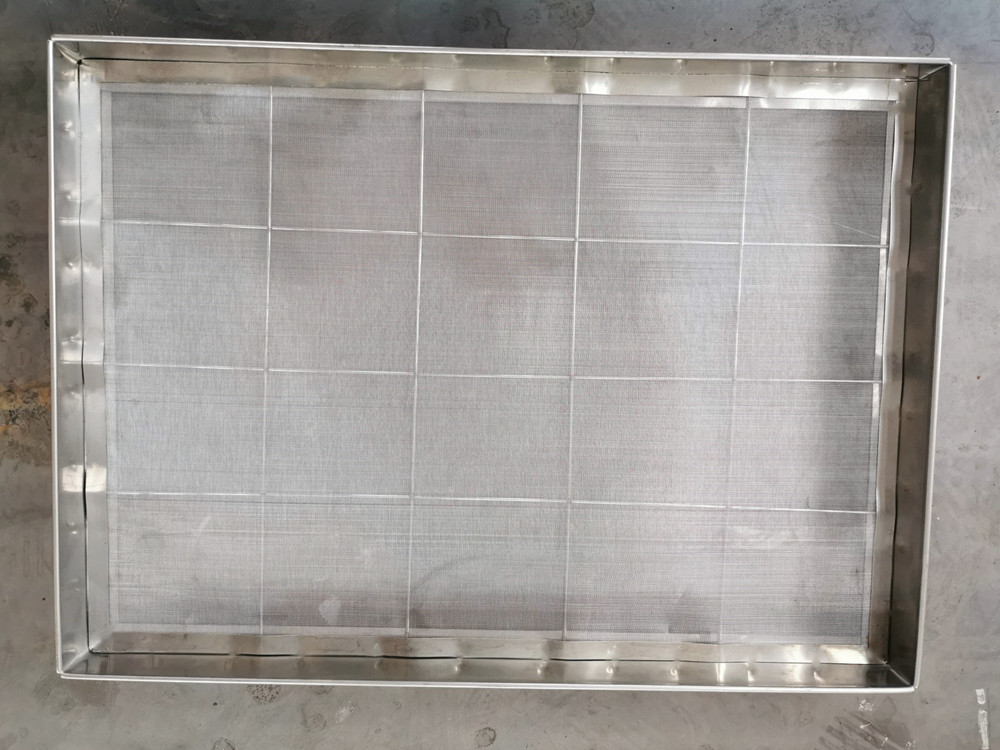

Mesh tray


SY-8

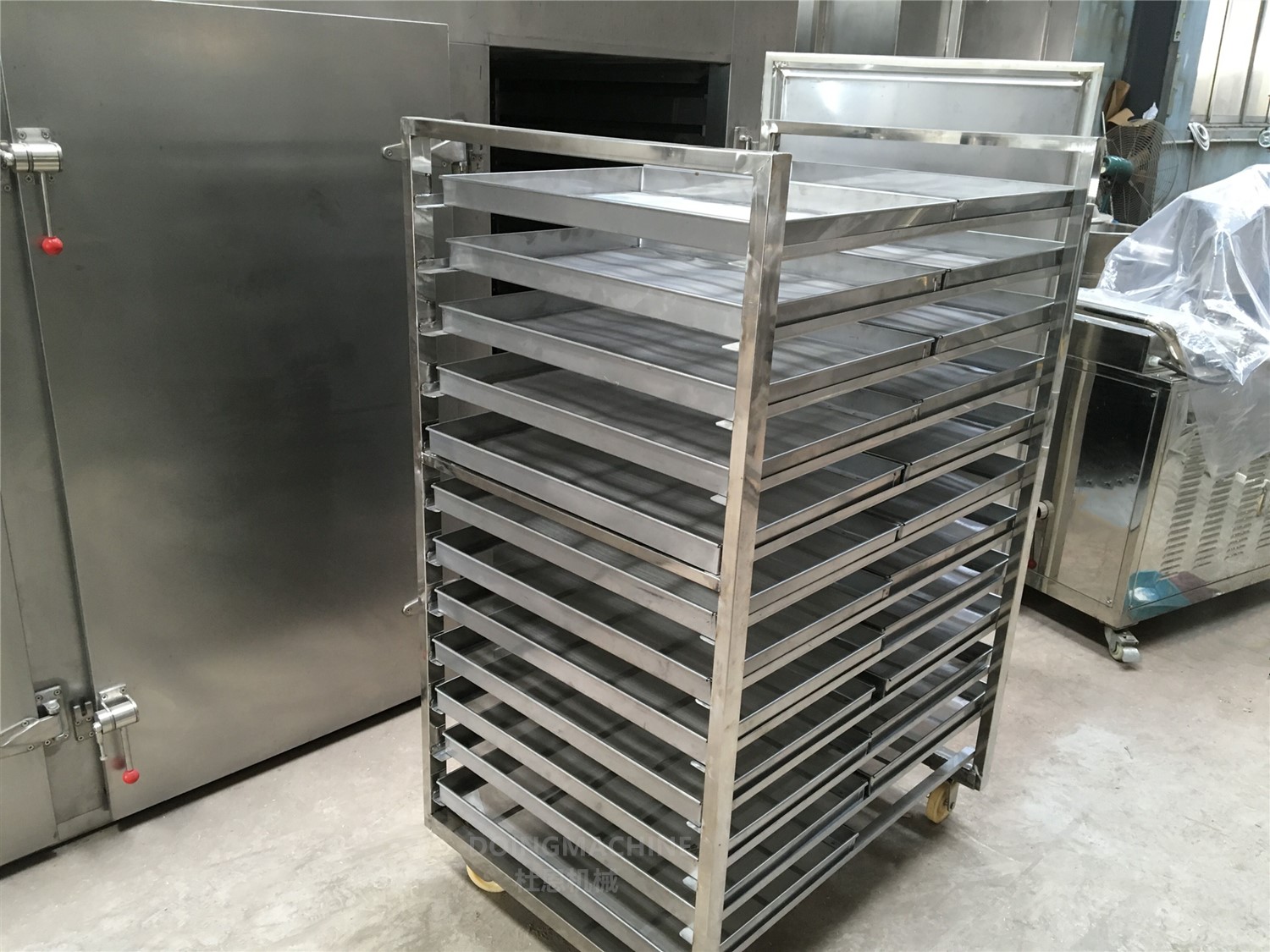

Trolley


600-8

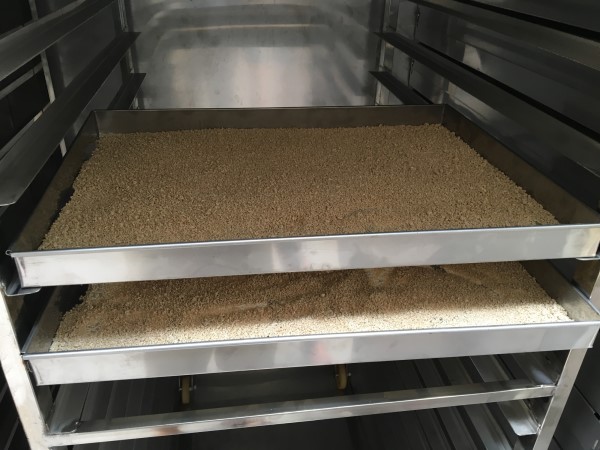

Dying chamber inside


12

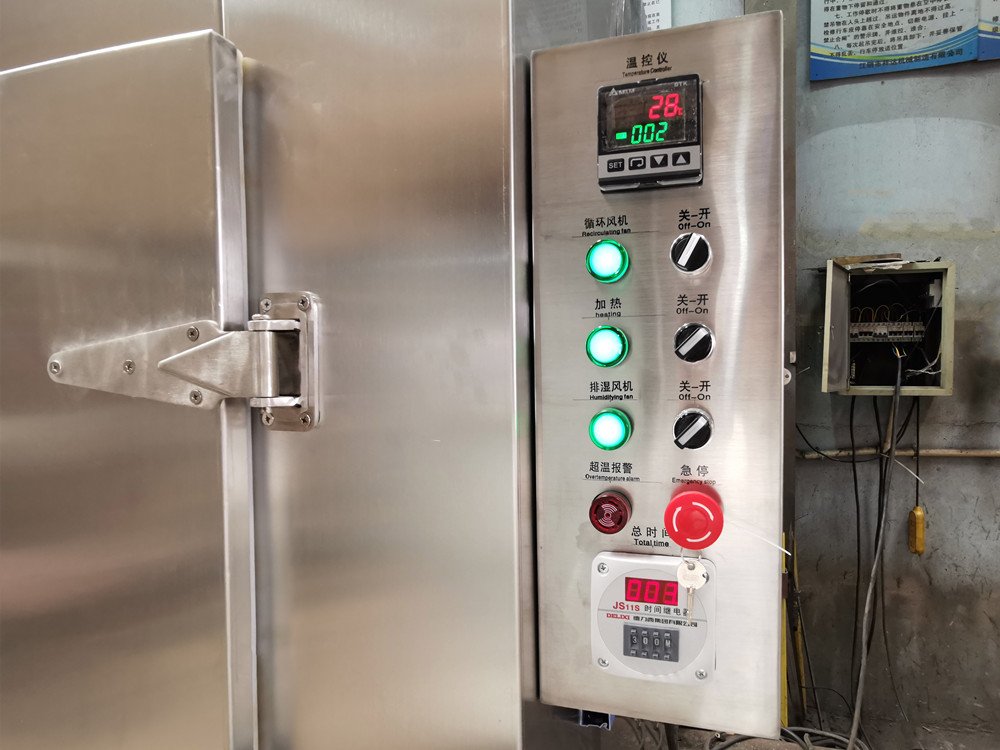

Dryer door & cabinet


Typical Applications
600-10

Fruits & vegetables


600-12

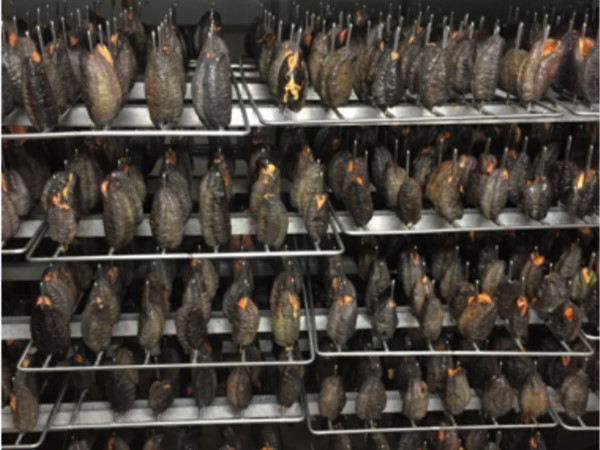

Sea cucumber


1_副本

Chemicals

FAQ

Q: What information should be provided in order to get a proposal or quotation?

A: Our tray dryer can be customerized. Before we can work out a detailed quotation, we have to know the following information:


1) What product you are going to dry

2) Moisture content before drying

3) Target moisture content in dried product

4) Process capacity in kg/batch

5) What heat source you plan to use


Q: How the dryer will be delivered ?

A: The dryer is packed in plywood box for shipping


Q: What standard models do you have?

A: We have the following standard models:


Model CT-C-O CT-C-I CT-C-II CT-C-III
Equipped tray  24 48 96 144
Equipped trolley  1 2 4 6
load capacity kg/batch  60 120 240 360
Fan power KW 0.45 0.45 0.9 1.35
Steam radiator  M2 10 20 40 80
Steam consumption kg/h 10 18 36 54
Air flow rate M3/h  3450 3450 6900 10350
Temp. difference  ℃ ±2 ±2 ±2 ±2
Dimension L x W x H mm 1400x1200x2000 2300x1200x2000 2300x2200x2000 2300x3220x2000
