Corn Rice Turbo Mill Pulverizer

Views: 7     Author: Stone Chen     Publish Time: 2021-10-16      Origin: Site

WF series turbo mill pulverizer is a compact, high speed impact mill capable of coarse to fine size reduction for brittle, low oily and heat sensitive materials.


Material is fed into the grinding chamber via the central inlet by gravity or screw feeder. High speed rotation of the turbo rotor creates centrifugal force that accelerates bulk material moving from the center to the periphery of the turbo at high speed, where size reduction is done by strong impact and shearing between turbo beaters and inner teeth liner. The strong air stream generated by turbo rotor and draft fan forces the product go through a filtering sieve which is around the grinding chamber to get required particle size.


WF turbo mill pulverizer has been commonly used for coarse to fine grinding of soft to medium hard, brittle, crystalline even sticky, low-oily and heat sensitive materials in food, chemical and pharmaceutical industry.

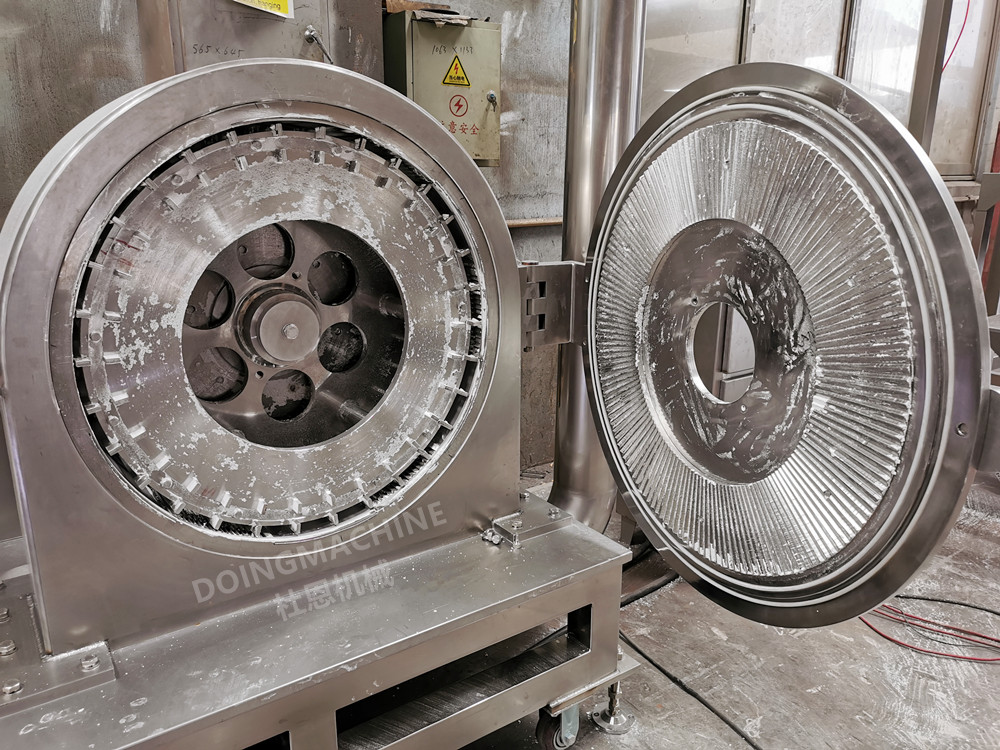

S-6

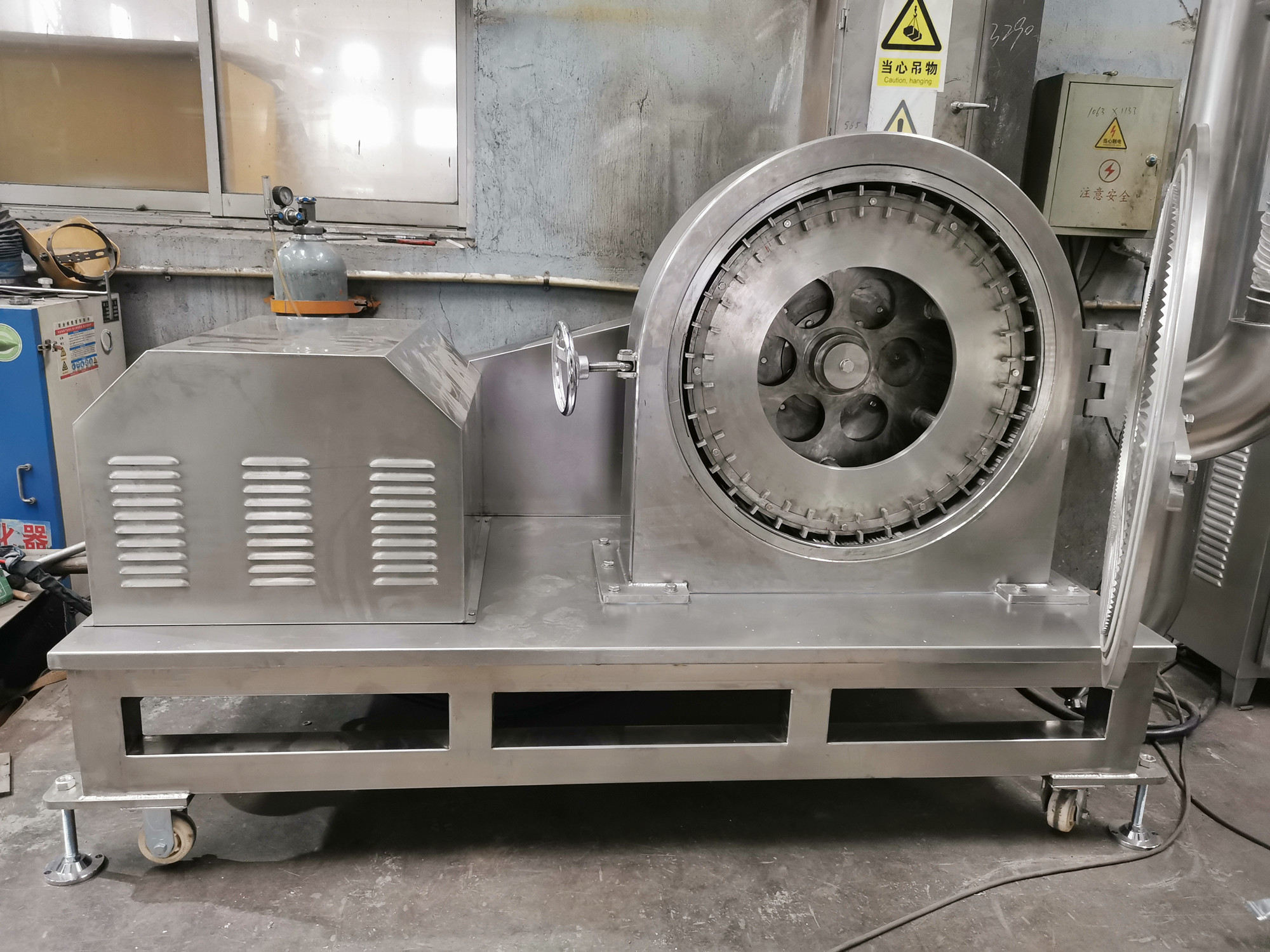

Grinding unit-1


Grinding unit

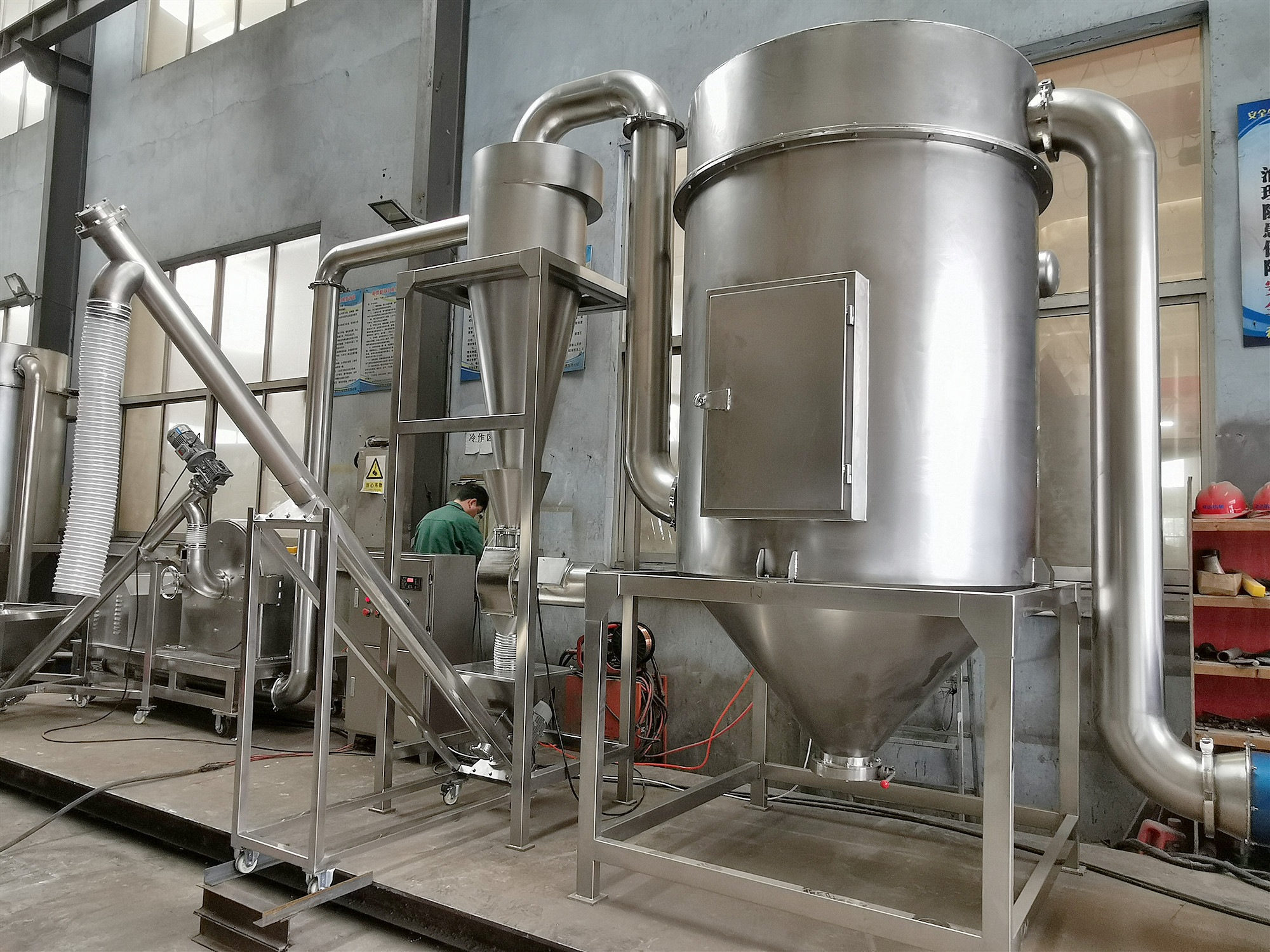

IMG_20200509_142300_副本
