1. Continuously drying of viscous, pasty and sticky materials in food, chemical and pharmaceutical industry;
2. Heating area: 1.12-21.2 M2
3. Evaporation capacity: 6-150 kg water/hour
4. Feeding type: top or bottom feeding
5. Heat source: steam or hot water

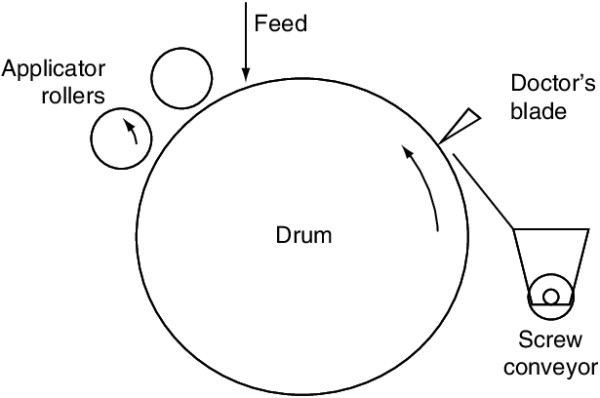

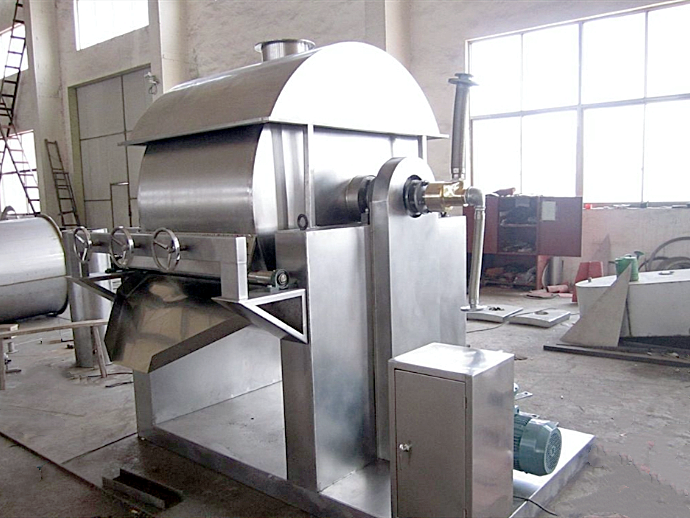

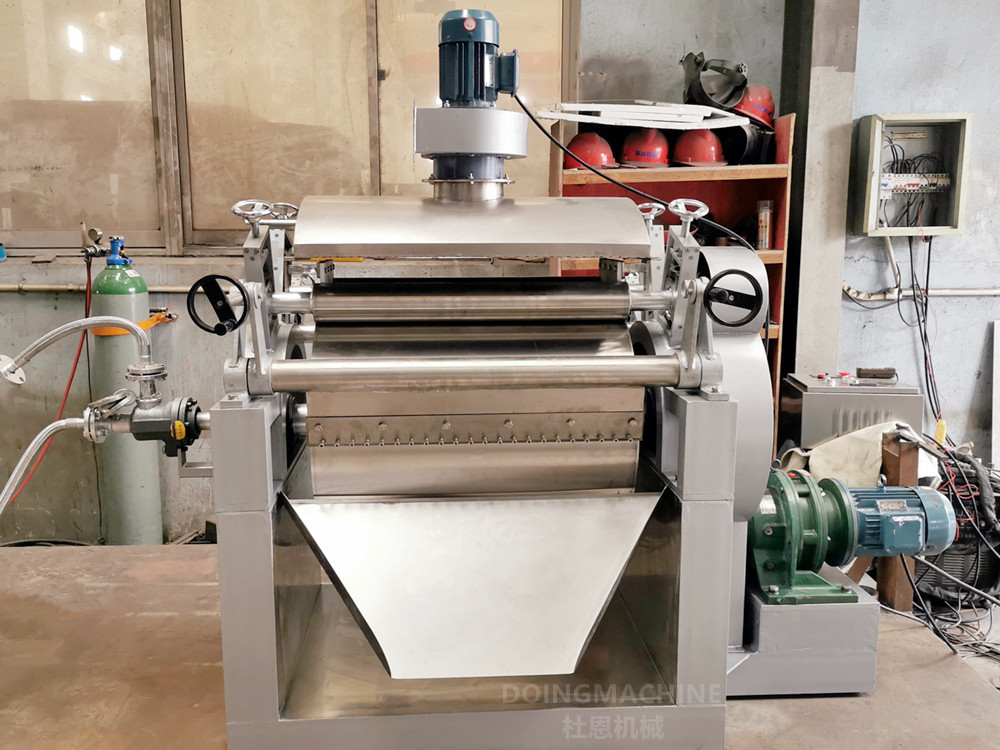

HG series rotary scraper drum dryer is a continuous indirect-heating drying processor. The dryer body consists of rotary drum heated by steam, applicator rollers, scrapper and exhaust hood. Liquid raw meterials are fed onto the rotary drum from the top or from the bottom tray. With the kneading effect of applicator system, raw materials are evenly spread onto the heated surface of rotary drum. Moisture evaporates very quickly. Drying process is done within a single rotation of the drum and the dried product is scrapped off with the knife.
HG series drum dryer with its continuous indirect drying method, allows short heat retention time while evaporating all the liquid within a single rotation of the drum. It not only virtually eliminates the risk of damaging the product but also enables the product to keep its unique properties like taste, smell, texture etc. Drum dryer is unique for drying viscous, pasty and sticky materials in food, chemical and pharmaceutical industries.
 |  |
|

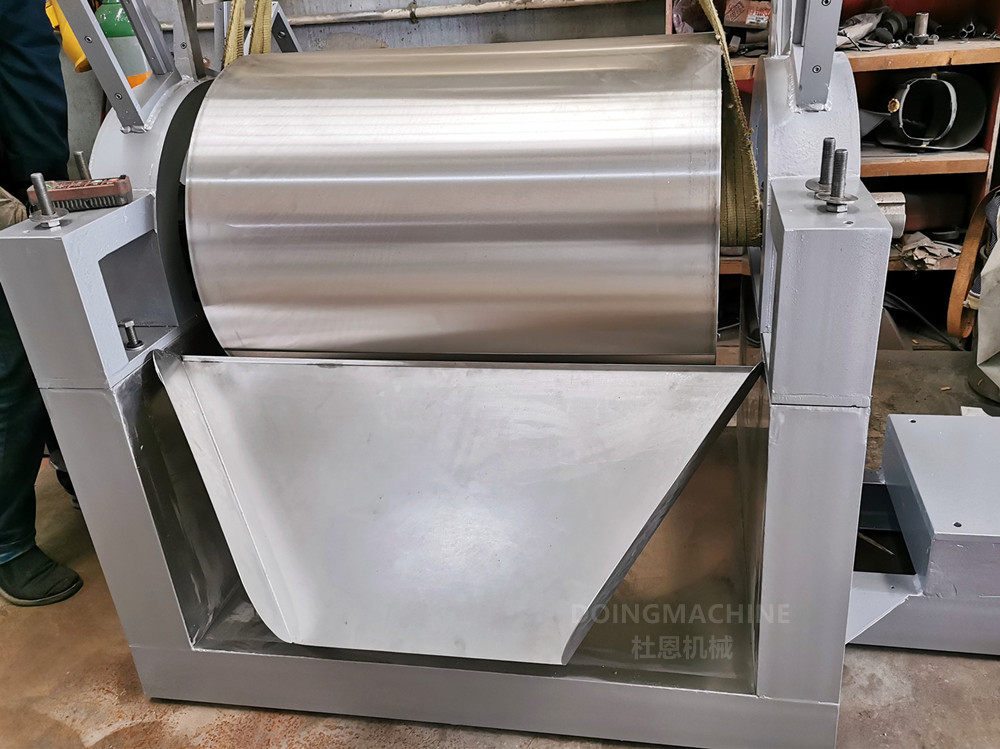

 Single drum top feeding |

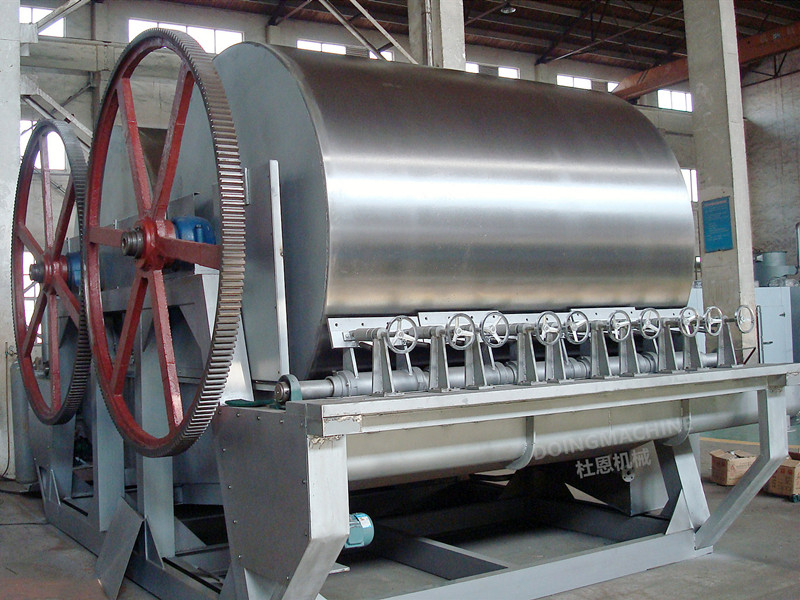

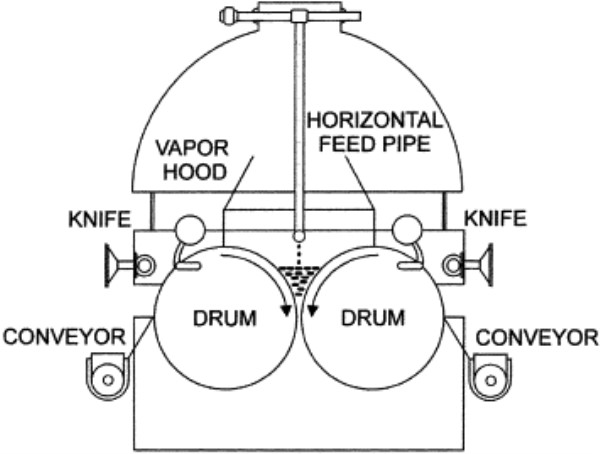

Single drum bottom feeding |  Double drum dryer |
1) High heat efficiency: Heat loss is mainly caused thermal radiation. Heat efficiency can be as high as 90%.
2) Short drying time: The drying process only takes 10-15 seconds. So drum dryer can be used for drying heat sensitive material.
3) Uniform drying: Heat transfer direction and coefficient all over the drum surface are the same. And wet material can be evenly spread over the drum surface. Wet material can be uniformly dried.
4) Long life span: Rotary drum is electro-polished and well heat treated to increase the smoothness and hardness.
5) Flexible application: Drum surface temperature, rotating speed, wet material film thickness are all adjustable to satisfy materials with different moisture and drying time.
6) Compact size: The drying chamber is very compact in size. Only need small installation space.
7) Low operation cost: The whole machine is very simple and reliable. It can be used for many years with little repair and maintenance.
8) Highest hygienic standard: Indirect heating and electro-polished drum surface can assure highest hygienic working conditions.

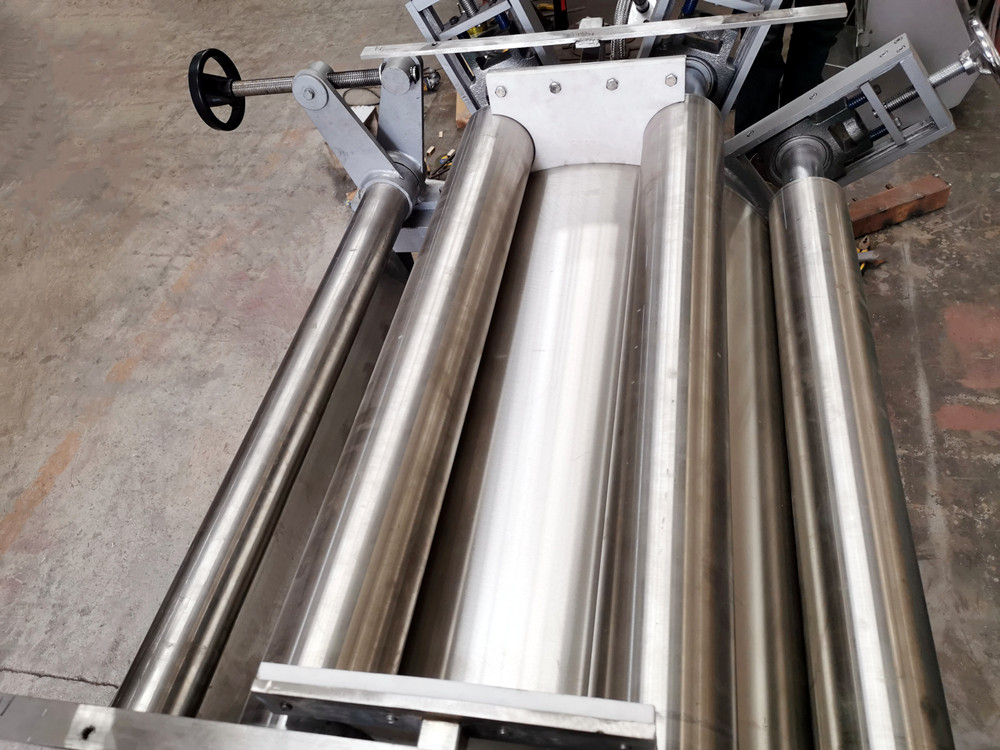

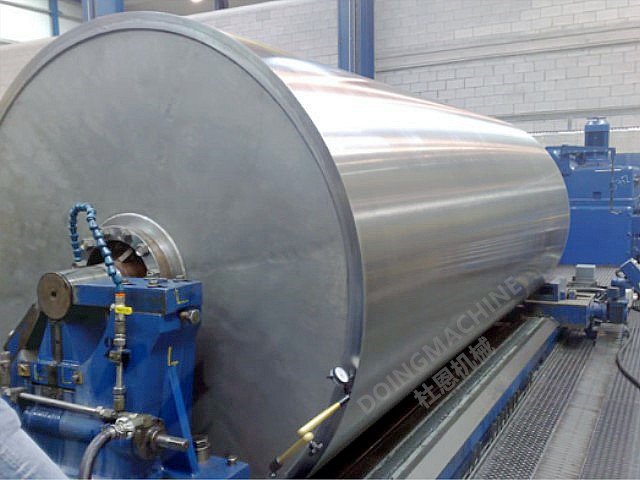

 Rotary drum (electro-polished) |  Applicator rollers |
Roller tightener
Vapor exhaust hood
 Scrapper |  Dried flaker |
 Yeast |  Fish feed |  Sweet patato |
A: Our rotary scraper drum dryer can be specially designed for each customer according to specific material and capacity. Before we can work out a detailed proposal or quotation, we have to know the following information:
1) What wet material you are going to dry
2) Moisture content before drying
3) Final moisture content in dried product
4) Drying capacity in kg/h
5) What heat source you are going to use
6) Recommended drying temperature
A: The machine is packed in wooden boxes for shipping
Q: What kind of after sale service you can provide?
A: We have professional after sale service team who can reach you in short notice. They can supervise the installation, do commissioning and train your workers.
A: We have the following standard models:
| Model | HG-600 | HG-800 | HG-1000 | HG-1200 | HG-1600 |
| Drum size mm | Φ600x800 | Φ800x1200 | Φ1000x1400 | Φ1200x1500 | Φ1600x1800 |
| Heating area M2 | 1.12 | 2.26 | 3.3 | 4.24 | 6.79 |
| Evaporation rate kg/hr | 40-70 | 90-130 | 130-190 | 160-250 | 270-400 |
| Steam consumption kg/hr | 100-175 | 225-325 | 325-475 | 400-625 | 675-1000 |
| Motor power KW | 1.1 | 3.75 | 4.75 | 4.75 | 6.25 |
| Installation dimension (mm) | 1700x800x1500 | 2500x1100x1980 | 2700x1300x2250 | 2800x1500x2450 | 3350x1900x3150 |
| Gross weight (kg) | 850 | 1700 | 2100 | 2650 | 4350 |
