Availability: | |
---|---|
Quantity: | |
1. Drying or heating paste, filter cake or powder materials under normal or high vacuum condition;
2. Heating area: 3-200 M2
3. Drying capacity: 300-15000 L/batch
4. Working type: Batch or continuous
5. Heat source: steam, hot water or hot oil
4) Moisture is organic solution and need to be recovered

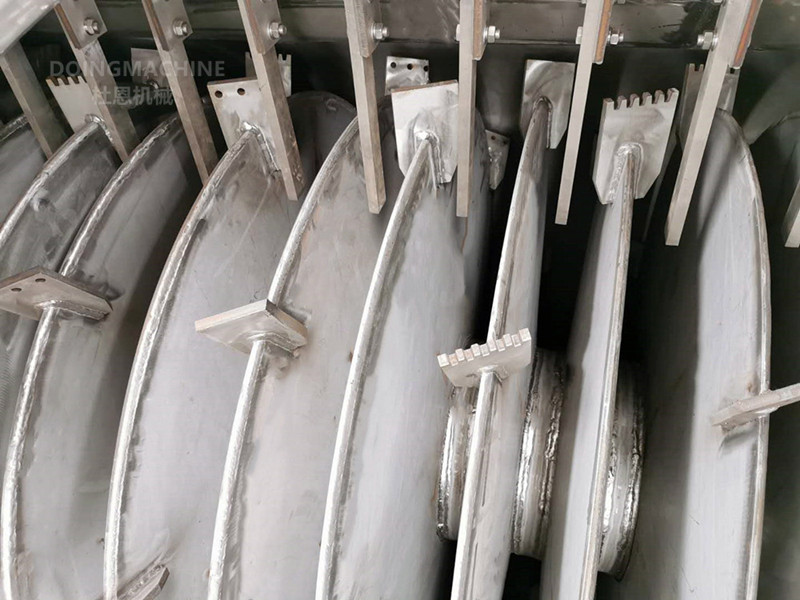

Hollow disc 1) Considerably increase heating surface | Drying chamber with tubular heating jacket 1) Max working pressure of heating jacket: 0.9 Mpa 2) Max vacuum of drying chamber: 300 Pa3) Tubular heating jacket can ensure very uniform heating 4) 80mm mineral wool insulation |
Integral bearing seat 1) Bearing seat mounted on end-plate to ensure concentricity 2) Bearing is equipped with water cooling jacket 3) Double-end mechanical seal to ensure high vacuum | Vacuum system The vacuum system consists of two-stage tubular condenser, buffer tank and piston vacuum pump or pump set to guarantee high vacuum (300-2000 Pa) and recovering rate (95%) |
Fish meal drying in Poland | Industrial sludge drying in China | Okara drying in Canada |
A: Each rotary vacuum paddle dryer is specially designed for each customer according to specific wet material, capacity, drying temperature and heat mediums. Before we can work out a detailed proposal or quotation, we have to know the following information:
1) Detailed information of wet material are you going to dry. We may ask you to provide composition report or samples to do drying test.
2) Type of moisture. Water or organic solvents?
3) Initial moisture content before drying
4) Required moisture content in dried product
5) Drying capacity in kg/h
6) Heat medium to be used for drying. Such as steam, thermal oil or hot water
A: Rotary vacuum paddle dryer is very heavy and its weight ranges from 3 tons to 50 tons. When the heating area is less than 60 M2, the dryer body can be shipped by 40 feet HQ container; 60-100 M2 can be shipped by 40 feet OT container; more than 100 M2, the dryer body should be dismantled for shipping.
A: We have professional after sale service team who can reach you in short notice. They can supervise the installation, do commissioning and train your workers.
1. Drying or heating paste, filter cake or powder materials under normal or high vacuum condition;
2. Heating area: 3-200 M2
3. Drying capacity: 300-15000 L/batch
4. Working type: Batch or continuous
5. Heat source: steam, hot water or hot oil
4) Moisture is organic solution and need to be recovered
Hollow disc 1) Considerably increase heating surface | Drying chamber with tubular heating jacket 1) Max working pressure of heating jacket: 0.9 Mpa 2) Max vacuum of drying chamber: 300 Pa3) Tubular heating jacket can ensure very uniform heating 4) 80mm mineral wool insulation |
Integral bearing seat 1) Bearing seat mounted on end-plate to ensure concentricity 2) Bearing is equipped with water cooling jacket 3) Double-end mechanical seal to ensure high vacuum | Vacuum system The vacuum system consists of two-stage tubular condenser, buffer tank and piston vacuum pump or pump set to guarantee high vacuum (300-2000 Pa) and recovering rate (95%) |
Fish meal drying in Poland | Industrial sludge drying in China | Okara drying in Canada |
A: Each rotary vacuum paddle dryer is specially designed for each customer according to specific wet material, capacity, drying temperature and heat mediums. Before we can work out a detailed proposal or quotation, we have to know the following information:
1) Detailed information of wet material are you going to dry. We may ask you to provide composition report or samples to do drying test.
2) Type of moisture. Water or organic solvents?
3) Initial moisture content before drying
4) Required moisture content in dried product
5) Drying capacity in kg/h
6) Heat medium to be used for drying. Such as steam, thermal oil or hot water
A: Rotary vacuum paddle dryer is very heavy and its weight ranges from 3 tons to 50 tons. When the heating area is less than 60 M2, the dryer body can be shipped by 40 feet HQ container; 60-100 M2 can be shipped by 40 feet OT container; more than 100 M2, the dryer body should be dismantled for shipping.
A: We have professional after sale service team who can reach you in short notice. They can supervise the installation, do commissioning and train your workers.
