1. For drying or cooling of granular wet materials(1-20mm);
2. Drying belt area: 10-150 M2
3. Drying temperature: 60-180 degree C
4. Operation type: continuous
5. Heat source: steam, hot water, hot oil or oil/gas/coal/biomass hot air generator
6. Different types of air flow pattern, belt layer (1-5 layers) and mesh belt can be designed according to specific material
DW series conveyor mesh belt dryer is a continuous convective drying processor of which the drying of product takes place on ventilated conveyor belts. After evenly fed onto the top layer belt via the feeding system, raw material is transported to the other end of drying chamber and then drops onto the beneath belt, which carries the raw material and moves in the opposite direction until drops onto the bottom belt. At the same time, hot air is evenly blown into the drying chamber via the bottom air distributor. With the help of draft fan, hot air evenly flow through the raw material on each layer of belt for uniform drying.
Different types of hot air flow parttern, belt layer (1-5 layers) and mesh belt can be designed according to specific raw material and drying condition to achieve ideal drying efficiency.

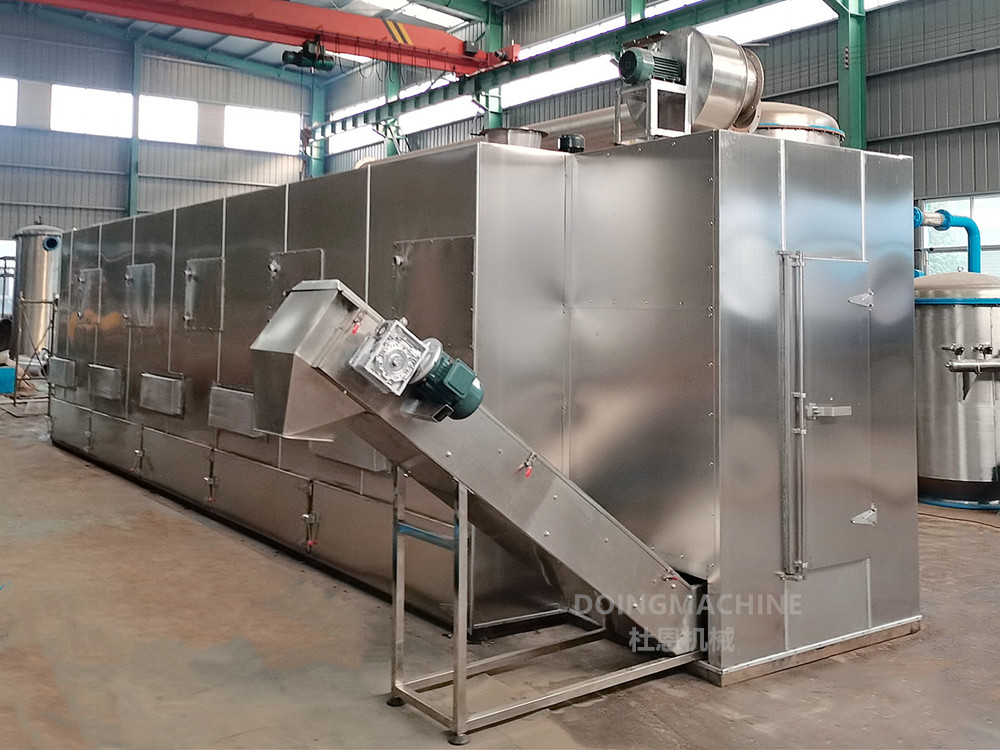

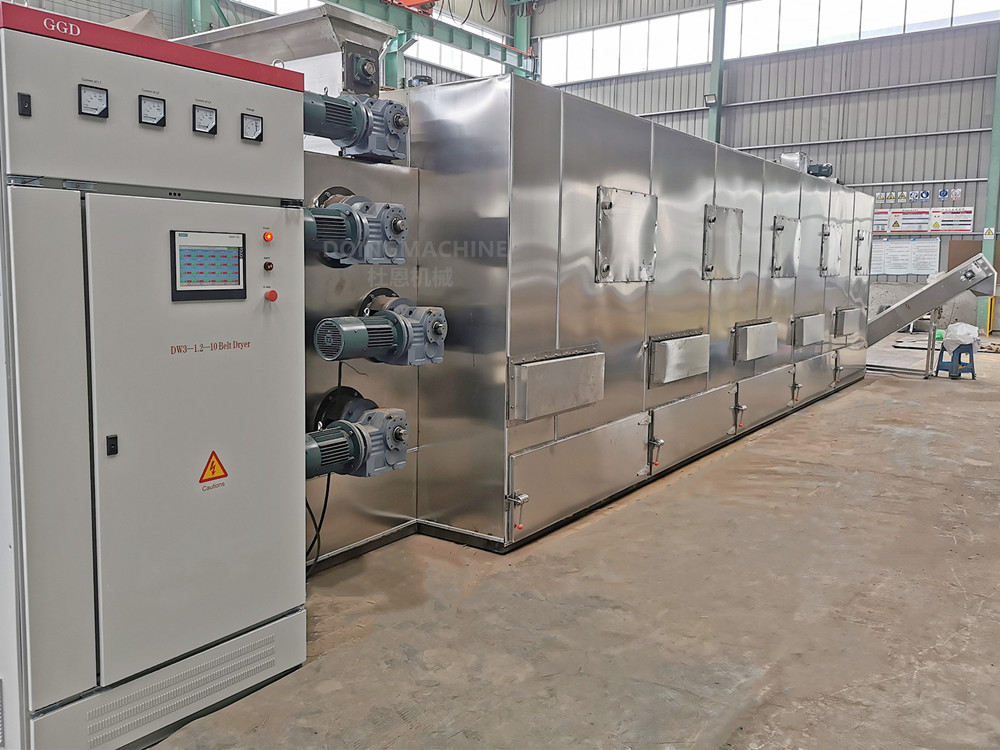

Multi-layer belt dryer |

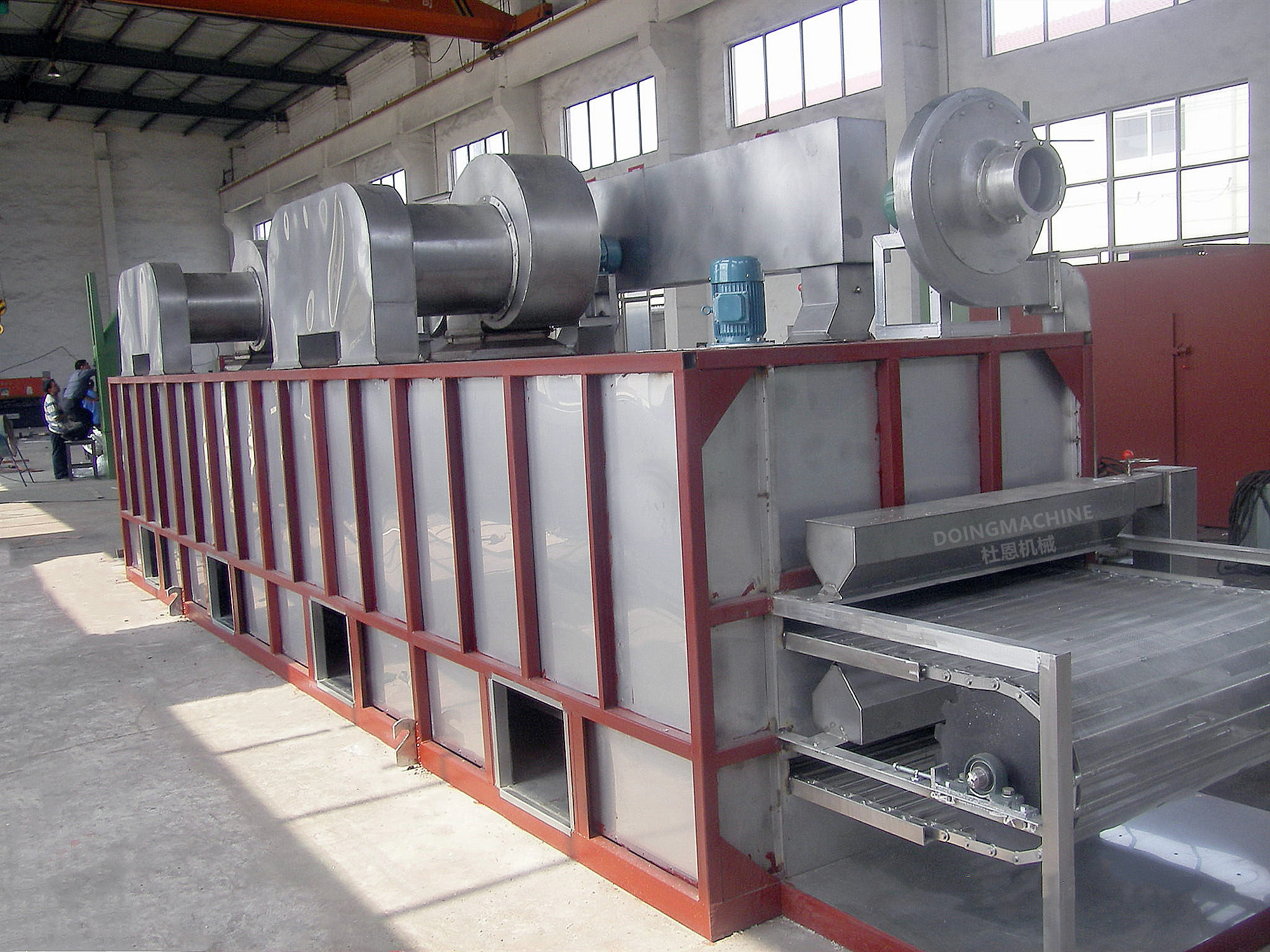

Single layer belt dryer |
1) Wide applications: The residence/drying time is adjustable from 15 minutes to 120minutes which makes it flexible to dry various kinds of raw material.
2) Energy-saving: Different types of hot air flow pattern and well insulated drying chamber can considerably reduce heat loss. Hot air circulation can be designed for energy-saving.
3) Uniform drying: The specially designed hot air distributor and drying zones can make sure uniform air flow in side the whole drying chamber to guarantee uniform drying.
4) Easy operation and maintenance: The whole drying system is highly automatic. The simple but practical design can not only reduce production cost but also maintenance and repair cost.
5) Flexible heat source: The heat source for drying can steam, electricity, hot water, thermal oil or oil/gas/coal/biomass fired hot air generator. We can design and engineer different heat source according to customer's actual conditions.
6) Different types and layers of mesh belt are vailable based on specific raw material and drying conditions.

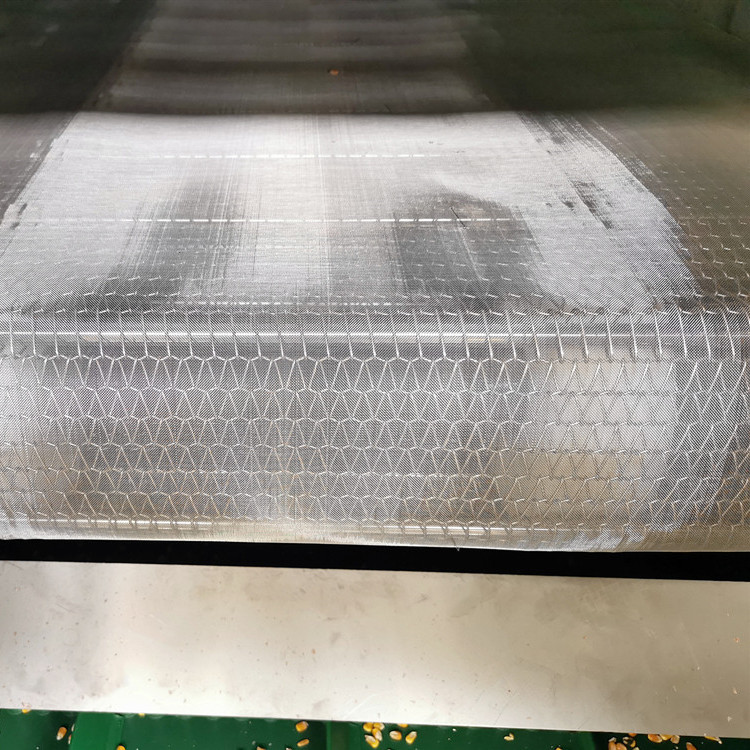

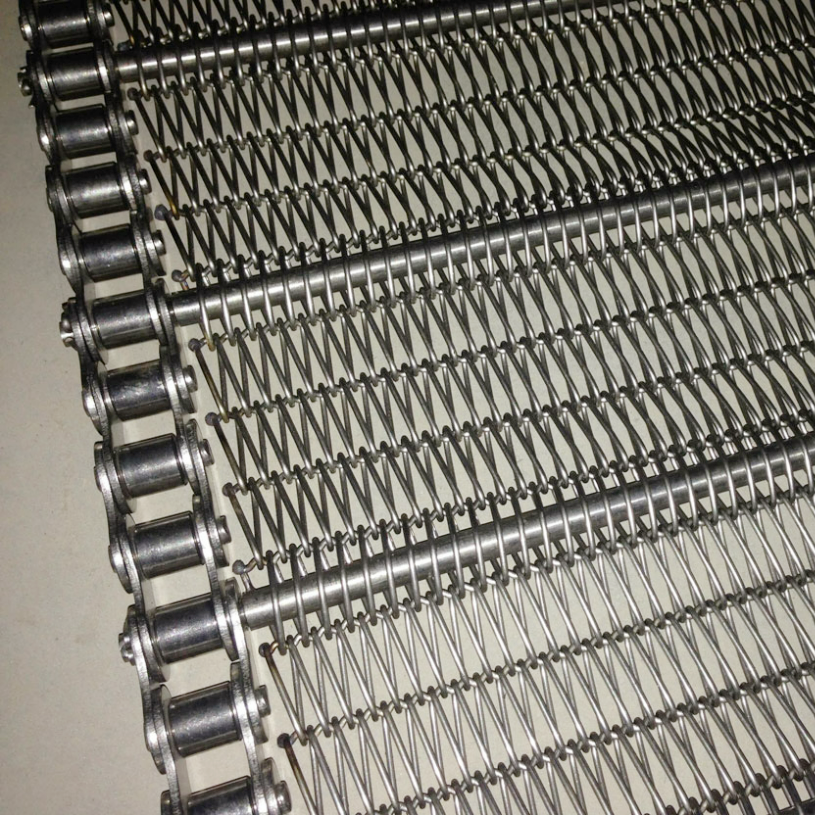

 Plate-type conveyor |  Wire mesh conveyor |  Mesh conveyor |

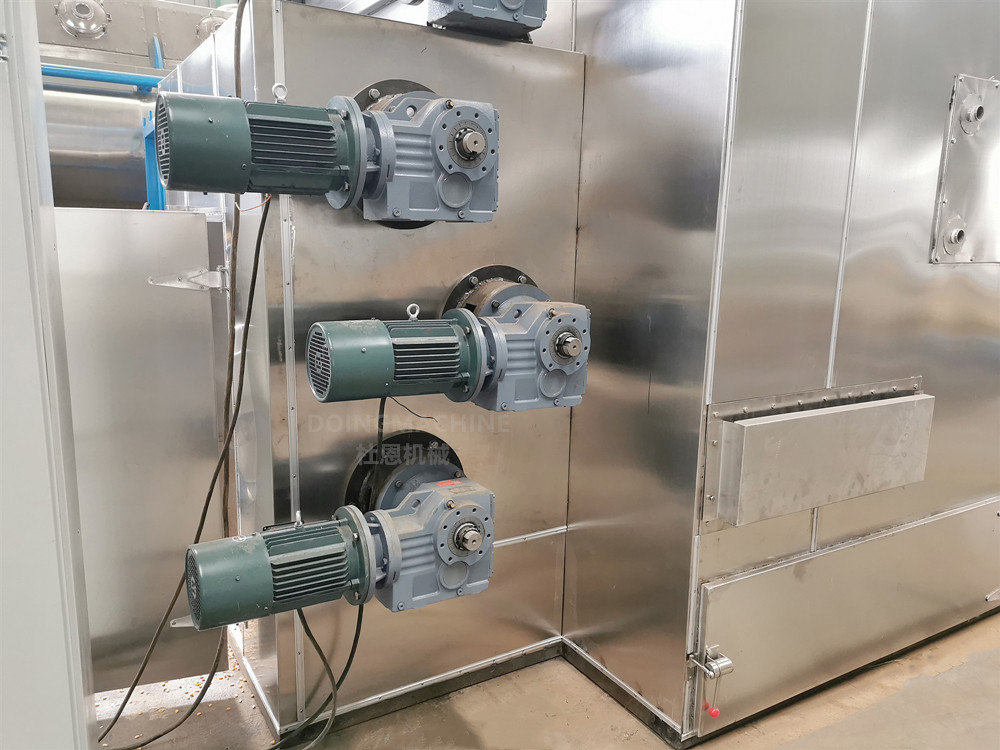

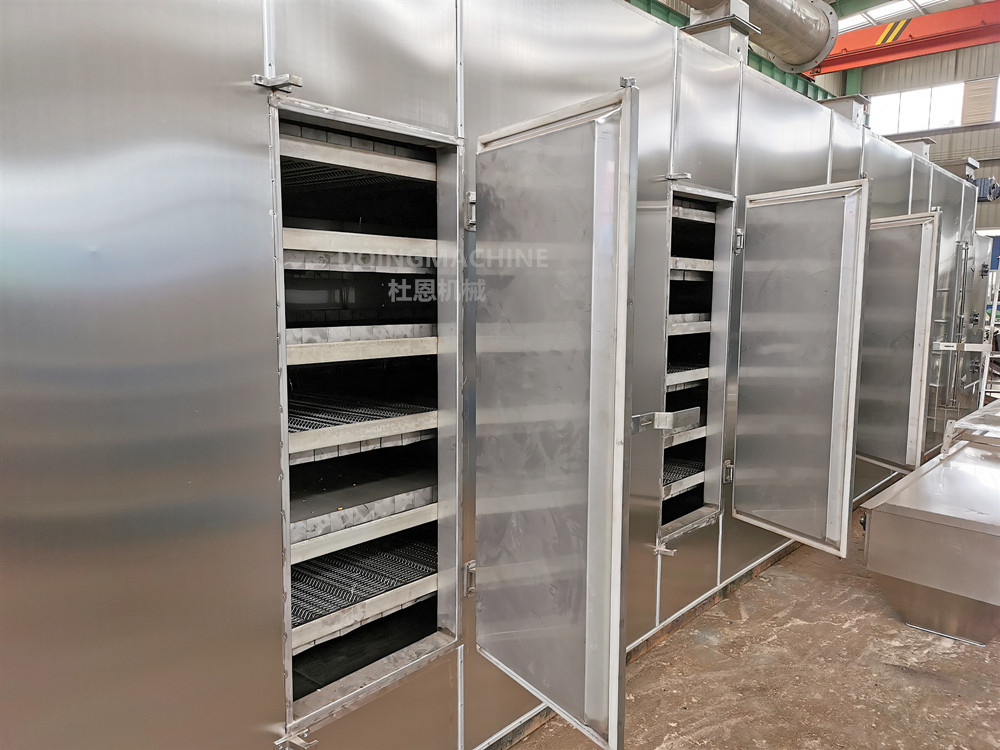

 Drying chamber |  Drive motor |  Cleaning doors |
 Fruits & vegetables |  Herbs |  Granules |
A: Our conveyor mesh belt dryer can be customerized. Before we can work out a detailed quotation, we have to know the following information:
1) What kind of raw material to be dried?
2) Size of raw material
3) Moisture content of raw material; and target moisture content in dried product
4) Drying capacity in kg/h
5) Suggested drying temperature
6) Heat source for drying
A: The dryer is packed in plywood box for shipping
A: We have the following standard models:
| Model | DW 3x1.2-10 | DW 3x1.6-10 | DW 3x2-8 | DW 3x2-10 |
| Belt layer | 3 | 3 | 3 | 3 |
| Belt length M | 10 | 10 | 8 | 10 |
| Belt width M | 1.2 | 1.6 | 2 | 2 |
| Material thickness mm | 10-80 | 10-80 | 10-80 | 10-80 |
| Working temp. ℃ | 50-140 | 50-140 | 50-140 | 50-140 |
| Evaporation capacity kg/h | 220-550 | 280-750 | 280-750 | 350-900 |
| Overall dimension LxWxH mm | 11500x1500x4500 | 11500x1900x4500 | 9800x2300x4500 | 11500x2300x4500 |
| Weight kg | 4500 | 4800 | 6300 | 7500 |
