Rotary Knife Cutter Mill

CSJ series rotary knife cutter mill is designed for cut corn, spices, roots and other foods and grains into controlled sizes with little or no fines or dust

1. Fast particle size reduction from 300mm to 2mm in food, chemical and pharmaceutical industry

2. Product size: 0.5-20 mm
3. Capacity: 80-1500 kg/h
4. Dust collector can be equipped
5. Different particle size can be achieved by changing perforated sieves

Product Description

CSJ series rotary knife cutter mill, which consists of feed hopper, rotator and stator knives, bottom sieves and dust collector, is designed for fast particle size reduction from 300mm to 2mm mainly for food products. The material to be processed falls into the cutting chamber via a guide chute and is shredded by cutting between rotating and fixed knives until it passes an attached sieve as ground product. The sieve extends over the lower half of the grinding chamber and can be easily changed. Final particle size is determined by the hole size of sieves.

CSJ series rotary knife cutter mill is most often used for cut corn, spices, roots, dried herbs and other soft to middle-hard materials in food, chemical and pharmaceutical industry into accurately controlled size or before fine grinding.


Single cutting mill


Cutting mill with dust collector


Large scale cutting mill

Technical Features

 1. Robust,simple and compact design requires minimum maintenance;

 2. Made by SUS304 or SUS316 and mirror polished to meet GMP standards.

 3. Alloy steel cutting knives

 4. Very easy and convinent for cleaning, changing sieve and cutting knives

 5. Different particle size can be achieved by changing sieve

 6. It is suitable for cutting wide range of products with little limilation on hardness, softness and fiber content etc.

rotary knife mill_副本

Alloy steel cutting knives

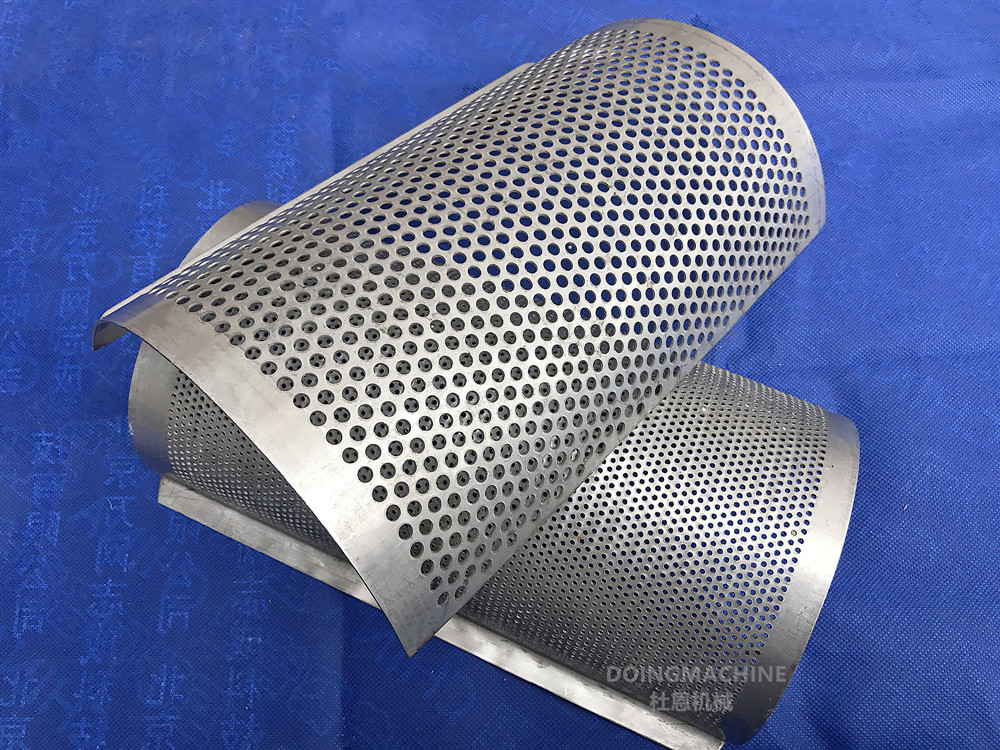

Sieve (2-20mm)


Cutting chamber


Dust colletor

Typical Applications

Dried herbs


Dried spices

timg (2)_副本

Sugar/salt crystal


Q: What information should be provided in order to get a proposal or quotation?

A: Our rotary knife cutter mill can be customerized. Before we can work out a detailed quotation, we have to know the following information:

1) What product you are going to process

2) Product size before cutting/crushing

3) Required final product size

4) Process capacity in kg/h

Q: How the machine will be delivered ?

A: The granulator is packed in plywood box for shipping

Q: What standard models do you have?

A: We have the following standard models:

Model  CSJ-200 CSJ-300 CSJ-400 CSJ-600
Capacity  kg/h 80-300 100-800 200-1000 500-1500
Feed size  mm  ≤100 ≤120 ≤150 ≤200
Product size  mm  0.5-20 0.5-20 0.5-20 0.5-20
Rotating speed  RPM 400 400 400 400
Motor power  KW 3 4 5.5 11
Dimension  L x W x H mm  900x600x1440 900x700x1440 900x800x1440 1000x900x1440
Weight  kg  200 300 380 500
