Fitz Mill Comminutor

1. Provide coarse to fine grinding of soft to medium hard materials into controlled particle sizes

2. Size of output product: 5-80 mesh (adjustable by changing sieves)

3. Capacity: 10-600 kg/h

4. GMP design

5. Different types of dust collector can be equipped

FM series Fitz Mill Comminutor is the commonly used comminution equipment to precisely control the particle size reduction process. Material is fed into the comminuting chamber via the specially designed feed throat, which can be vertical or horizontal or with screw feeder. Size reduction is done by strong impact and shearing of high speed rotation blades. The product particle size is controlled by the screen, type of blade and rotor speed. Different types of dust catcher are available for various materials and working conditions.

FM series Fitz  Mill Comminutor can be used for small, medium or large scale production in food, chemical and pharmaceutical industry.

1) Coarse grinding and chopping of dry material

2) De-lumping of agglomerated material

3) Pulverizing

4) Granulating compacted material

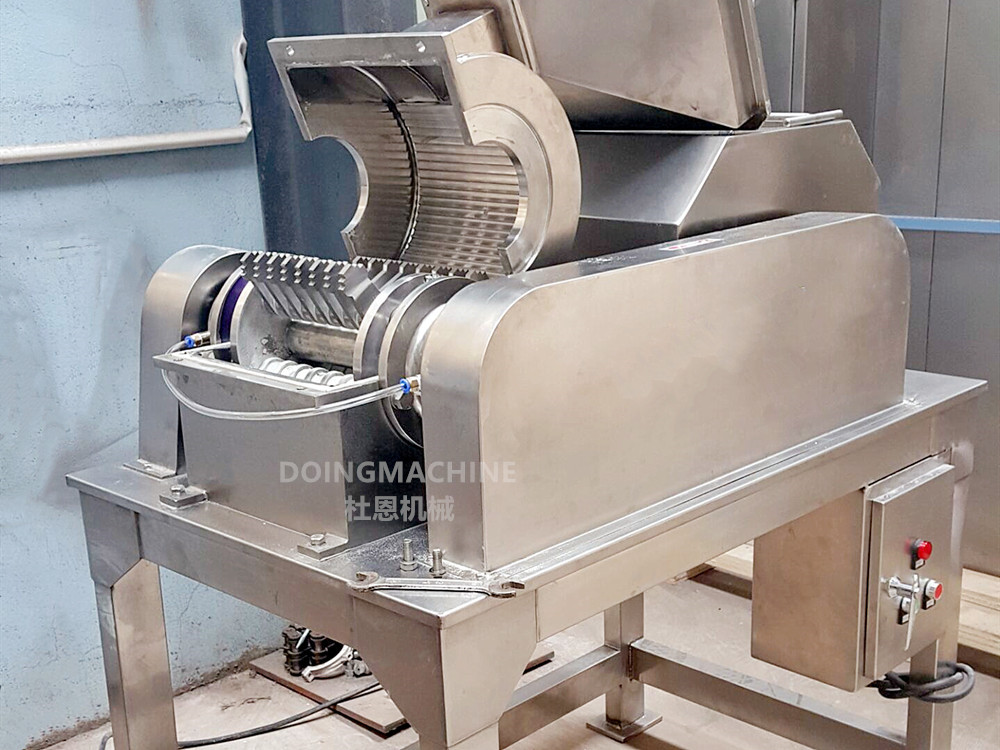

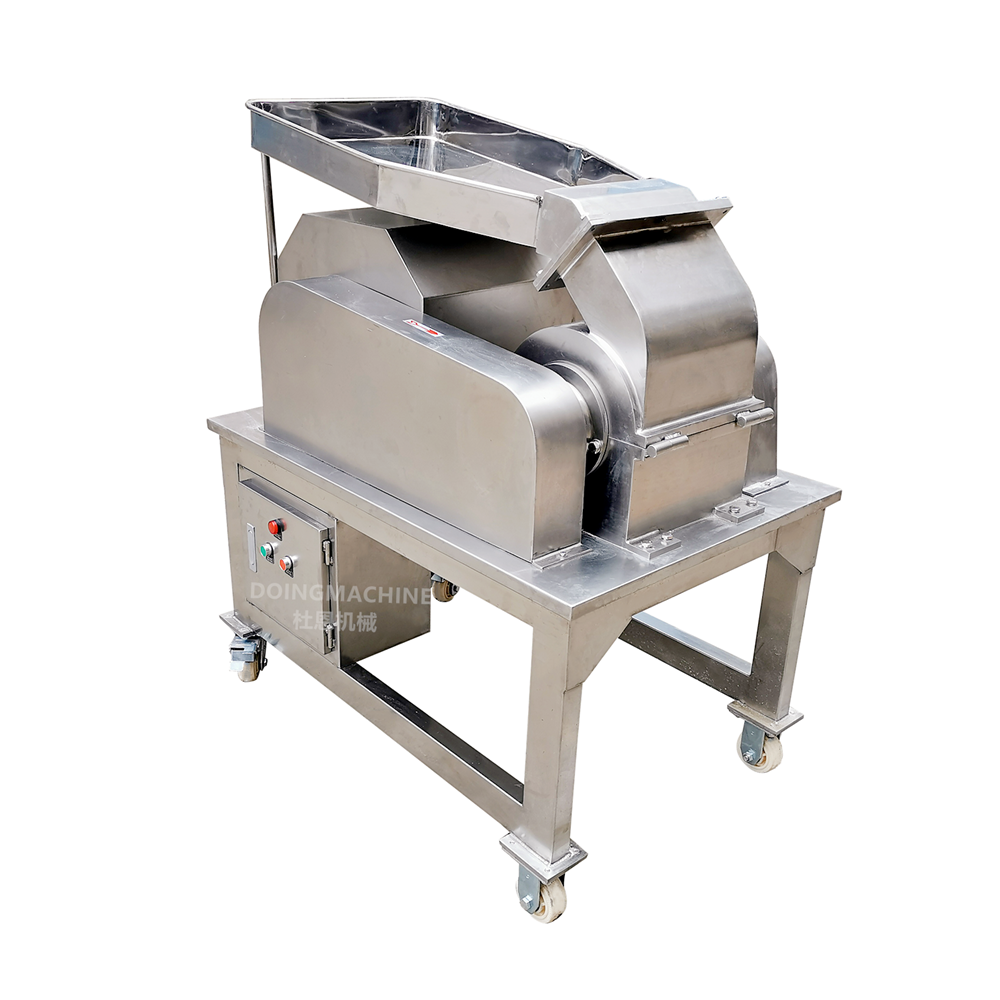

Horizontal feeding

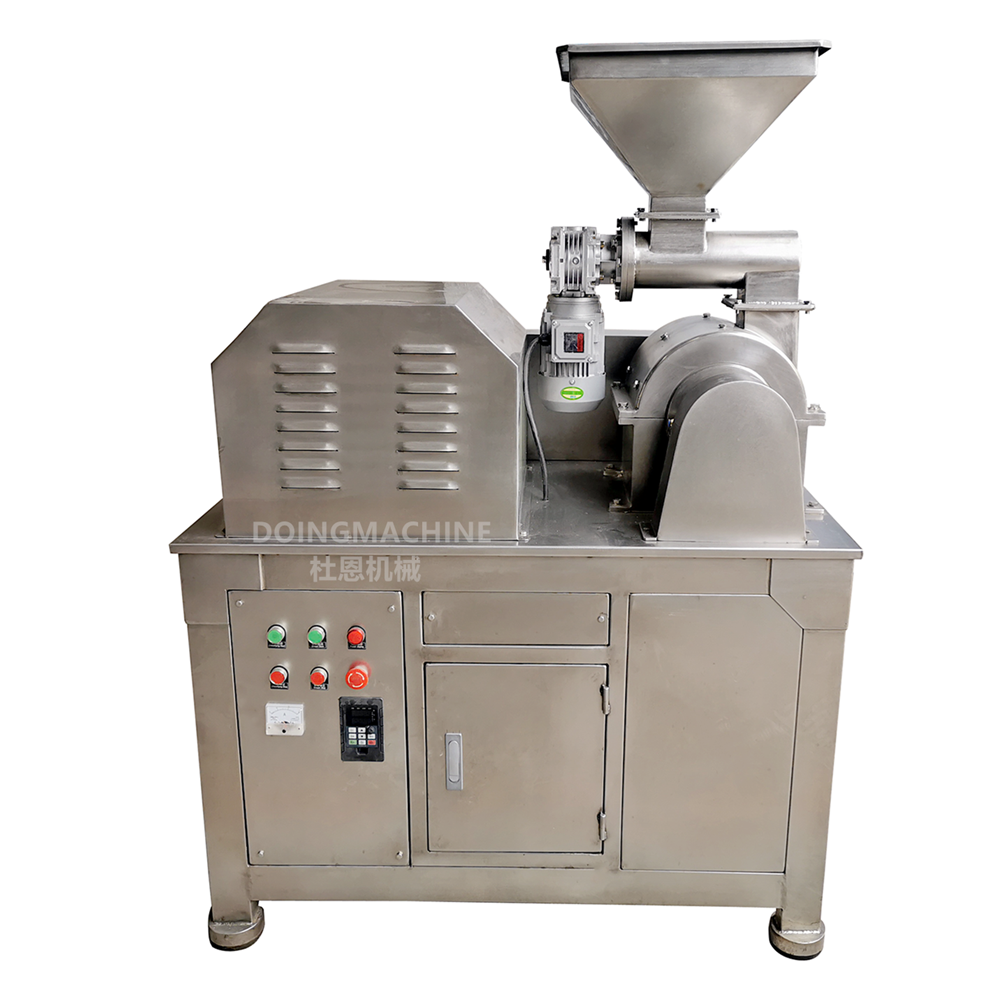

Vertical feeding with screw

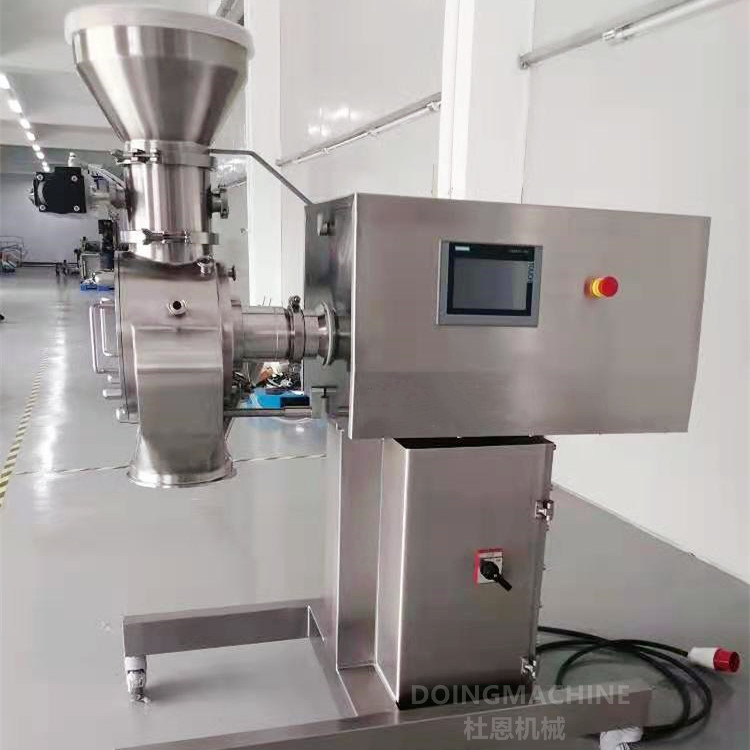

GMP design

1. Specially designed feed throat: Vertical inlet, Horizontal inlet and automatic feeding with screw are available for specific working conditions.

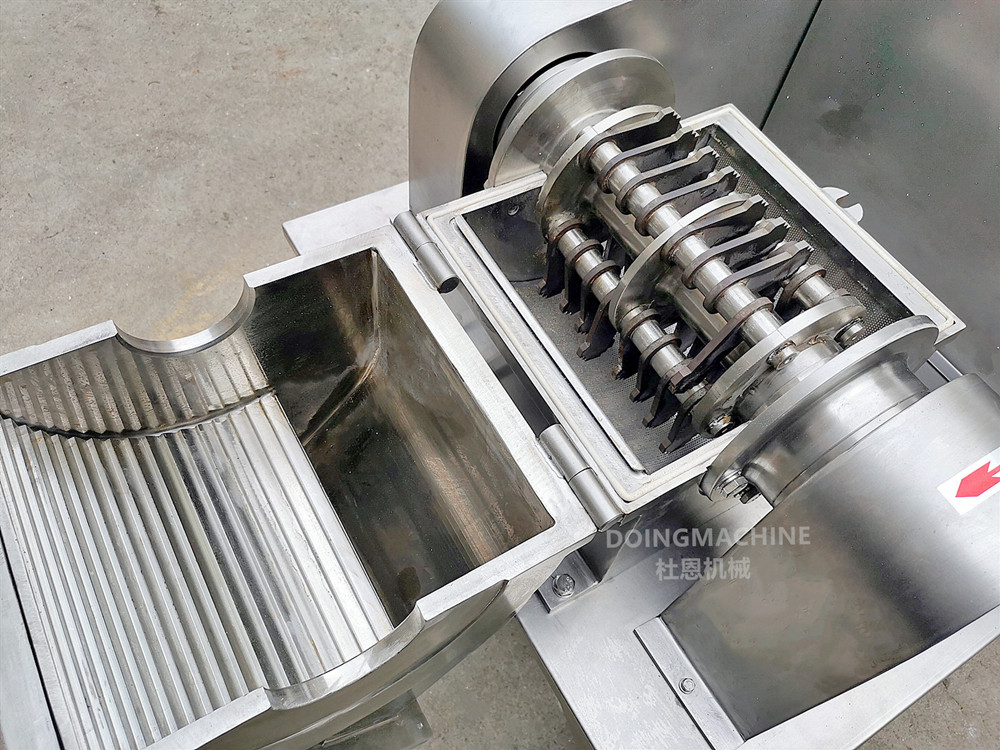

2.  Different types of blade assembly:  Blades can be fixed, swinging, knife-edged or impact-edged for different materials and size reduction requirements.

3. Different types of dust catcher are available to prevent dust from escaping, such as cabinet dust catcher, cyclone or pulse bag filter etc.

4. The comminuting chamber can be disassembled quickly for fast, easy cleaning and maintenance.

5.  Made by high quality stainless steel and mirror polished to meet GMP or food grade sanitary standards.

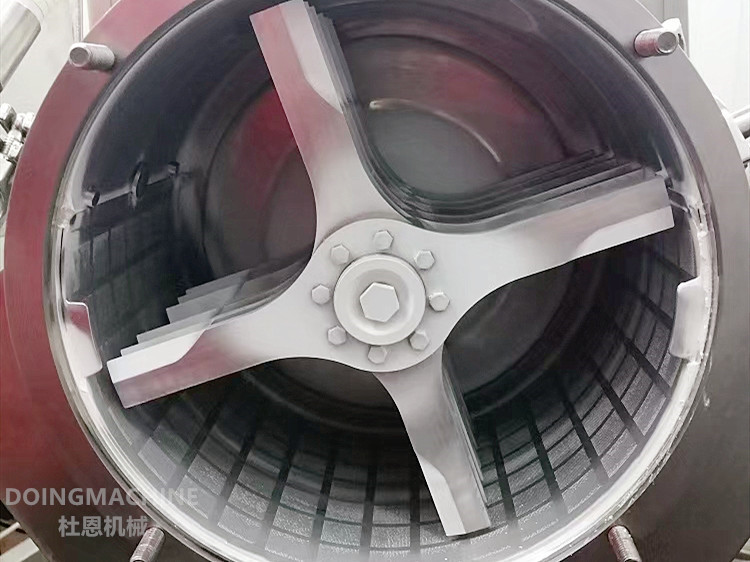

Swing blades

Fixed blades

Knife blades

Vertical feeding
