| Quantity: | |
|---|---|
1. Provide coarse to fine grinding of soft to medium hard materials into controlled particle sizes
2. Size of output product: 20-150 mesh (adjustable by changing sieves)
3. Capacity: 50-1000 kg/h
4. GMP design
5. Different types of dust collector can be equipped
WF series impact turbo mill is a compact, high speed impact mill capable of fine size reduction specially designed for brittle, low oily and heat sensitive materials.
Material is fed into the grinding chamber via the central inlet by gravity or screw feeder. High speed rotation of the turbo rotor creates centrifugal force that accelerates bulk material moving from the center to the periphery of the discs at high speed, where size reduction is done by strong impact and shearing between turbo beaters and inner teeth liner. The strong air stream generated by turbo rotor and draft fan forces the product go through a filtering sieve which is around the grinding chamber to get required particle size.
WF series impact turbo mill has been commonly used for coarse to fine grinding of soft to medium hard, brittle, crystalline even sticky, low-oily and heat sensitive materials in food, chemical and pharmaceutical industry.

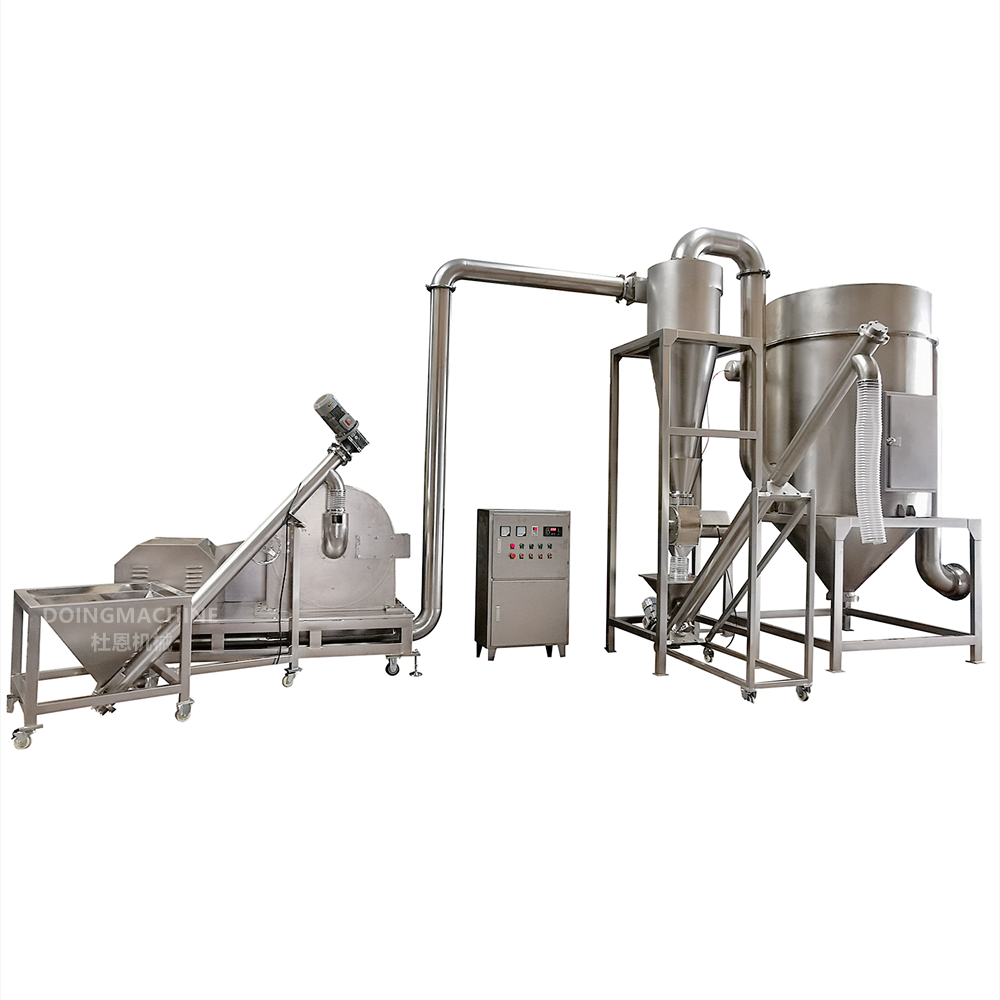

 Single turbo mill |  Turbo mill with dust collector |  Turbo mill grinding set |
1. Interchangeable grinding elements make it suitable for the vast majority of soft to medium-hard material grinding.
2. cGMP and food grade design
3. Strong air flow generated by turbo rotor make it suitable for grinding fibered, low-oily and heat sensitive materials
4. Output size is adjustable by changing filtering sieve
5. Screw feeder can be equipped for accurate feeding rate control
6. Different types of dust collector can be equipped to create dust-free working condition
7. Robust one-piece machine with hinged door provides very good access for fast and easy cleaning and maintenance.
Grinding chamber inside

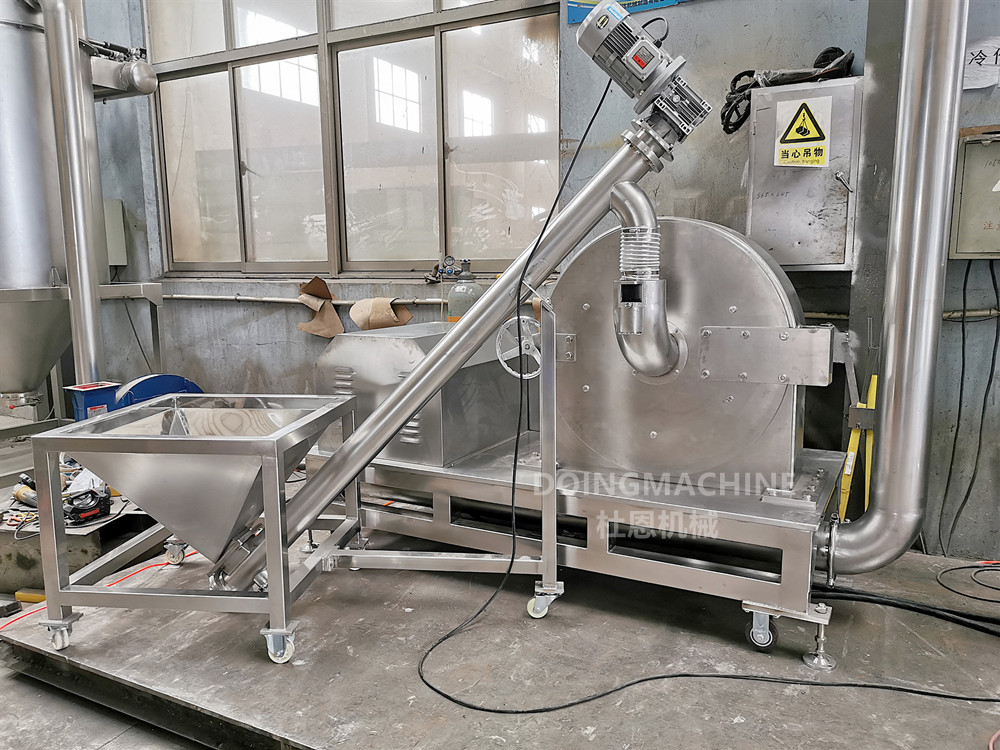

Grinding unit with screw feeder
 Turbo Disc |

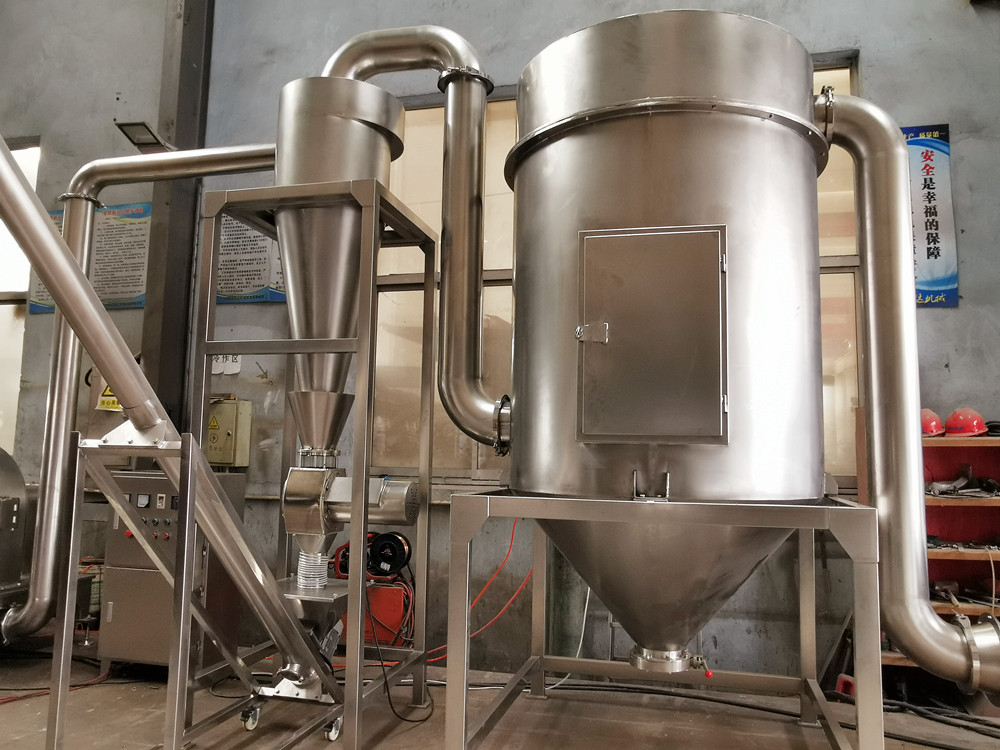

Cylone and bag filter |
 Grains |  Casava flour |  Sugar |
A: Our pin mill can be specially designed for each customer according to specific material, capacity, feed material size and product size. Before we can work out a detailed proposal or quotation, we have to know the following information:
1) Detailed information of material are you going to grind. We may ask you to provide samples for grinding test.
2) Size of your material
3) Your required particle size after grinding
4) Grinding capacity in kg/h
A: The system is usually dismantled into grinding unit, cyclone, bag house, draft fan and control cabinet for shipping. Each part is packed in box made by plywood.
A: We have professional after sale service team who can reach you in short notice. They can supervise the installation, do commissioning and train your workers.
A: We have the following standard models:
| Model | WF-200 | WF-300 | WF-400 | WF-500 |
| Capacity kg/h | 60-200 | 80-300 | 100-500 | 300-600 |
| Input size mm | ≤6 | ≤6 | ≤10 | ≤12 |
| Output size mesh | 20-150 | 20-150 | 20-150 | 20-150 |
| Grinding motor KW | 5.5 | 7.5 | 11 | 15 |
| Draft fan KW | 1.5 | 3 | 3 | 5.5 |
| Discharge valve KW | 0.75 | 0.75 | 0.75 | 0.75 |
| Rotation speed RPM | 5600 | 4200 | 3800 | 3200 |
| Installation dimension mm | 1000X800X1600 | 1200X850X1780 | 1500X900X1950 | 1800X1200X2800 |
| Gross weight kg | 320 | 550 | 680 | 750 |
