1. Fine grinding of soft to medium hard materials with high fiber content, such as dried herbs, ginger, leaves etc.
2. Size of output product: 60-180 mesh
3. Capacity: 10-300 kg/h
4. GMP design
5. Cyclone and bag filter are equipped.

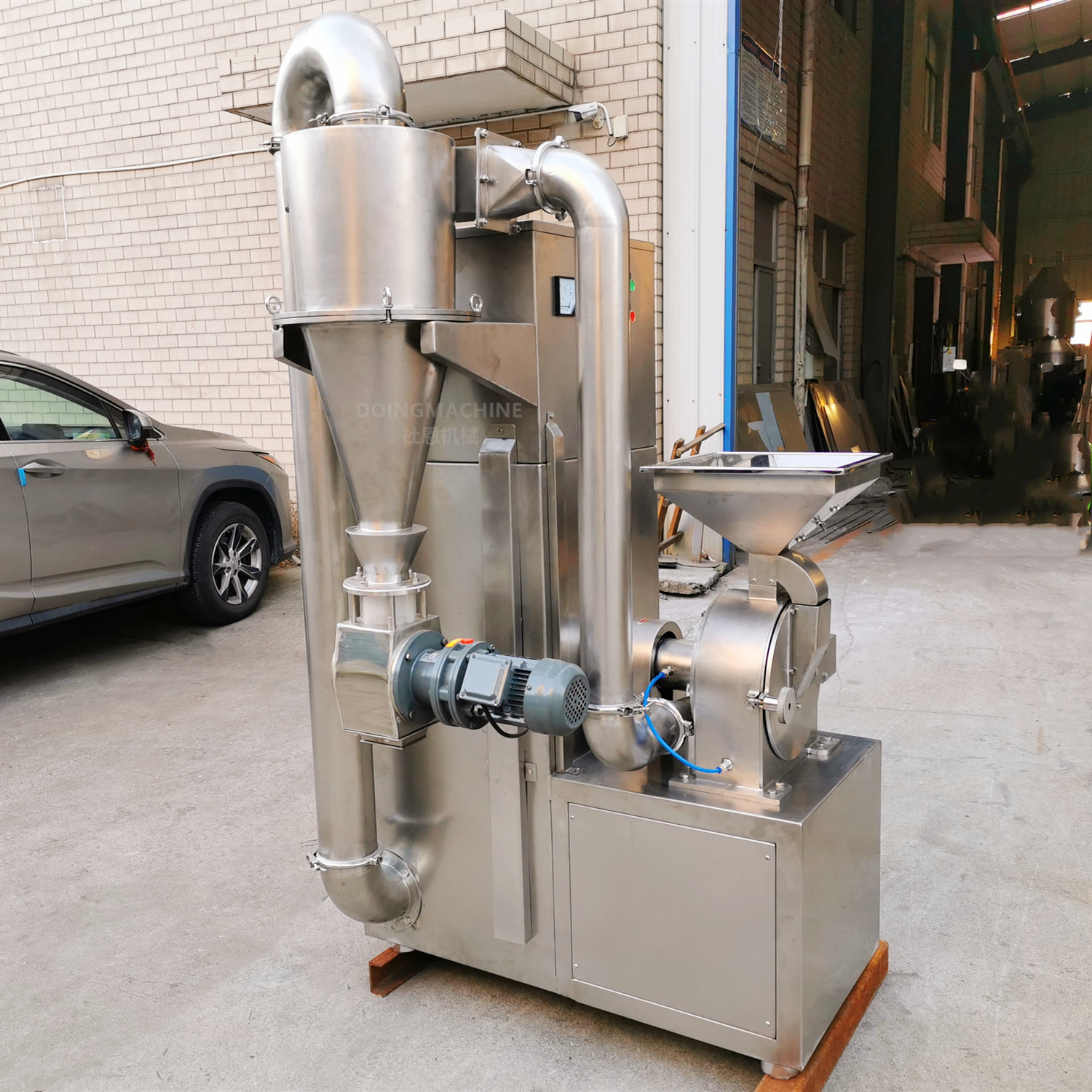

ZFJ series hammer mill grinding machine consists of feed hopper, grinding chamber, drive motor, cyclone with discharge valve, bag house and exhaust fan.
Material is fed into the grinding chamber by gravity or screw conveyor. Grinding is done by strong impact and shearing between the high speed rotor with movable cutters/knifes and inner serrated liners (teeth ring).Product size is controlled by centrifugal classifier installed just behind the grinding unit, where qualified product is sorted out while coarse pieces remain in grinding chamber for further grinding. Different particle size is determined by speed and gap between contrifugal classifier and inner serrated liners.
ZFJ series hammer mill grinding machine has been widely used for fine grinding of soft to medium hard, high fiber content and low-oily materials in food, chemical and pharmaceutical industry.
1. Alloy steel hammer blades and teeth ring
2. cGMP and food grade design
3. Dust-free working condition due to cyclone and bag house
4. Strong air flow generated by centrifugal classifier make it an ideal grinding method for heat sensitive materials
5. Output size is adjustable via centrifugal classifier
6. Feeding rate can be accurately control by screw feeder
7. Robust one-piece machine with hinged door provides very good access for fast and easy cleaning and maintenance.
Grinding chamber inside

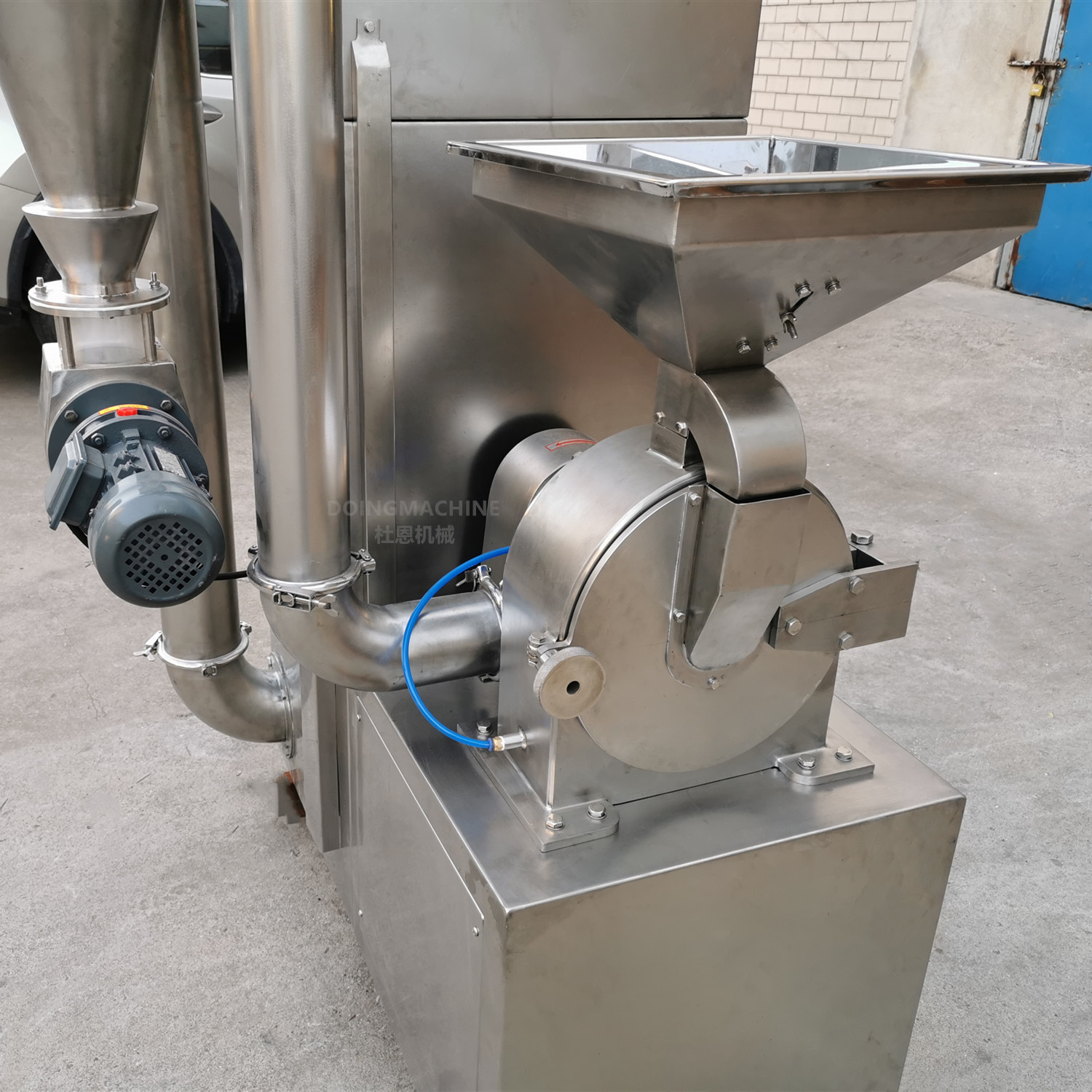

Grinding unit
 Cyclone & rotary discharge valve |

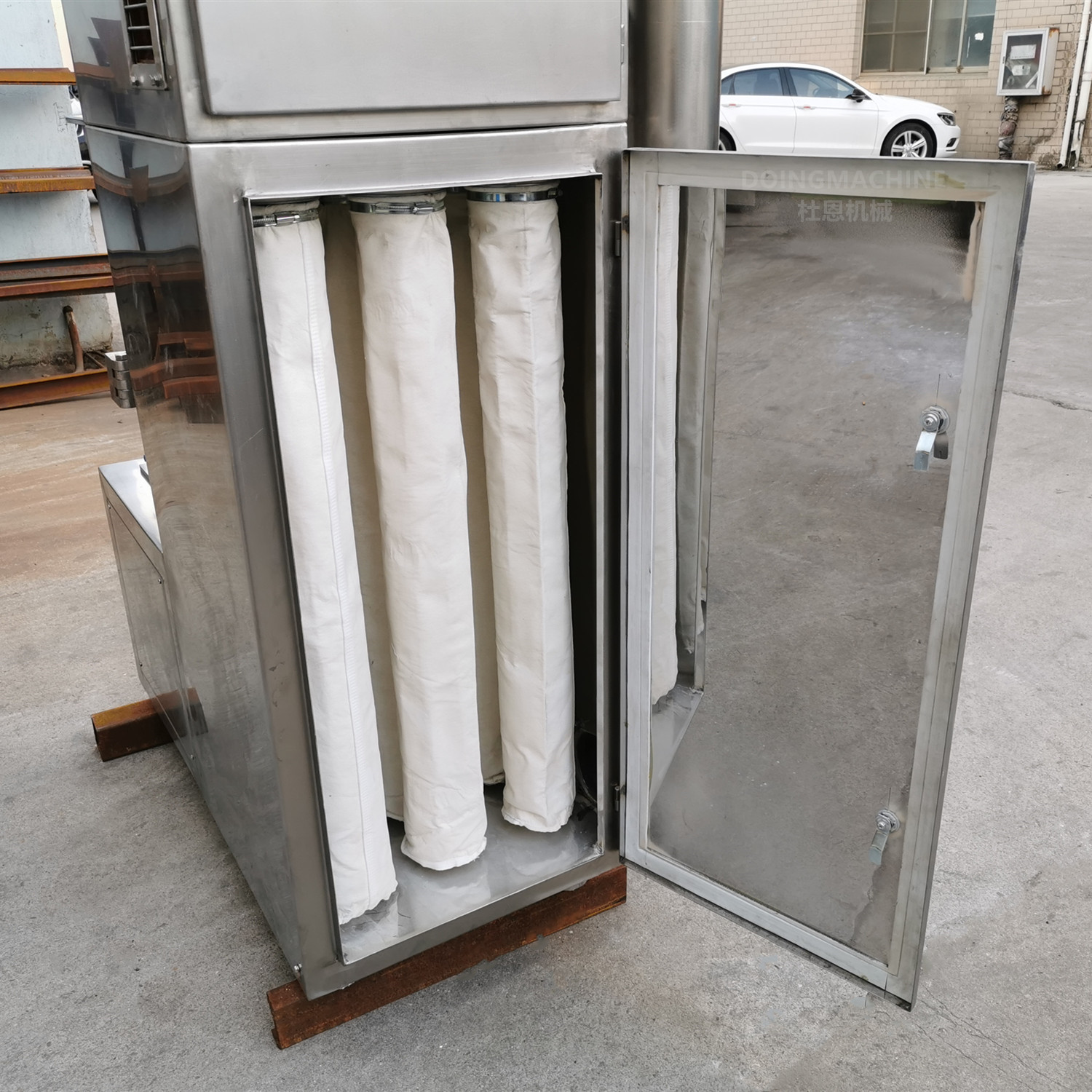

Bag filter |
 Dried roots |  Dried herbs |  Dried leaves |
A: Our hammer mill can be specially designed for each customer according to specific material, capacity, feed material size and product size. Before we can work out a detailed proposal or quotation, we have to know the following information:
1) Detailed information of material are you going to grind. We may ask you to provide samples for grinding test.
2) Size of your material
3) Your required particle size after grinding
4) Grinding capacity in kg/h
A: The system is usually dismantled into grinding unit, cyclone, bag house, draft fan and control cabinet for shipping. Each part is packed in box made by plywood.
A: We have professional after sale service team who can reach you in short notice. They can supervise the installation, do commissioning and train your workers.
A: We have the following standard models:
| Model | ZFJ-20 | ZFJ-30 | ZFJ-40 | |
| Capacity kg/h | 20-80 | 50-150 | 100-300 | |
| Input size mm | ≤5 | ≤12 | ≤15 | |
| Output size mesh | 60-180 | 60-180 | 60-180 | |
| Motor power KW | 5.5 | 7.5 | 11 | |
| Draft fan KW | 1.5 | 3 | 3 | |
| Installation dimension mm | 1350X920X1800 | 1400X1050X2050 | 1600X1150X2100 | |
| Gross weight kg | 320 | 550 | 680 | |
