1. Provide fine to extra-fine grinding of soft to very hard materials
2. Size of output product: 200-1800 mesh
3. Capacity: 2-10 kg/h
4. GMP design
5. With water cooling jacket
WFM series vibrating mill is single-tube design with steel rods or ball as grinding media. The driving motor is connected to the mill via a propeller belt which transfers the vibration force to the grinding media. The grinding effect is caused by milling the feed material in between the elements of the grinding media and between the elements of the grinding medium and the cylinder walls.
1. GMP and food grade design
2. Product size can reach as fine as 1800 mesh
3. Especially good at grinding fiber materials, high tenacity materials and extremely hard materials to extra-fine powder
4. The mill is placed in soundproof housing to prevent noise.
5. Water cooling jacket is equipped for the grinding tube
6. Easy operation and maintenance

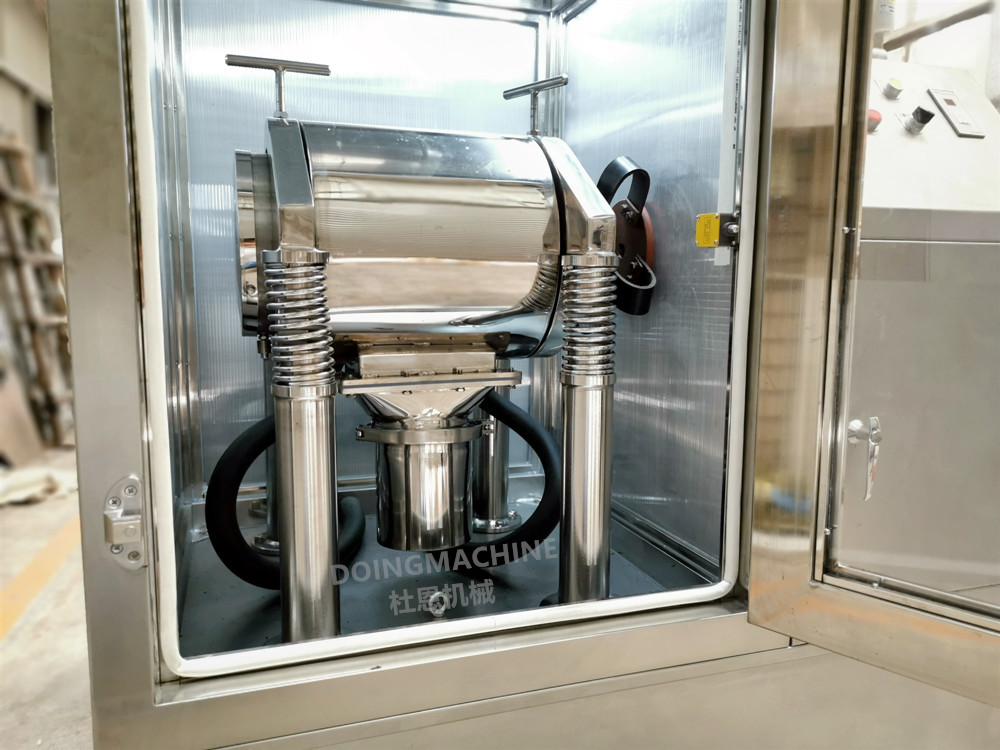

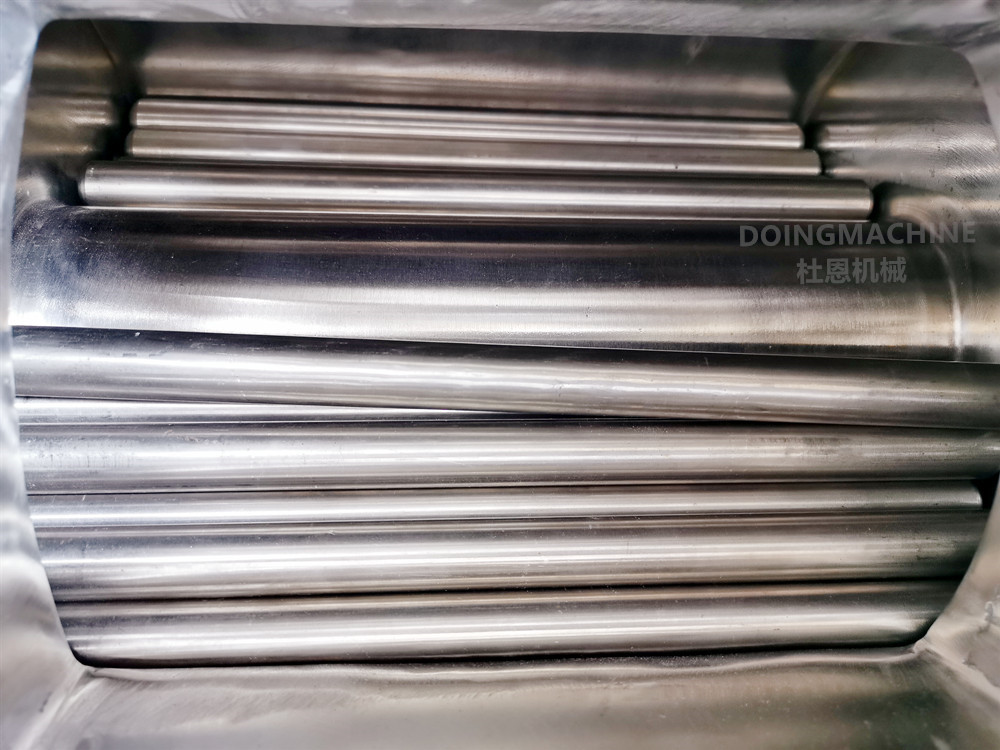

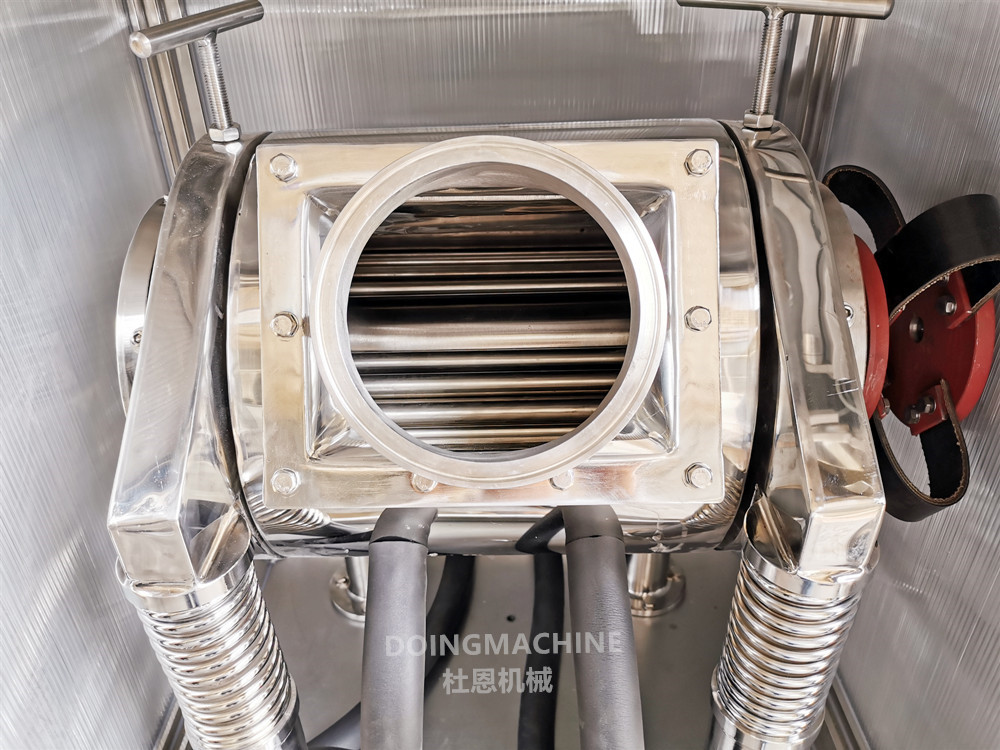

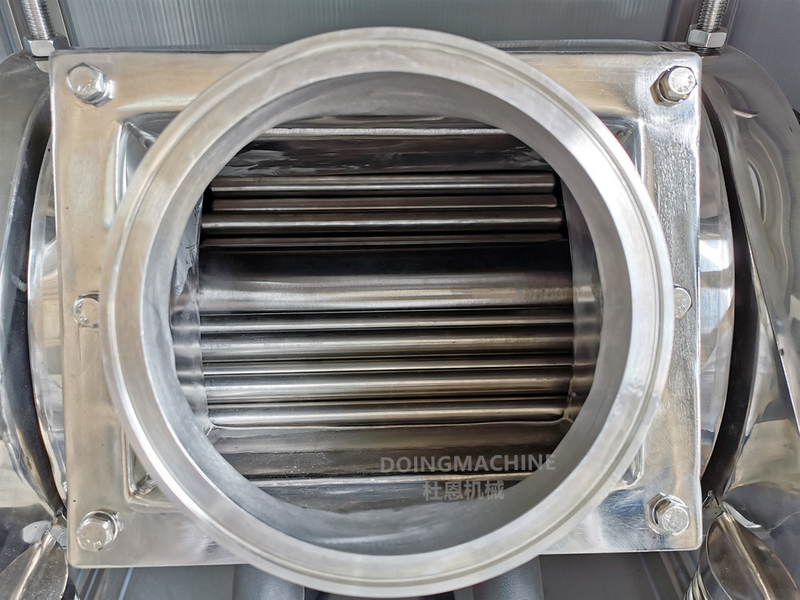

Grinding rods | Water-cooled grinding chamber |

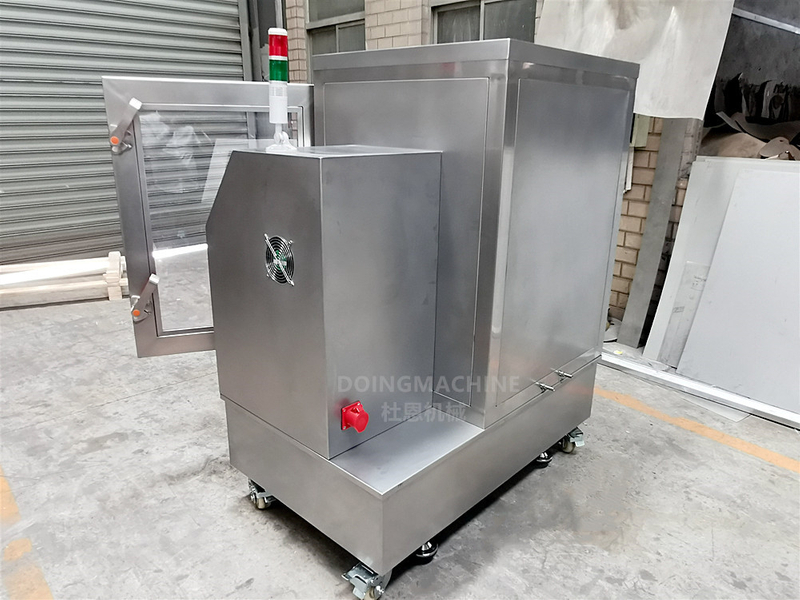

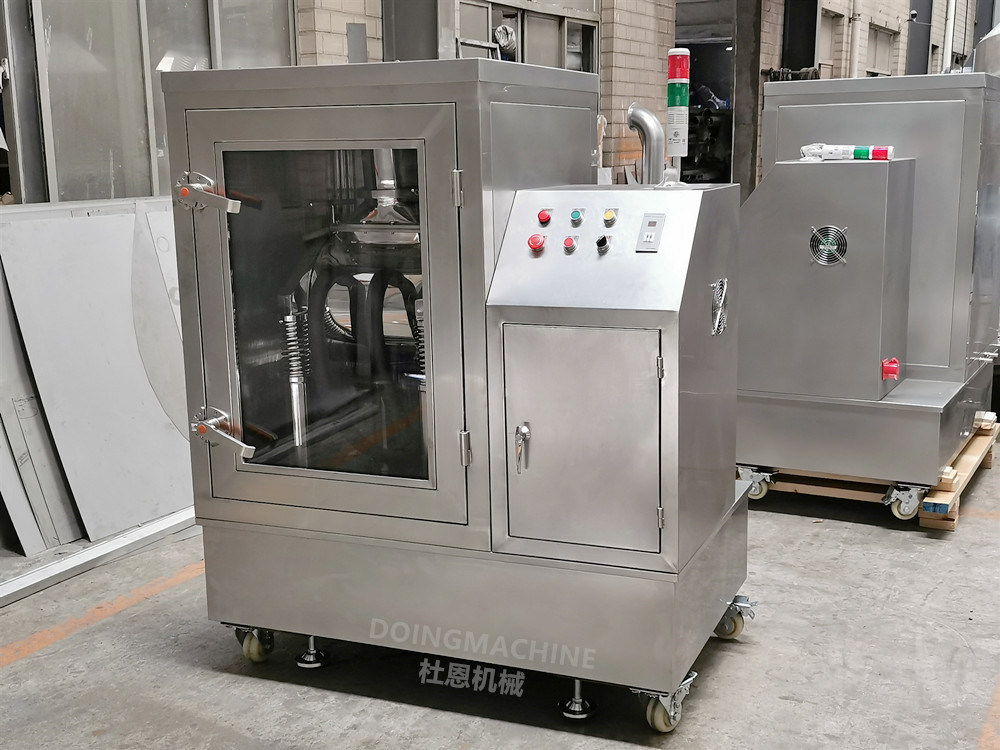

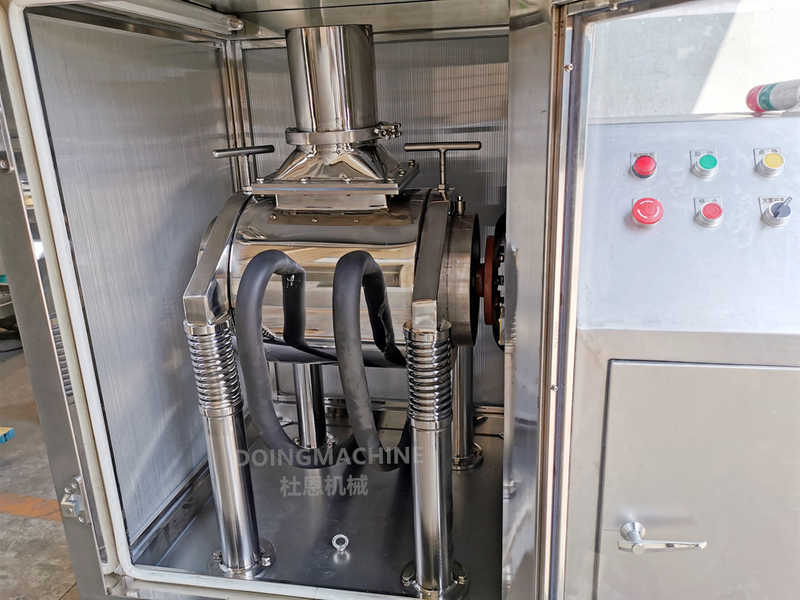

Soundproof cover | Vibration motor |
Chinese herbs/ganoderma | Minerals/cinnabar | Dried leech |
A: Our vibration mill can be customerized. Before we can work out a detailed quotation, we have to know the following information:
1) What product you are going to process
2) Product size before cutting/crushing
3) Required final product size
4) Process capacity in kg/h
A: The granulator is packed in plywood box for shipping
A: We have the following standard models:
Model | WFM-10 | WFM-20 | WFM-30 |
Grinding tube volume L | 10 | 20 | 30 |
Loading capacity KG | 2-5 | 2-8 | 5-10 |
Output size mesh | 200-1800 | 200-1800 | 200-1800 |
Motor power KW | 1.5 | 3 | 4 |
Cooling media | water | water | water |
Dimension mm | 1200x800x1400 | 1300x900x1500 | 1400x1000x1700 |
Gross weight kg | 500 | 550 | 700 |
1. Provide fine to extra-fine grinding of soft to very hard materials
2. Size of output product: 200-1800 mesh
3. Capacity: 2-10 kg/h
4. GMP design
5. With water cooling jacket
WFM series vibrating mill is single-tube design with steel rods or ball as grinding media. The driving motor is connected to the mill via a propeller belt which transfers the vibration force to the grinding media. The grinding effect is caused by milling the feed material in between the elements of the grinding media and between the elements of the grinding medium and the cylinder walls.
1. GMP and food grade design
2. Product size can reach as fine as 1800 mesh
3. Especially good at grinding fiber materials, high tenacity materials and extremely hard materials to extra-fine powder
4. The mill is placed in soundproof housing to prevent noise.
5. Water cooling jacket is equipped for the grinding tube
6. Easy operation and maintenance

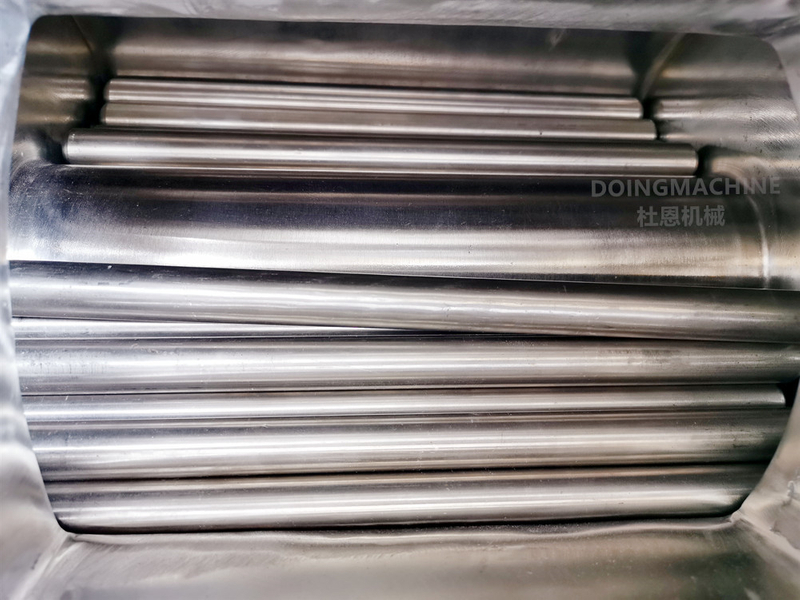

Grinding rods | Water-cooled grinding chamber |

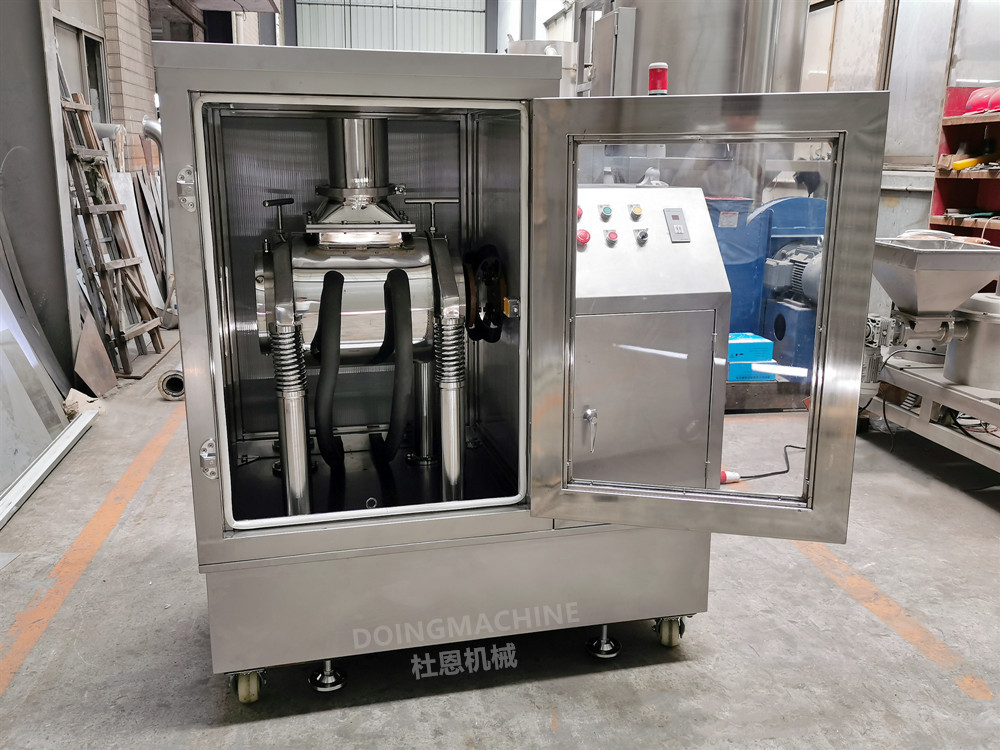

Soundproof cover | Vibration motor |
Chinese herbs/ganoderma | Minerals/cinnabar | Dried leech |
A: Our vibration mill can be customerized. Before we can work out a detailed quotation, we have to know the following information:
1) What product you are going to process
2) Product size before cutting/crushing
3) Required final product size
4) Process capacity in kg/h
A: The granulator is packed in plywood box for shipping
A: We have the following standard models:
Model | WFM-10 | WFM-20 | WFM-30 |
Grinding tube volume L | 10 | 20 | 30 |
Loading capacity KG | 2-5 | 2-8 | 5-10 |
Output size mesh | 200-1800 | 200-1800 | 200-1800 |
Motor power KW | 1.5 | 3 | 4 |
Cooling media | water | water | water |
Dimension mm | 1200x800x1400 | 1300x900x1500 | 1400x1000x1700 |
Gross weight kg | 500 | 550 | 700 |
