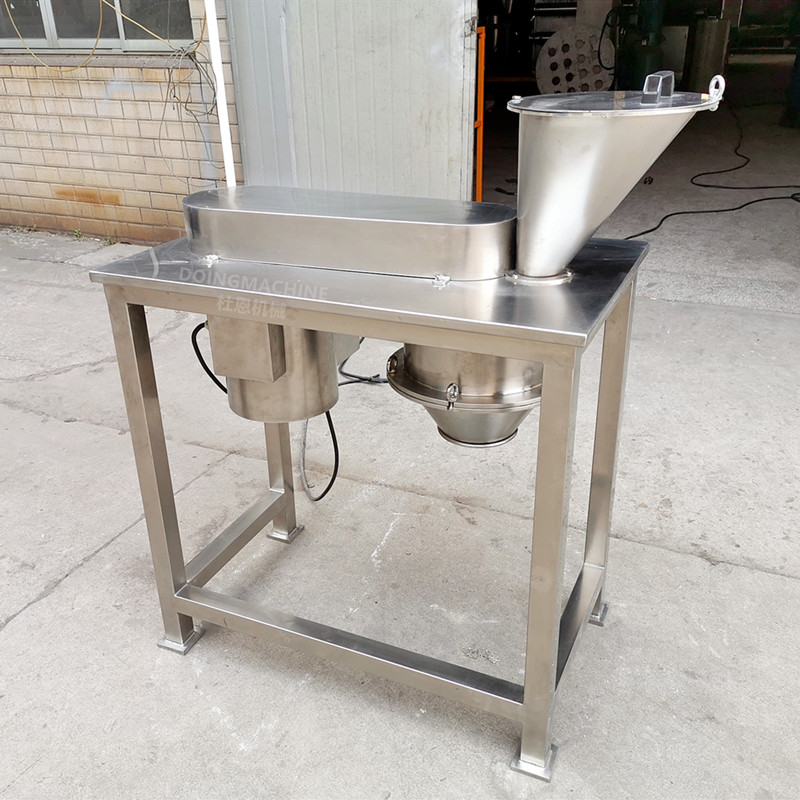

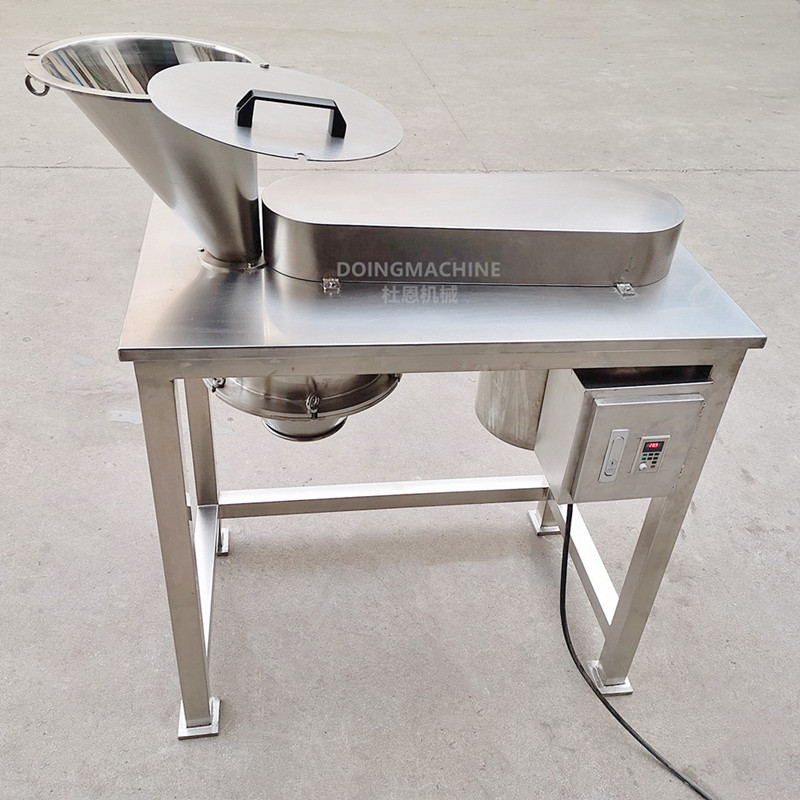

Conical Screen Cone Mill

FZ series conical screen cone mill are low energy and versatile mills for the gentle, intermediate grinding and deagglomeration of powders and granules.
Availability:
Quantity:
Overview


1. Gentle size reduction for heat sensitive lumps and agglomerations in pharmaceutical, food and chemical industries

2. Screen size: 6-80 mesh

3. Capacity: 15-1000 kg/h

4. Product size is adjustable by changing screen


Product Description


FZ series conical screen cone mill, which consists of feed hopper, drive motor, rotator, conical screen and discharge chute, is designed for gentle, intermediate grinding and deagglomeration of powders and granules usually after drying, mixing and granulation to get uniform sized product.



Material to be processed is gravity fed into the milling chamber. The low velocity grinding rotor forces the feedstock into a vortex flow path. Due to the high shear impact by the rotor, most of the product is reduced to below the hole size of screen and discharged instantaneously via the chute. A small percentage of larger unground particles remain in the milling chamber for further grinding. Product size is adjustable by the changing the screen with different hole size.


SY-2
SY-3


Technical Features


 1. Robust,simple and compact design requires minimum maintenance;

 2. Made by SUS304 or SUS316 and mirror polished to meet GMP standards.

 3. Gentle grinding action. Permits uniform size distribution, resulting in the minimum of fines.

 4. Very easy and convinent for cleaning and changing screen.

 5. Low dust levels. No need for air filtration. Keeps installation costs toa minimum.

 6. High efficiency and low heat generation.

SY-4_副本

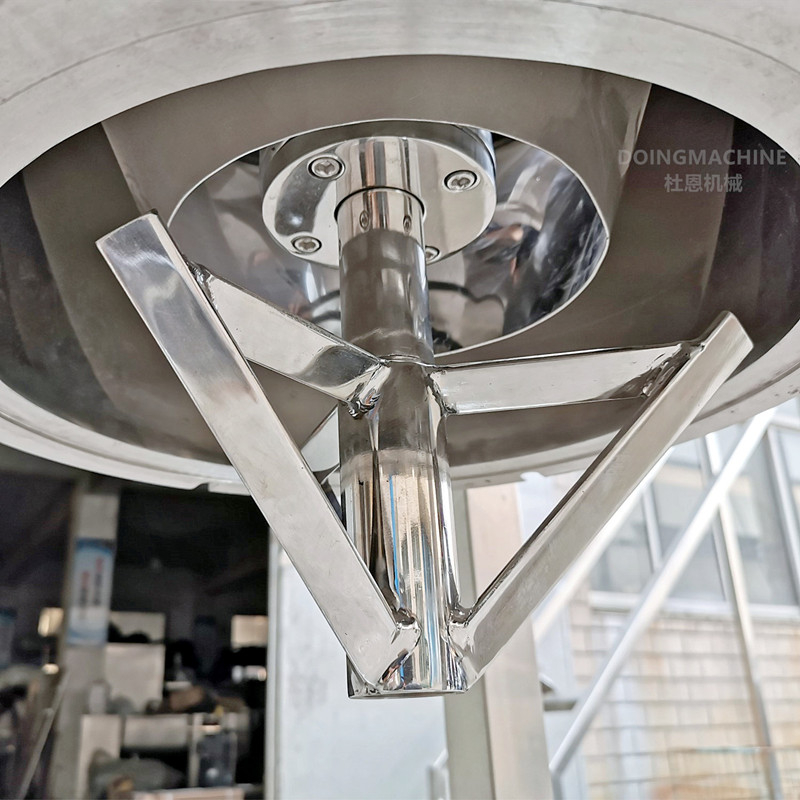

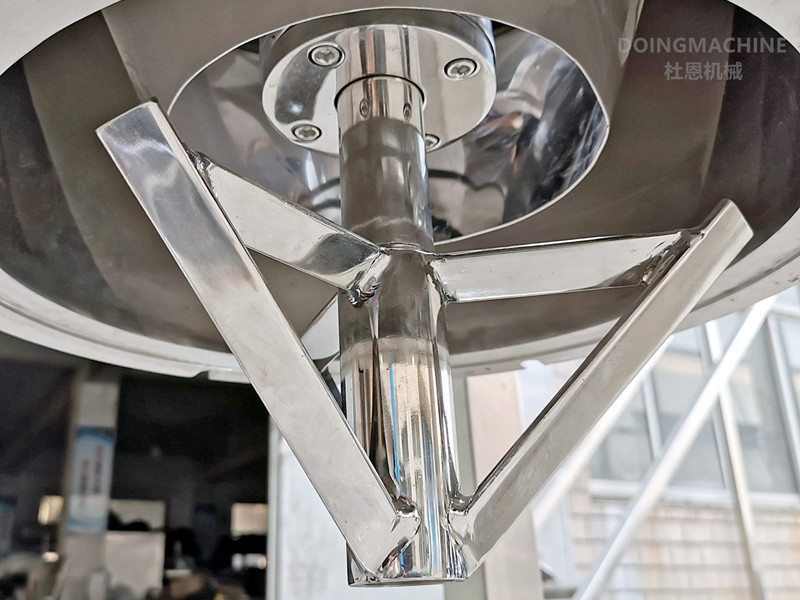

Grinding rotor


SY-5

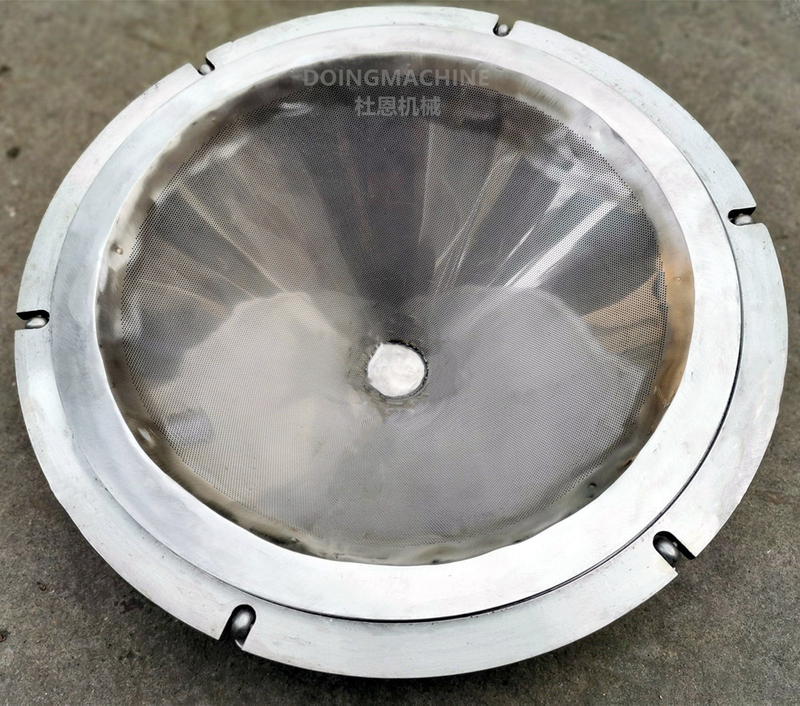

Screen (0.5-5mm)

SY-7

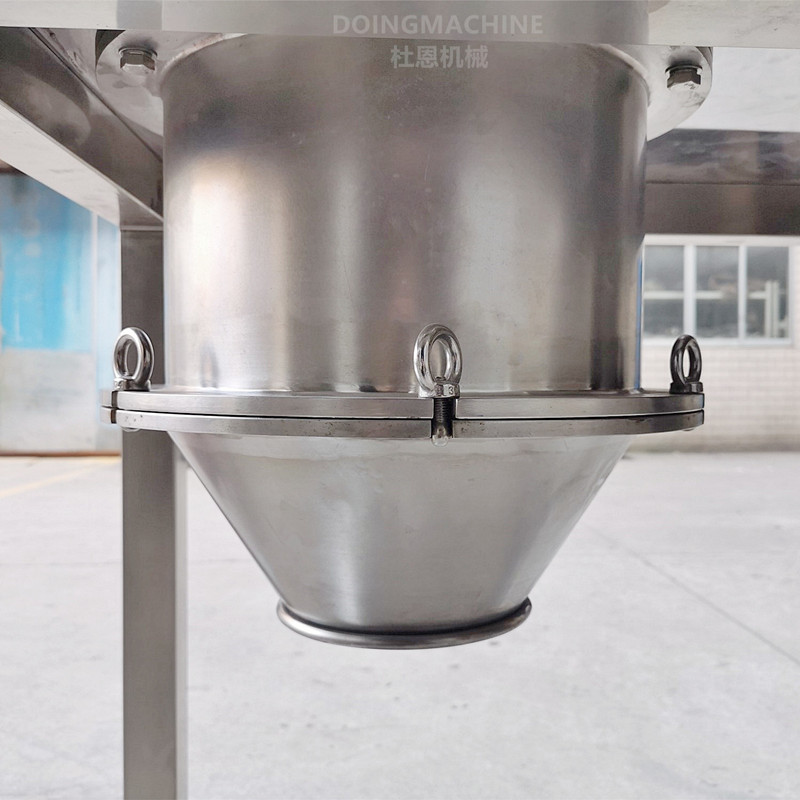

discharge chute


SY-8_副本

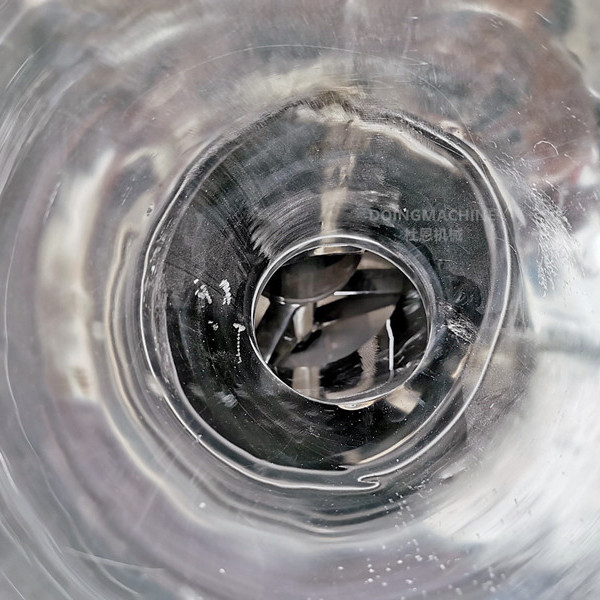

Grinding chamber


Typical Applications
640-9

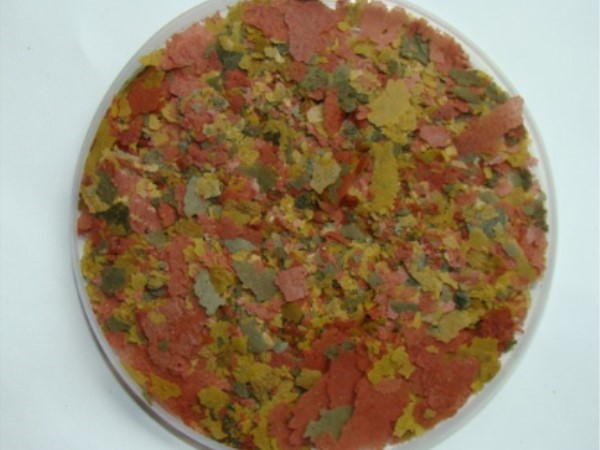

Fish feed


640-10

Fluid bed dried granules


640-11

Roller compactor flakes size reduction

FAQ

Q: What information should be provided in order to get a proposal or quotation?

A: Our cone mill can be customerized. Before we can work out a detailed quotation, we have to know the following information:


1) What product you are going to process

2) Product size before milling

3) Required final product size

4) Process capacity in kg/h


Q: How the machine will be delivered ?

A: The granulator is packed in plywood box for shipping


Q: What standard models do you have?

A: We have the following standard models:


Model  FZ-150 FZ-300 FZ-450 FZ-1000
Capacity  kg/h 15-150 30-300 45-450 100-1000
Product size  mesh  6-80 6-80 6-80 6-80
temperature of drive shaft  ℃ ≤30 ≤30 ≤30 ≤30
Rotating speed  RPM 300-3600 300-3600 300-3600 300-3600
Motor power  KW 1.5 1.5 2.2 5.5
Dimension  L x W x H mm  810x445x1345 810x445x1345 920x445x1430 1100x560x1785
Weight  kg  100  150 300 500
