1. For mixing of powder, paste and slurry materials with low and medium viscosity;
2. Mixing vessel volume: 5-500L;
3. GMP design.
4. Heating jacket can be equipped for steam, hot water or hot oil

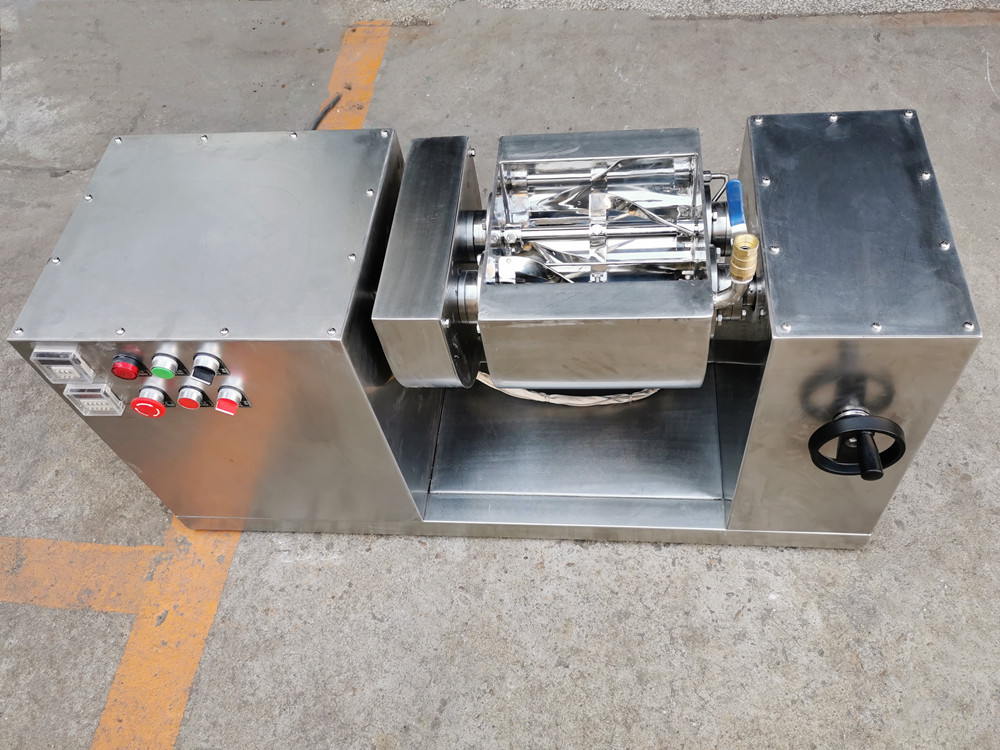

CH series sigma batch mixer is widely used for mixing powders, pastes and slurries with low and medium viscosity in food, chemical and pharmaceutical industry for small scale production. It consists of trough-shaped mixing vessel, single or double Z blade, drive motor, tilt motor and support frame.
Materials (usually powders and liquid ) is gravity fed into the mixing barrel. The rotary Z blades completely stir and blend the materials to achieve uniform mixing. After mixing, incline the mixing vessel for discharging.

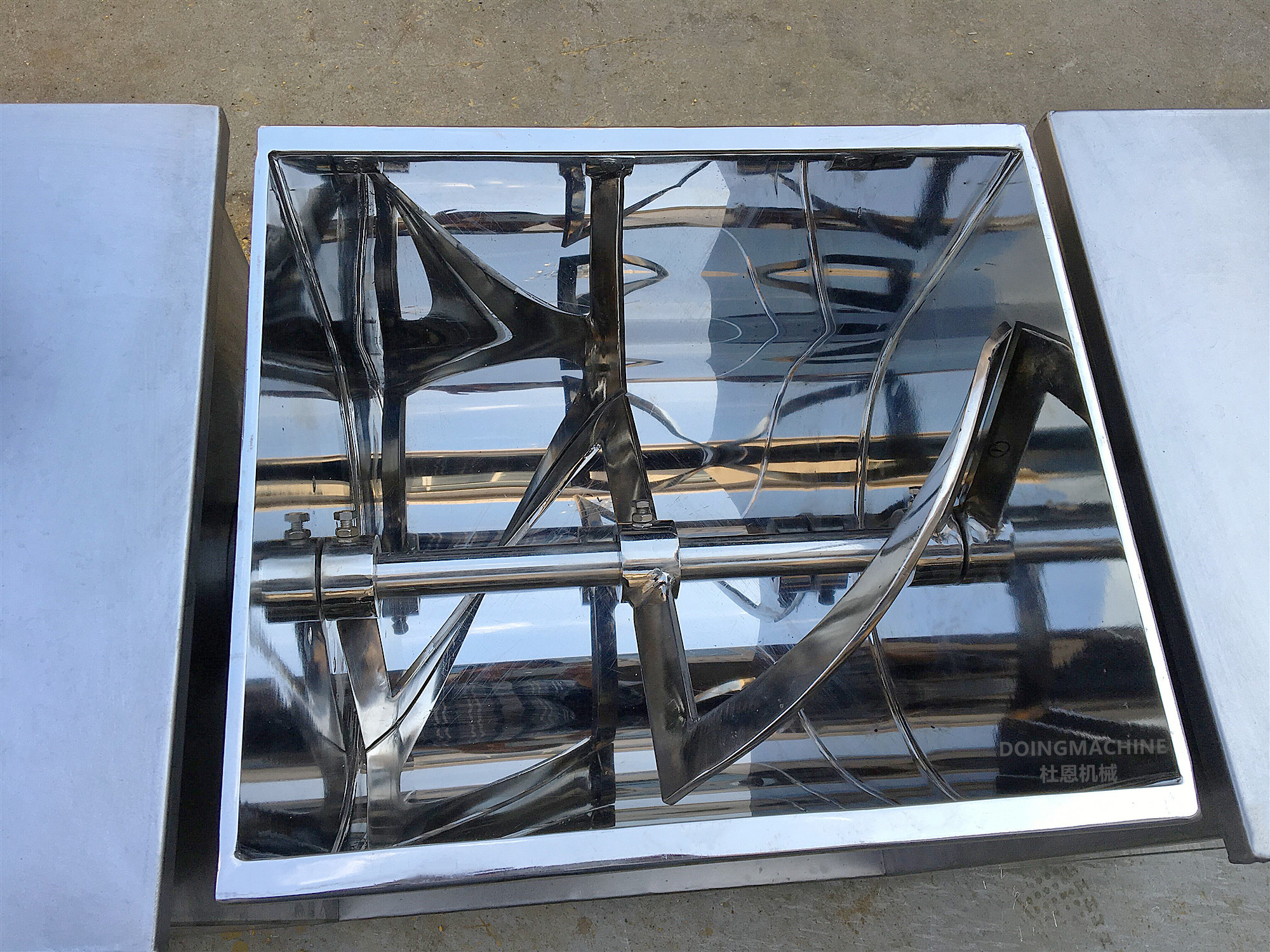

 Single sigma blade |  Double sigma blade |
1. Robust, simple and compact design requires minimum maintenace;
2. Made by SUS304 or SUS 316 and mirror polished to meet GMP pharmaceutic sanitary standards;
3. Special drive shaft sealing design can 100% make sure contamination free of product;
4. The gap between sigma blade and mixing vessel inner wall is less than 3mm;
5. High efficient mixing without dead corner
6. Heating jacket can be equipped for steam, hot water or hot oil
 Mixing chamber with heating jacket |  Single sigma blade |

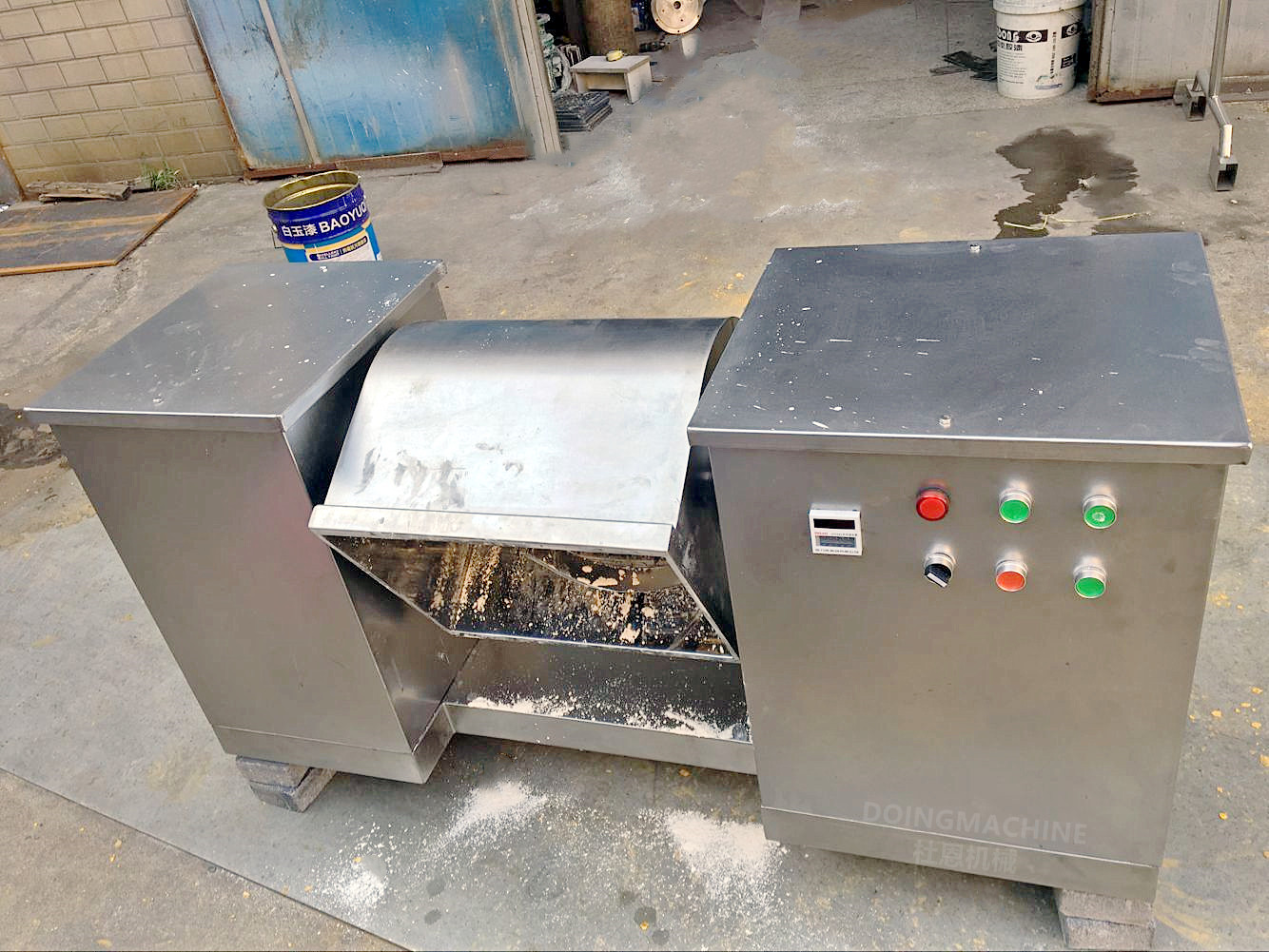

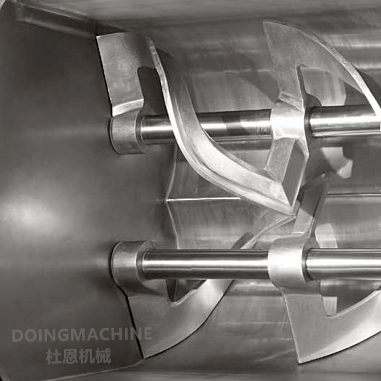

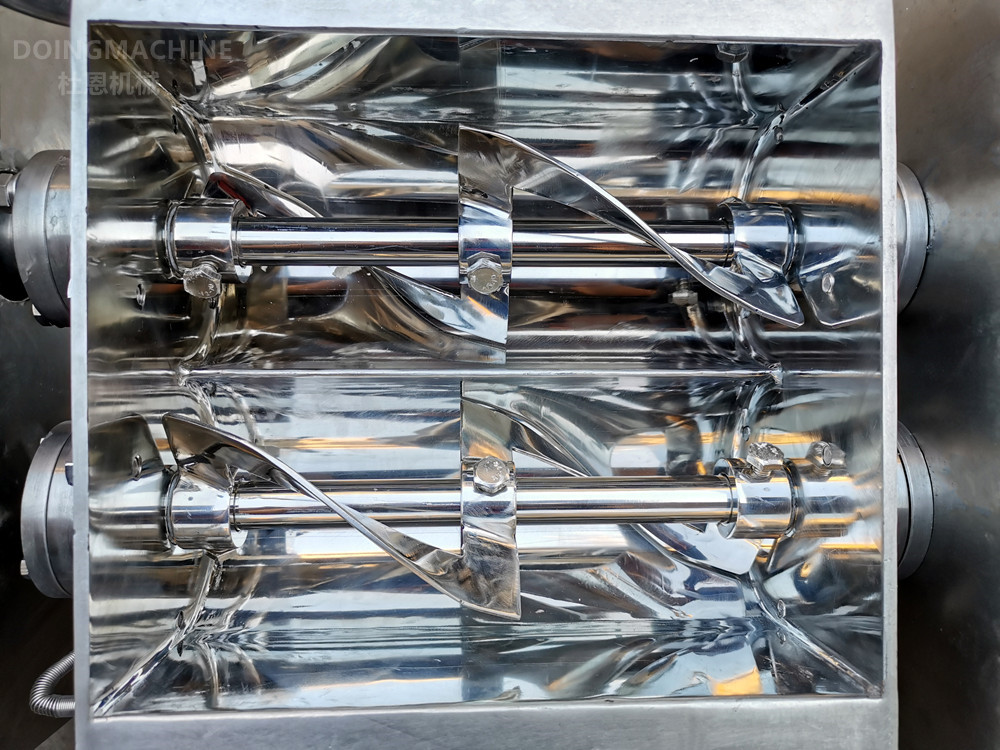

 Double sigma blade |  Discharging |
 Food product |  Chemical product |  Pharmaceutical product |
A: Our sigma batch mixer can be customerized. To work out a detailed proposal or quotation, we have to know the following information:
1) Particle size of product
2) Bulk density of product
3) Mixing capacity
4) Construction material:SUS304 or SUS316L
A: The mixer is packed in plywood box for shipping
A: We have the following standard models:
| Model | CH-5 | CH-10 | CH-50 | CH-100 | CH-300 | CH-400 | CH-500 |
| Volume L | 5 | 10 | 50 | 100 | 300 | 400 | 500 |
| Working volume L | 4 | 8 | 40 | 80 | 240 | 320 | 400 |
| Rotation speed RPM | 24 | 24 | 24 | 24 | 24 | 24 | 24 |
| Mixing motor KW | 0.37 | 0.37 | 1.5 | 4 | 5.5 | 7.5 | 11 |
| Tilt Motor KW | Manual | Manual | 0.37 | 0.75 | 1.1 | 1.1 | 1.5 |
| Dimension LxWxH M | 1.2X0.5X0.95 | 1.4X0.58X1.0 | 1.6X0.6X1.15 | 1.8X0.7X1.2 | 2.1X0.8X1.3 | 2.3X0.8X1.3 | 2.4X0.9X1.3 |
| Gross weight KG | 100 | 150 | 320 | 450 | 550 | 680 | 720 |
