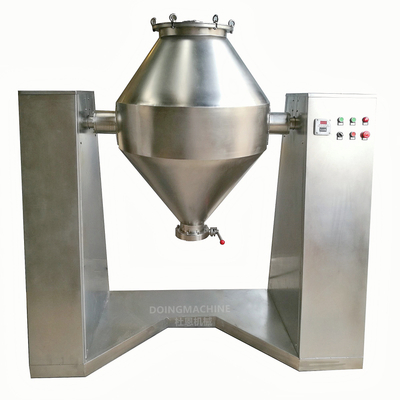

Dry Powder Double Conical Blender

SZH series double conical blender is most often used for intimate mixing of dry powder or small granules with good flowability.
Availability:
Quantity:
Overview


1. Intimately mix dry powder or small granules with good flowability in food, chemical and pharmaceutical industry

2. Mixing chamber volume: 180-2500L
3. GMP design
4. Agitator can be equipped to strengthen the mixing effect
5. Work with vacuum conveyor to for automatic and dust-free


Product Description


SZH series double conical blender is most often used for the intimate dry mixing of free flowing solids. The materials are fed into the mixing chamber via quick-open feed port manually or by vacuum conveyor. With the rotation of mixing chamber, materials can be completely mixed with high degree of homogeneity. Normal cycle times are typically in the range of 10 minutes, however they can be less depending on the difficulty of mixing.


SZH series double conical blender is widely used in pharmaceutical, nutriceutical, chemical and food industries for mixing dry powder or small granules with good flowability. The solids being mixed can vary in bulk density and in percentage of the total mixture.


200L_副本

200L Double conical blender


SY-10

2500L Double conical blender


Technical Features


1. Mirror polished of inner and outer shell to meet GMP standard.
2. No blind angle in the V-shells, no accumulation of materials,high speed I-bar,efficient and short mixing time.
3. Mixing uniformity can reach 99%
4. Plate valve is equipped for discharging
5. Fully integrated motors and controls
6. Can work with vacuum feeding system to create dust-free working condition.
500l-5_副本

Feed port


SY-12

Intensifier bars

500L-4_副本

Discharge valve


SY-4

Working with Vacuum conveyor for feeding


Typical Applications
2_副本

Protein powder


3_副本_副本

Seasoning powder


1_副本

Chemical powder

FAQ

Q: What information should be provided in order to get a proposal or quotation?

A: Our double conical blender can be customerized. To work out a detailed proposal or quotation, we have to know the following information:


1) Particle size of product

2) Bulk density of product

3) Mixing capacity

4) Construction material:SUS304 or SUS316L


Q: How the machine will be delivered ?

A: The mixer is packed in plywood box for shipping


Q: What standard models do you have?

A: We have the following standard models:


Model  SZH-180 SZH-300 SZH-500 SZH-1000 SZH-1500 SZH-2000 SZH-2500
Volume L 180 300 500 1000 1500 2000 2500
Load capacity  kg/batch 40 60 100 200 300 400 500
Mixing time  Min 4-8 6-10 6-10 6-10 6-10 6-10 6-10
Rotating speed  RPM 12 12 12 12 12 12 12
Motor power  KW 1.1 1.1 2.2 4 4 7.5 7.5
Dimension LxWxH M 1.4X0.8X1.8 1.68X0.8X1.8 1.91X0.8X1.9 2.8X1.5X2.4 2.9X1.5X2.5 3.4X1.9X3.5 3.4X1.9X3.6
Rotation height  M 1.8 1.8 1.9 2.4 2.5 3.5 3.6
Gross weight  KG  280 310 550 810 980 2150 2300
