Lab 3D Powder Blender

SYH series Lab 3D powder blender is most often used for highly even mixing of dry powder or small granules with good flowability.
Availability:
Quantity:
Inquire Add to Basket

Overview


1. Highly-even mix dry powder or small granules with good flowability in food, chemical and pharmaceutical industry

2. Mixing chamber volume: 50-1000L
3. GMP design
4. Materials with different bulk density and particle size can be well mixed
5. Can work with vacuum conveyor to achieve automatic feeding and prevent dust


Product Description


The mixing barrel is supported by the driving and driven shafts which are crossed in space and also vertical to each other and are respectively connected by Y-type universal joints, so that the mixing barrel makes unique translational , turning ,rocking and rolling motions in asolid three dimensional space,thereby speeds up the flow and diffusion of the materials being mixed,while avoids the specific-gravity segregation of materials due to the action of centrifugal force in an ordinary mixer,and ensures the materials to reach an ideal mixing within a short time.


SYH series 3D powder mixer is a novel material mixer extensively used in pharmaceutical, chemical, metallurgical, food, light and agricultural industries. This machine can carry out highly even mixing of powders or granules, so that the mixed materials can reach their best effectiveness.

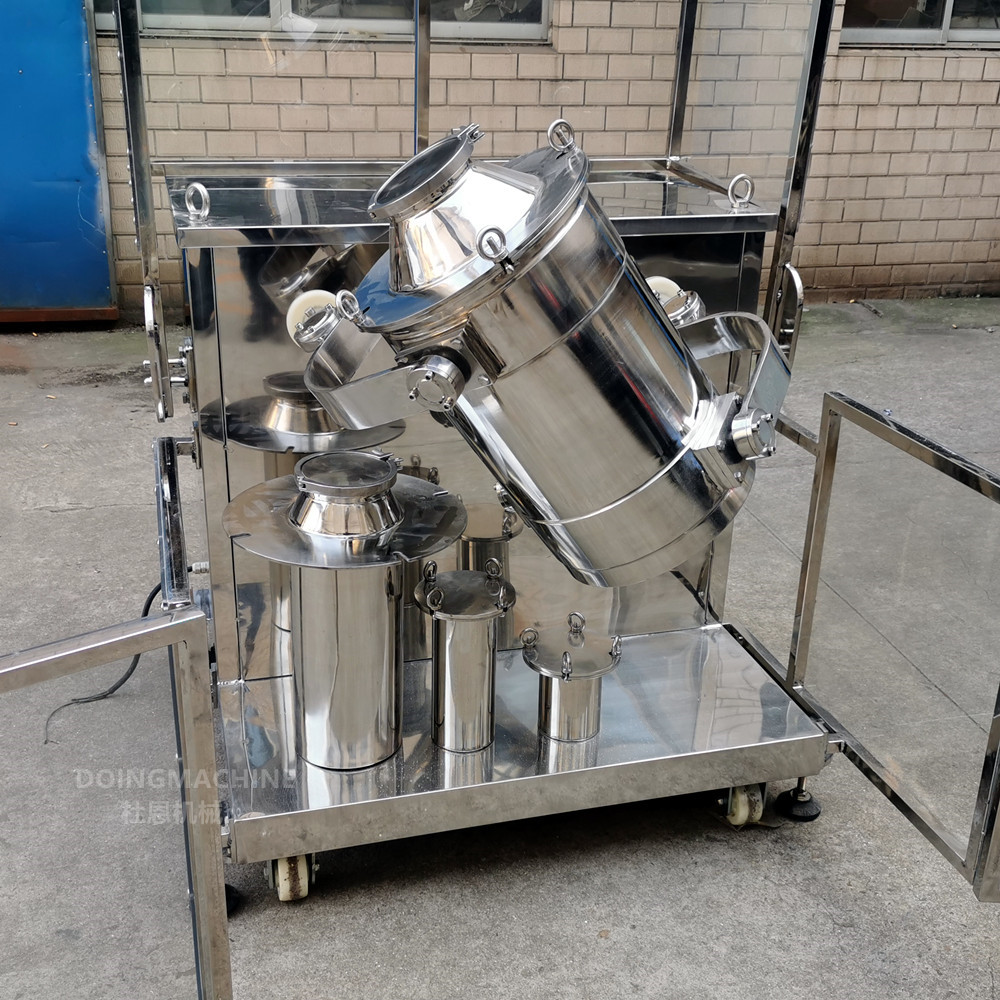

SY-2

Lab 3D blender with different mixing barrels
SY-10

Dismountable mixing barrel


Technical Features


1. It have an unique driven shaft servo mechanism, so that the whole machine makes smooth and reliable operation with less vibration and low noise, the equipment does not need a foundation and features convenient erection and maintenance as well as long service life.

2. It can ensure a good mixing effect and the mixing time is short.The evenness of mixing reaches above 99.5%
3. Its charge coefficient reaches 85%, more than double that of an ordionary rotary mixer.
4. Thanks to its low height and small rotating space,it usually does not need skip floor.
5. The eccentric cone desigh of the discharge end of the mixing barrel ensures discharging free of dead corner and residue,so it is easy to clean and conforms the requirements of GMP.
SY-9

Feed port

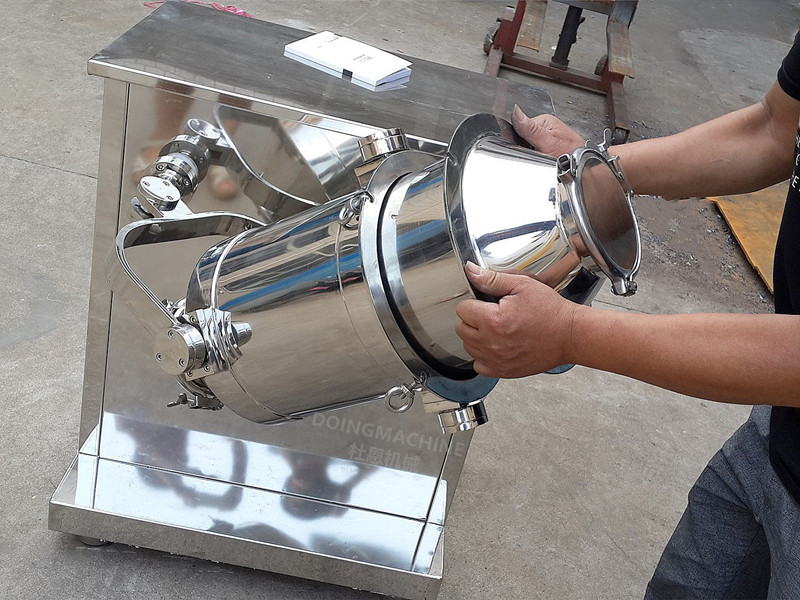

SY-8

Dismountable mixing barrel

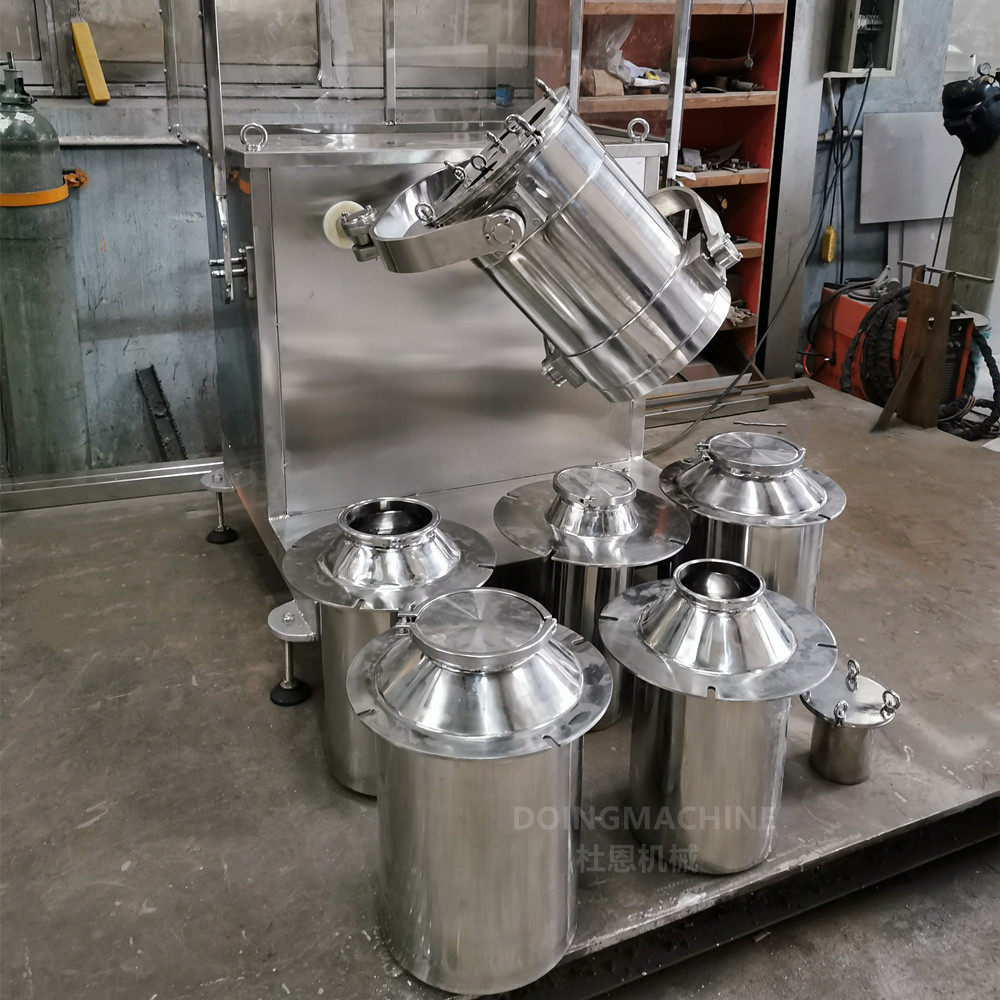

SY-7

Different sizes of mixing barrel

SY-3

Safety cover

Typical Applications
2_副本

Protein powder
600-8

Pharmaceutical powder
1_副本

Chemical powder
FAQ

Q: What information should be provided in order to get a proposal or quotation?

A: Our 3D mixer can be customerized. To work out a detailed proposal or quotation, we have to know the following information:


1) Particle size of product

2) Bulk density of product

3) Mixing capacity

4) Construction material:SUS304 or SUS316L


Q: How the machine will be delivered ?

A: The mixer is packed in plywood box for shipping


Q: What standard models do you have?

A: We have the following standard models:


Model SYH-20 SYH-50 SYH-100 SYH-200 SYH-400 SYH-600
Mixing chamber volume  L 20 50 100 200 400 600
Max working volume  L  18 45 90 180 360 540
Max load capacity  KG/batch 10 25 50 100 200 300
Rotation speed  RPM 0-20 0-20 0-15 0-15 0-12 0-12
Motor power  KW 0.75 1.1 1.5 2.2 4 5.5
Dimension  L x W x H  (M)  0.7x1x1.1 0.85x1.4x1.2 1.25x1.7x1.5 1.35x1.4x1.6 1.65x2.1x1.95 1.75x2.2x2.35
Gross weight  KG  200 300 800 1100 1200 1500
