Horizontal Ribbon Mixer Blender

WLDH series horizontal double blade ribbon mixer blender is widely used to mix free-flowing powders, granules, small liquid additives to achieve paste and slurry product in food, chemical, and construction line.
Availability:
Quantity:
Overview


1.For mixing/blending powders, dry solids, pastes and slurries in various industries ;

2. Mixing vessel volume: 300-5000L;

3. GMP design ;

4. Liquid spray system and heating jacket can be equipped.


Product Description

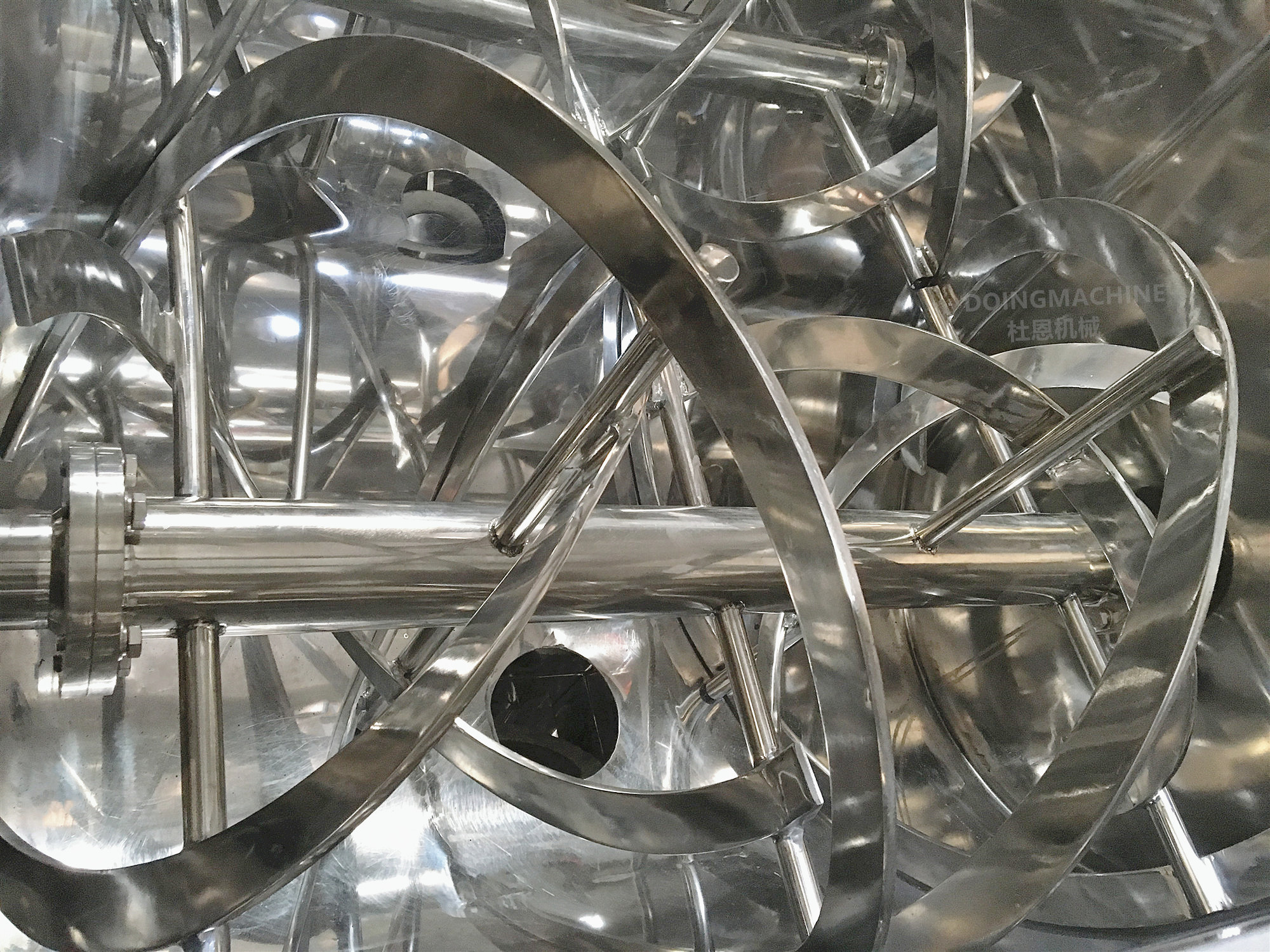

WLDH series horizontal double blade ribbon mixer blender consists of a U-shaped horizontal trough and a specially fabricated agitator. A ribbon agitator consists of a set of inner and outer helical agitator. The outer ribbon moves materials in one direction and the inner ribbon moves the materials in the opposite direction.The ribbon ratates at approx. 45 RPM moves materials both radially and laterally to insure thorough blends in short cycle times.


WLDH series horizontal double blade ribbon mixer blender is widely used to mix free-flowing powders, granules, small liquid additives to achieve paste and slurry product in food, chemical, and construction line.

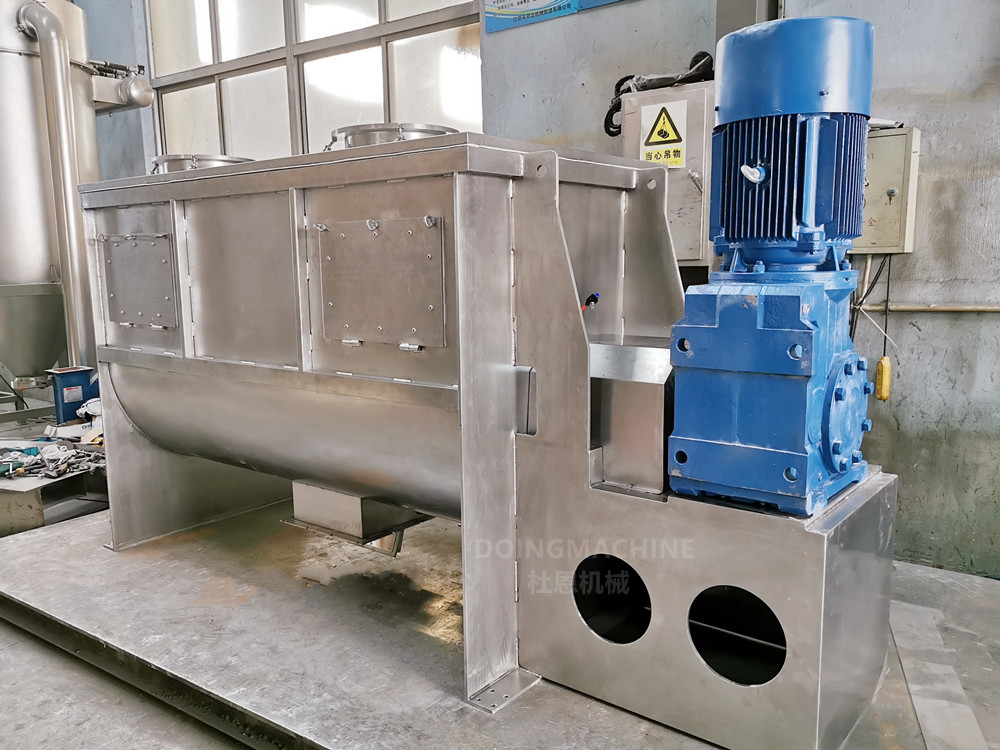

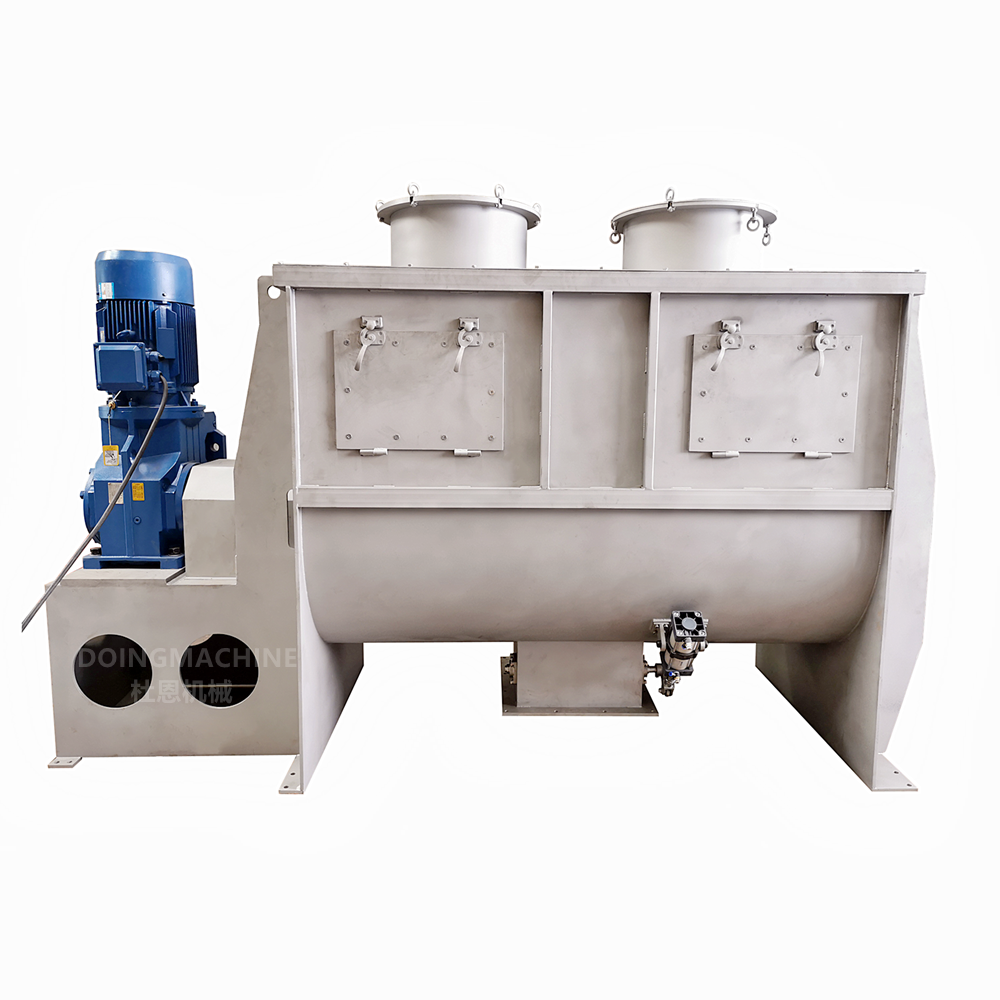

S-3

1000L ribbon blender

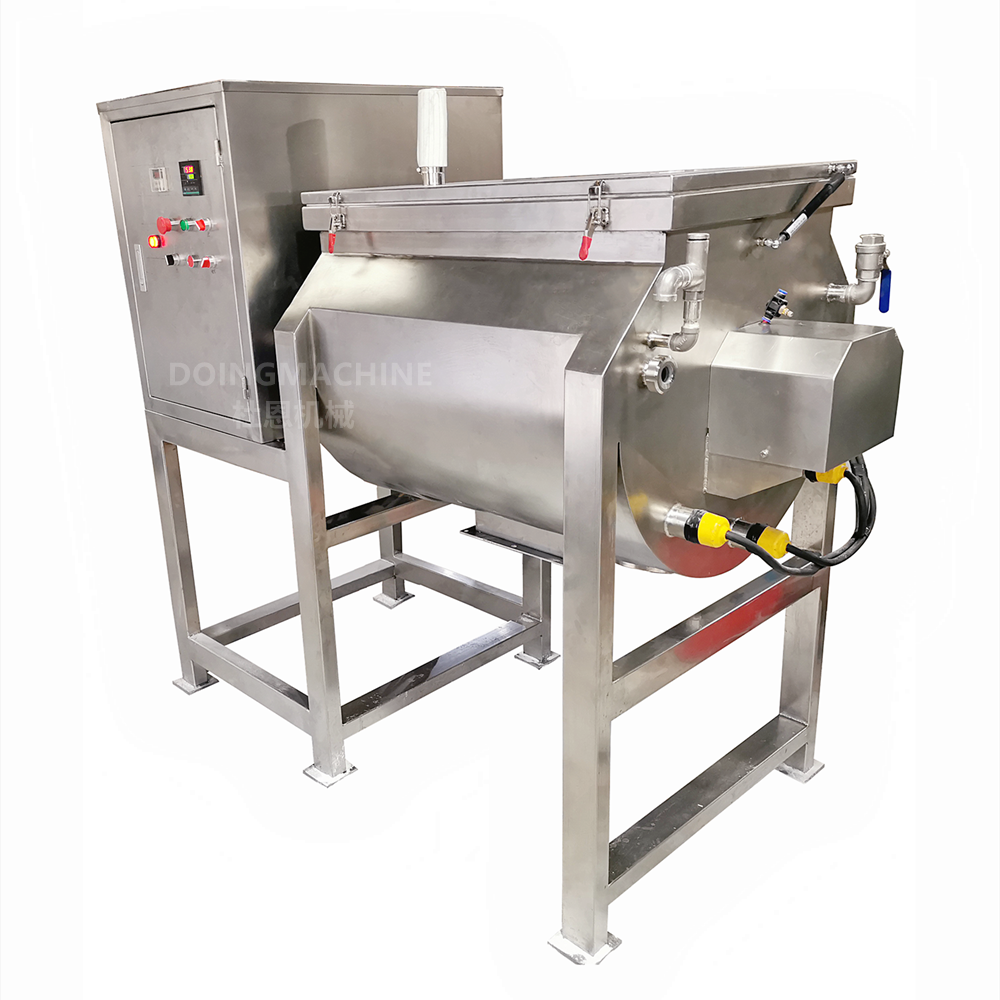

S-1

300L ribbon blender with heating jacket


Technical Features


1) Strong and fast mixing: Strong and fast mixing can be achieved due to effective drive design and variable speed blending.

2) High-degree of homogeneity: When material is added at the rate of 0.1%, the homogeneity can reach 98% in short time.

3) Heating jacket: A heating jacket can be equipped as an option in the mixing tank shell for heating or drying process. The heating medium can be steam, hot water or hot oil. Design pressure is 0.3 Mpa.

4) Liquid spray nozzle: Spray nozzle can be equipped as an option to add liquid additives which can be evenly sprayed onto the mixture.

5) Well bearing sealing: Shaft sealing is the combination of Teflon packing sealing and air-tight sealing to make sure long life-span.

6) Automatic discharging valve: The combined discharge valve is pneumatic planer flap valve. The flap plate can perfectly match the mixing tank inner wall to make sure no dead corner.

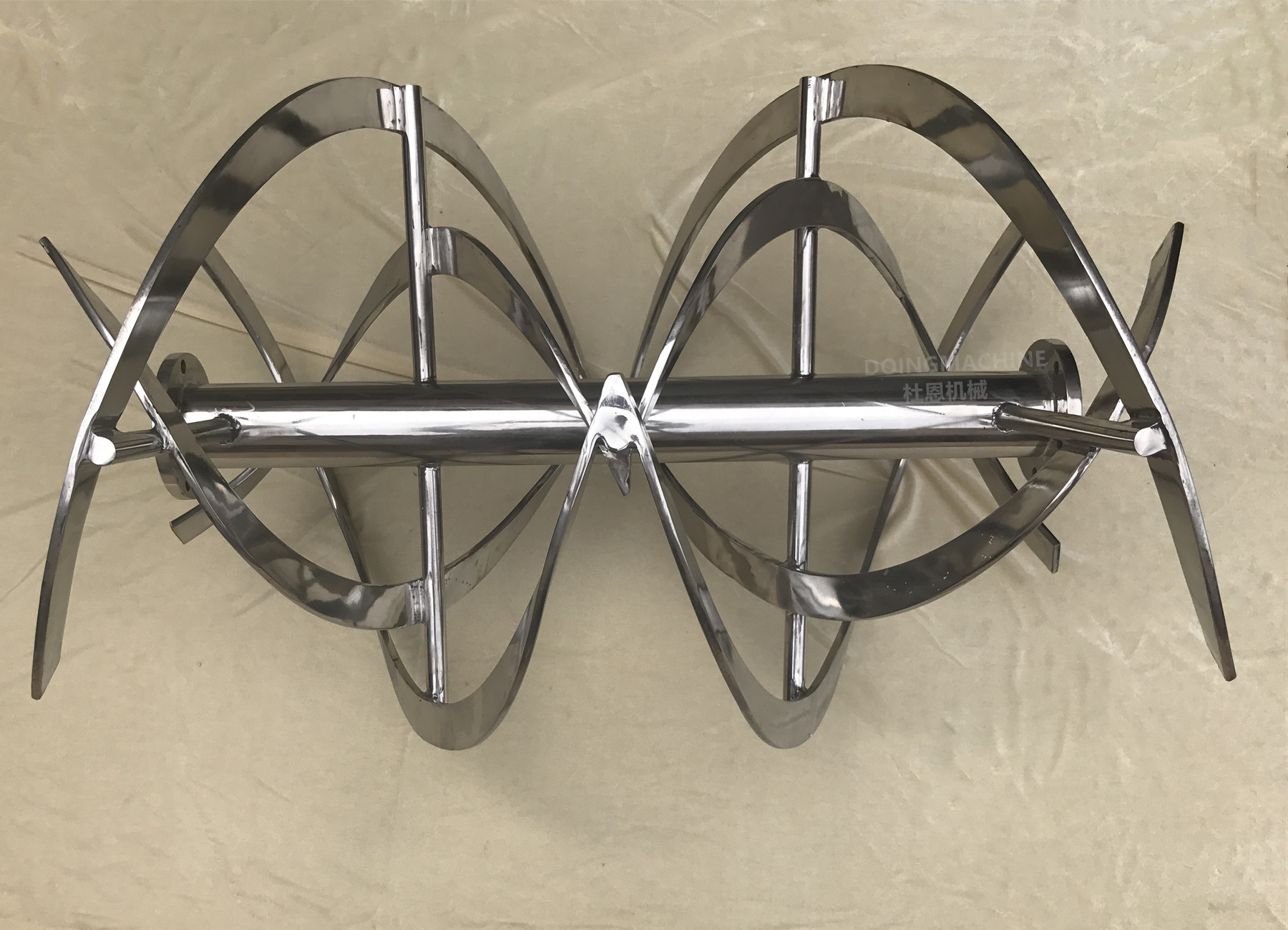

SY-4

Dismountable ribbon agitator

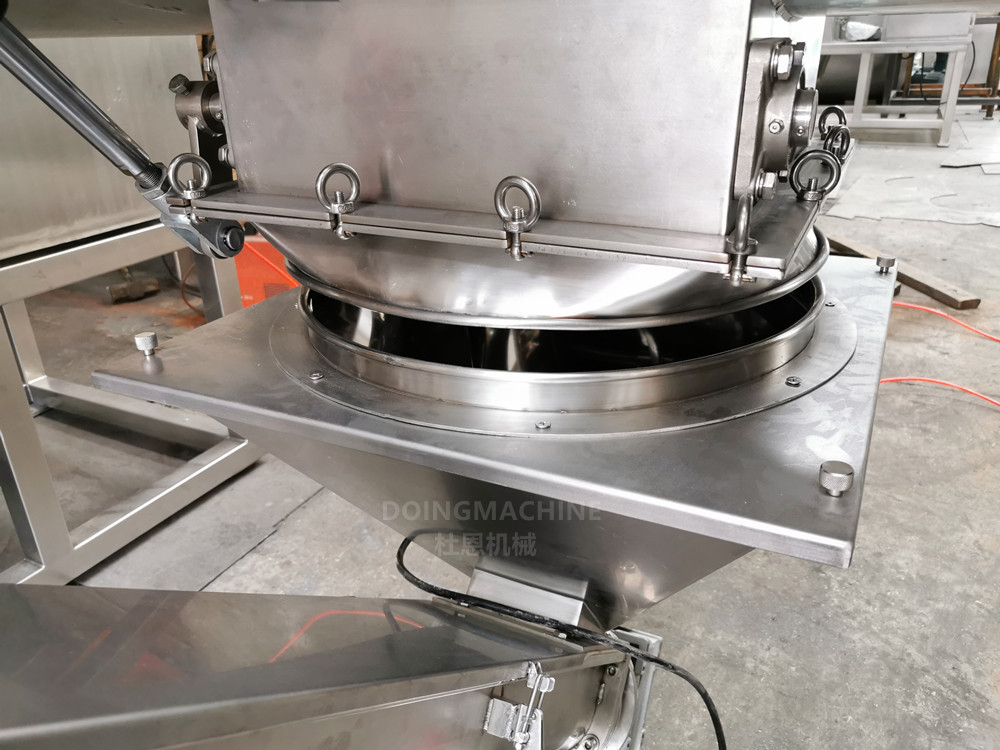

S-6

Pneumatic discharge valve

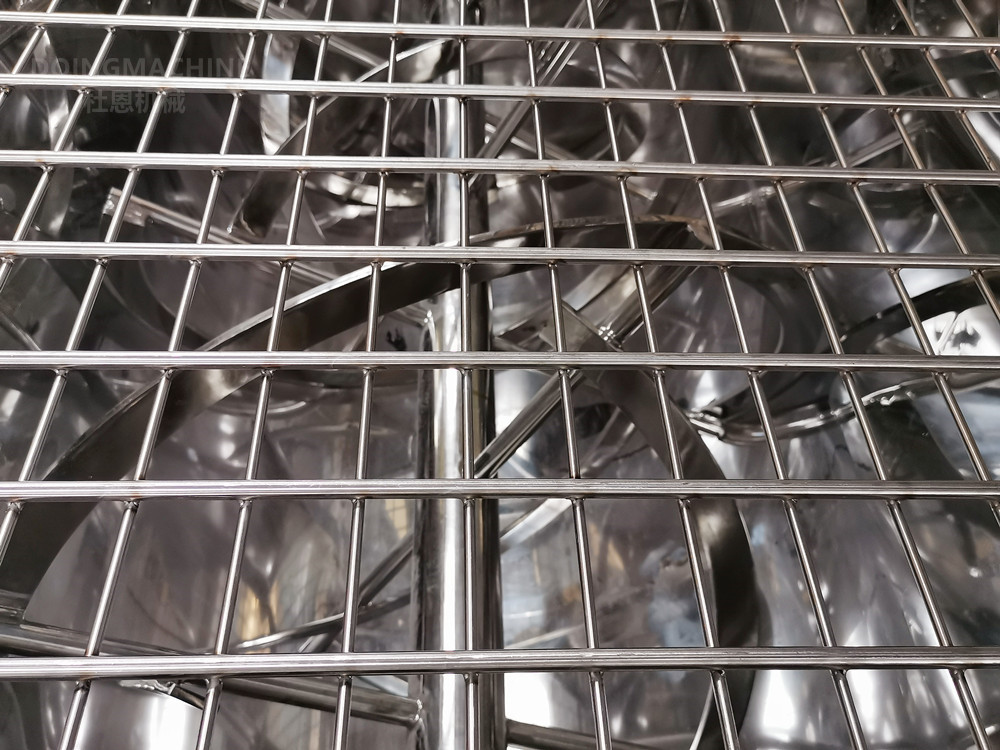

S-7

Blending chamaber safety cover

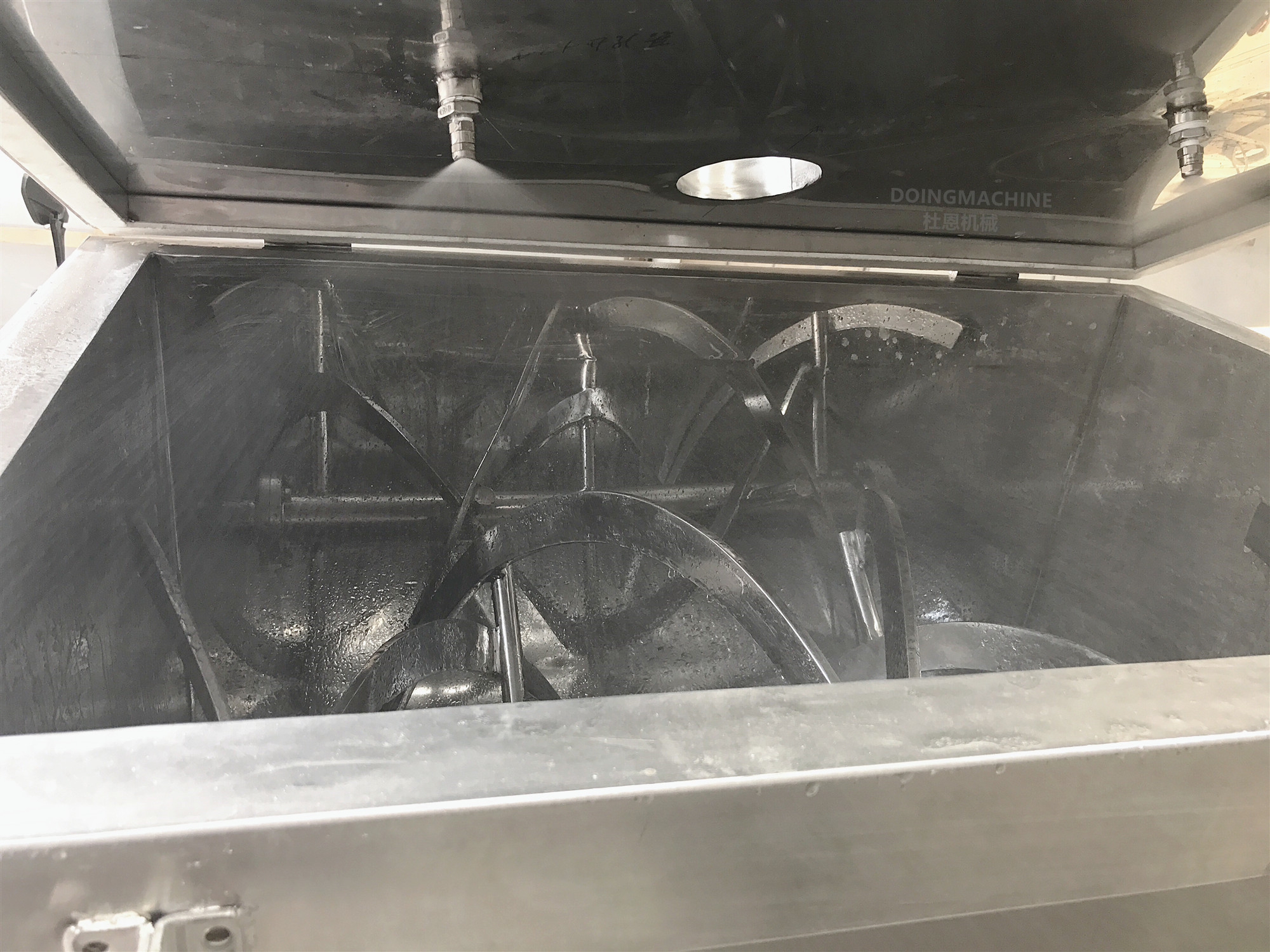

SY-9

Liquid spary nozzles

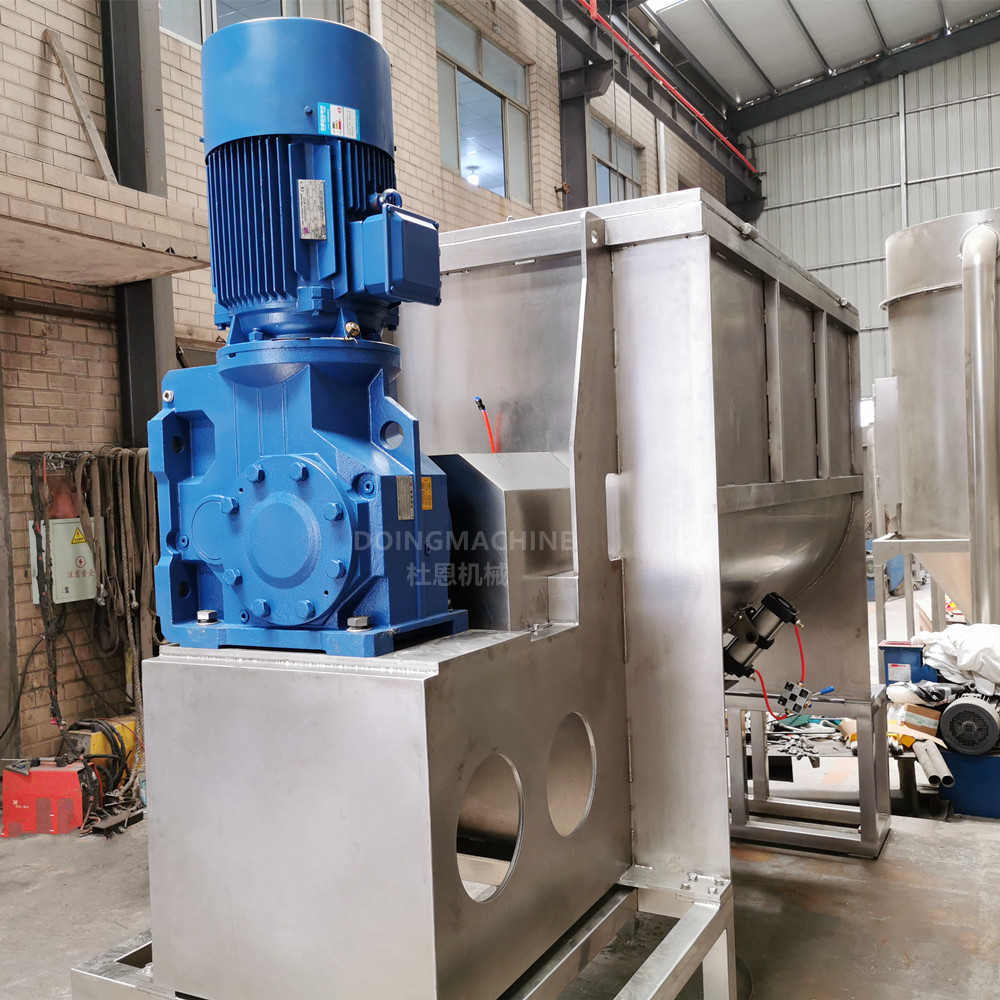

S-4Gear box

s-7Electric heating jacket


Typical Applications
2_副本

Protein powder


3_副本_副本

Seasoning powder


1_副本

Chemical powder

FAQ

Q: What information should be provided in order to get a proposal or quotation?

A: Our Ribbon mixer blender can be customerized. To work out a detailed proposal or quotation, we have to know the following information:


1) Particle size of product

2) Bulk density of product

3) Mixing capacity

4) Construction material:SUS304 or SUS316L


Q: How the machine will be delivered ?

A: The mixer is packed in plywood box for shipping


Q: What standard models do you have?

A: We have the following standard models:


Model
WLDH-300
WLDH-500
WLDH-1000
WLDH-2000
WLDH-3000
WLDH-5000
Volume L
300
500
1000
2000
3000
5000
Capacity kg/batch
180
300
600
1200
1800
3000
Rotation speed RPM
65
65
48
35
35
27
Motor power KW
4
7.5
11
15
18.5
30
Dimension  LxWxH M
1.9X0.85X1
2.5X1X1.2
2.9X1.1X1.4
3.4X1.5X1.65
3.7X1.6X1.85
4.3X1.9X2.1
Weight kg
600
900
1300
2000
2600
4800
