1. Intimately mix dry powder or small granules with good flowability in food, chemical and pharmaceutical industry
2. Mixing chamber volume: 180-2500L
3. GMP design
4. Agitator can be equipped to strengthen the mixing effect
5. Work with vacuum conveyor to for automatic and dust-free
SZH series double conical powder mixer blender is widely used in pharmaceutical, nutriceutical, chemical and food industries for mixing dry powder or small granules with good flowability. The solids being mixed can vary in bulk density and in percentage of the total mixture.

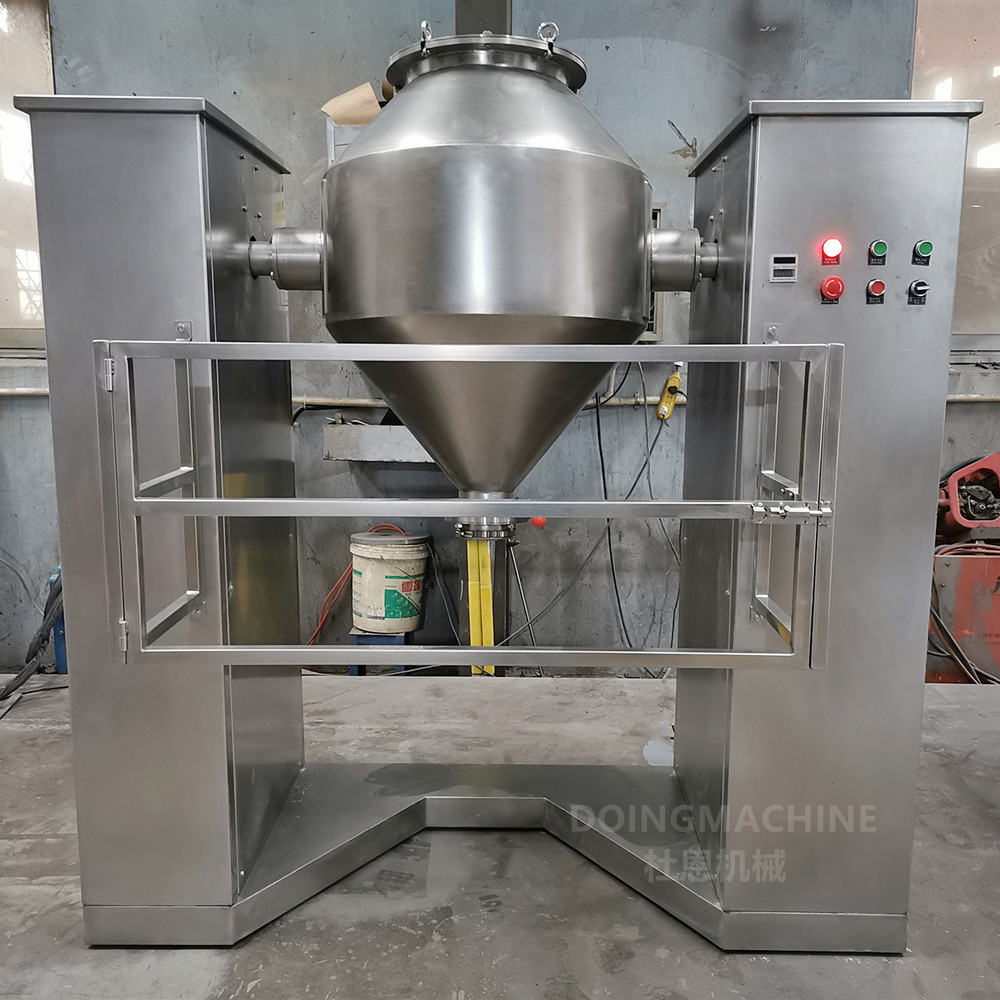

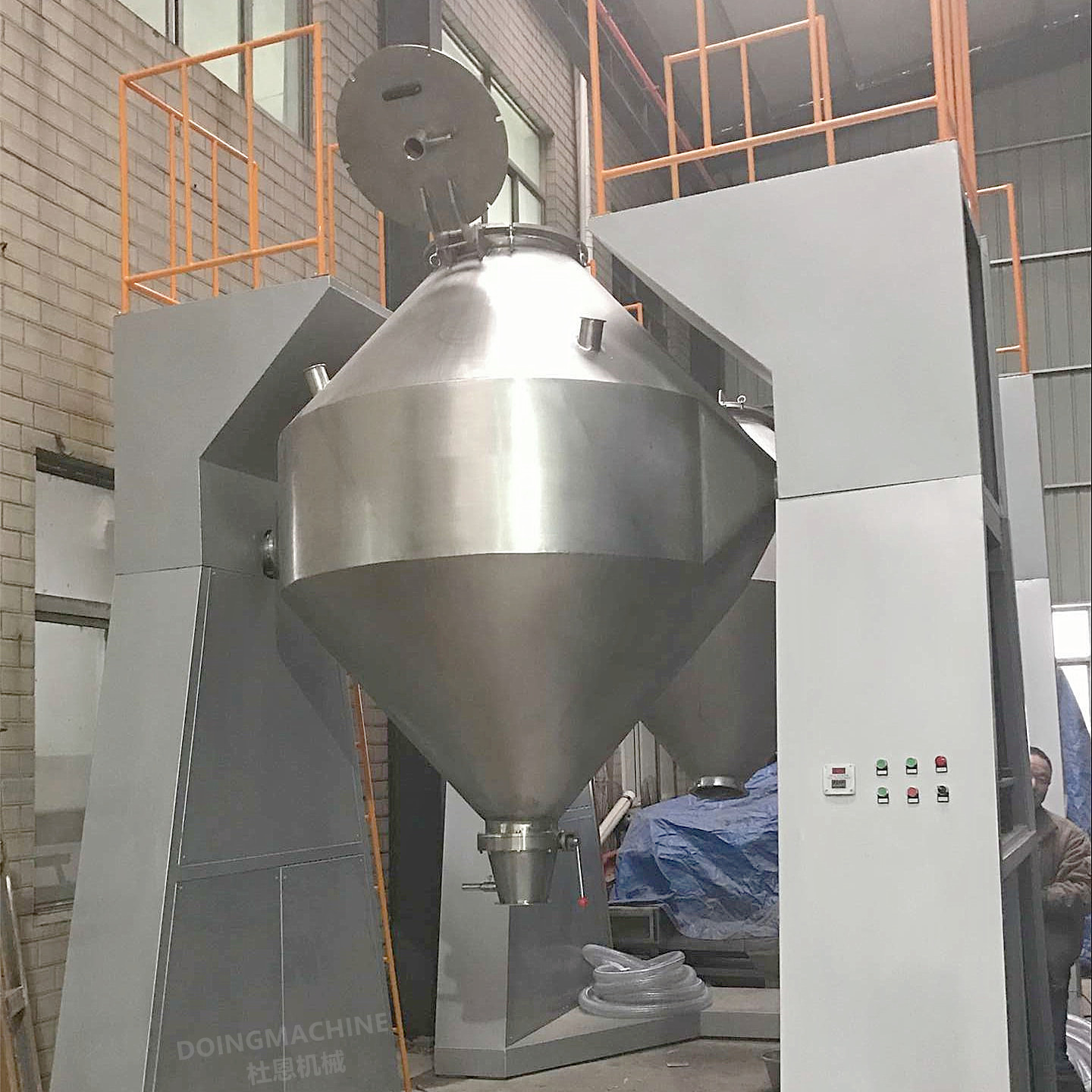

 200L Double conical mixer |  2500L Double conical mixer |

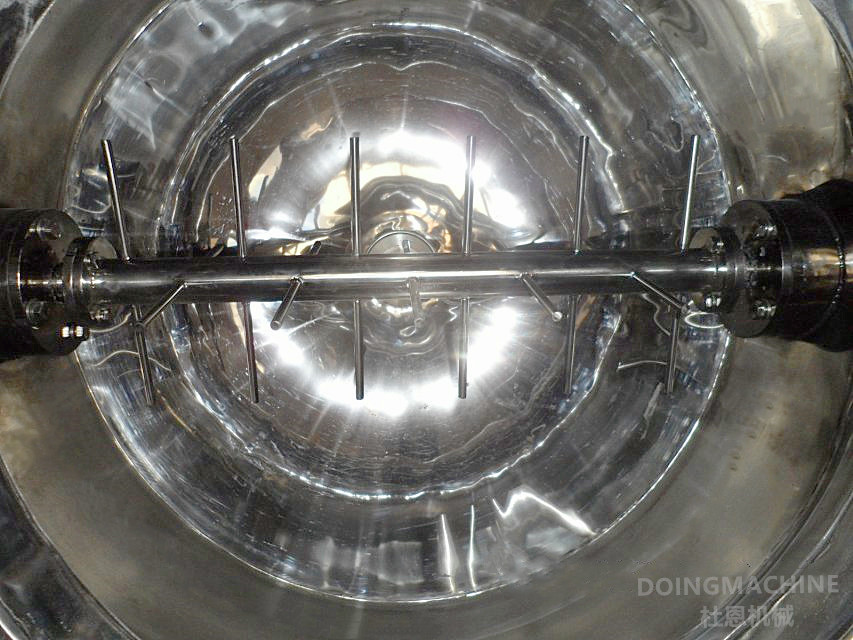

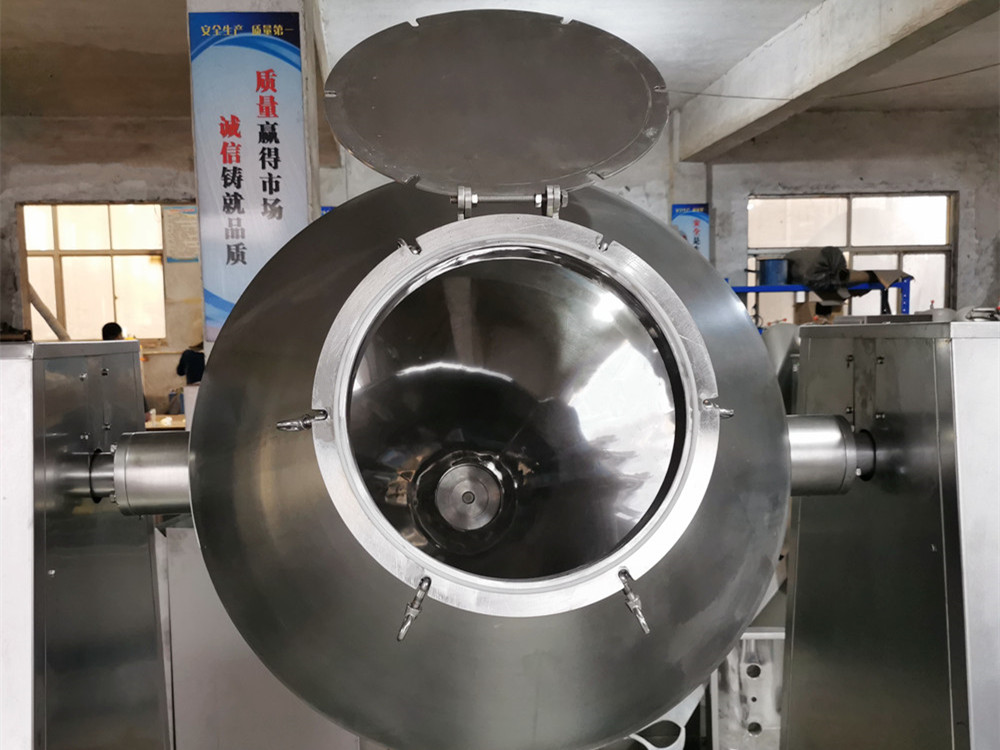

 Feed port |  Intensifier bars |

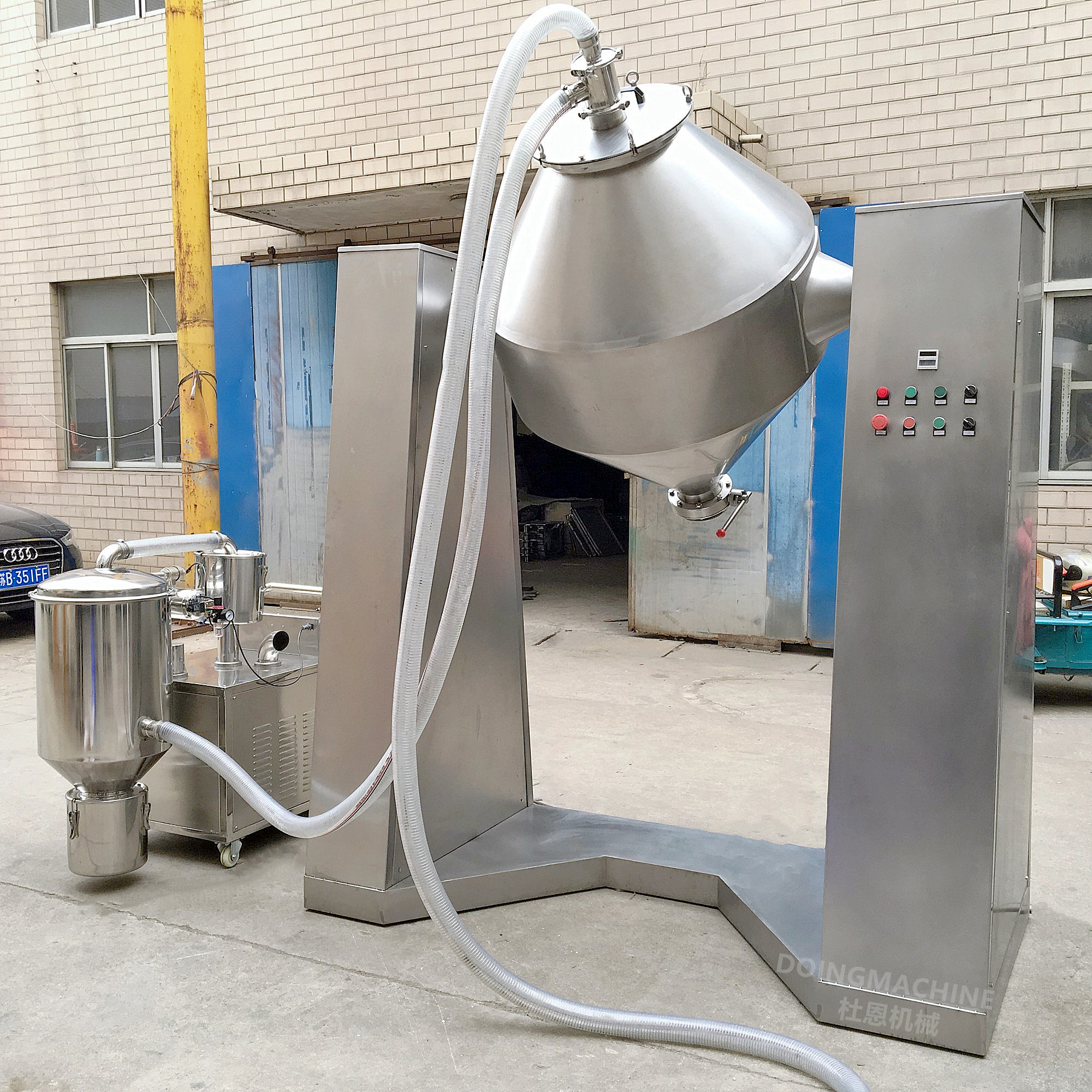

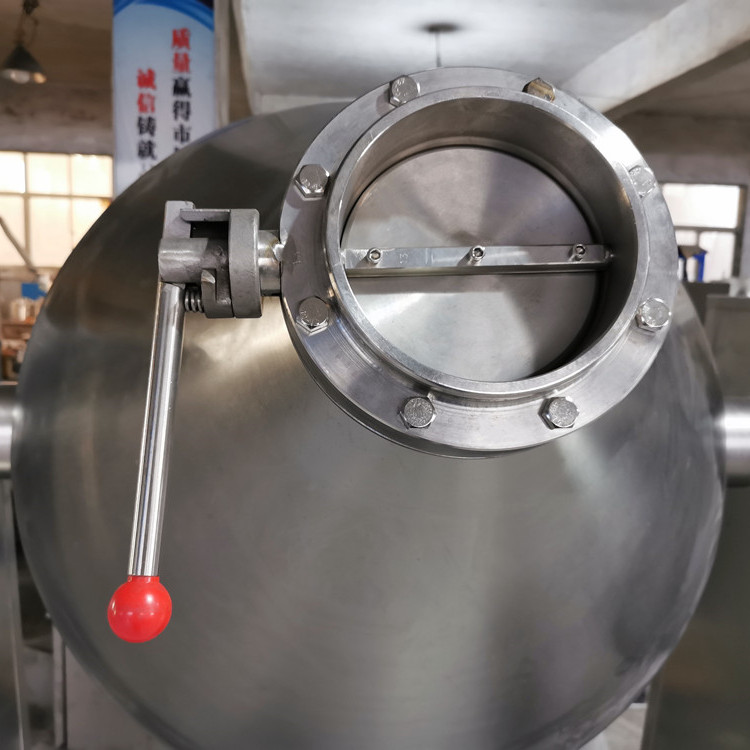

 Discharge valve |  Working with Vacuum conveyor for feeding |
 Protein powder |  Seasoning powder |  Chemical powder |
A: Our double cone mixer is customerized. To work out a detailed proposal or quotation, we have to know the following information:
1) Particle size of product
2) Bulk density of product
3) Mixing capacity
4) Construction material:SUS304 or SUS316L
A: The mixer is packed in plywood box for shipping
A: We have the following standard models:
| Model | SZH-180 | SZH-300 | SZH-500 | SZH-1000 | SZH-1500 | SZH-2000 | SZH-2500 |
| Volume L | 180 | 300 | 500 | 1000 | 1500 | 2000 | 2500 |
| Load capacity kg/batch | 40 | 60 | 100 | 200 | 300 | 400 | 500 |
| Mixing time Min | 4-8 | 6-10 | 6-10 | 6-10 | 6-10 | 6-10 | 6-10 |
| Rotating speed RPM | 12 | 12 | 12 | 12 | 12 | 12 | 12 |
| Motor power KW | 1.1 | 1.1 | 2.2 | 4 | 4 | 7.5 | 7.5 |
| Dimension LxWxH M | 1.4X0.8X1.8 | 1.68X0.8X1.8 | 1.91X0.8X1.9 | 2.8X1.5X2.4 | 2.9X1.5X2.5 | 3.4X1.9X3.5 | 3.4X1.9X3.6 |
| Rotation height M | 1.8 | 1.8 | 1.9 | 2.4 | 2.5 | 3.5 | 3.6 |
| Gross weight KG | 280 | 310 | 550 | 810 | 980 | 2150 | 2300 |
