Food Grade Screw Conveyor

LS series screw conveyor is one of the most reliable and cost effective methods for transporting bulk materials.
Availability:
Quantity:
Overview


1. Transport bulk materials from place to place within a factory

2. Conveying capacity: 100-5000 kg/h

3. Inclination angle: 30-60 degree

4. Conveying length: ≤ 10 meters

5. GMP design


Product Description


LS series helix screw conveyor, which usually consists of  screw, conveyor tube, drive motor, hopper, flow-promotion device, sensor and controller, is one of the most reliable and cost effective methods for transporting bulk materials from one point to another in almost every industry.




SY-1
15


Technical Features


1. Dust free operation: The screw conveyor is totally sealed during operation and no air is used as conveying medium

   2. Easy to clean: The conveying system can be easily dismantled for cleaning

   3. Wide application: Screw conveyor is capable of handling a great variety of bulk materials from sluggish to free-flowing

   4. GMP standard: The system is made by stainless steel and mirror polished. No dead corners for cleaning.

   5. Low noise and power consumption

SY-4

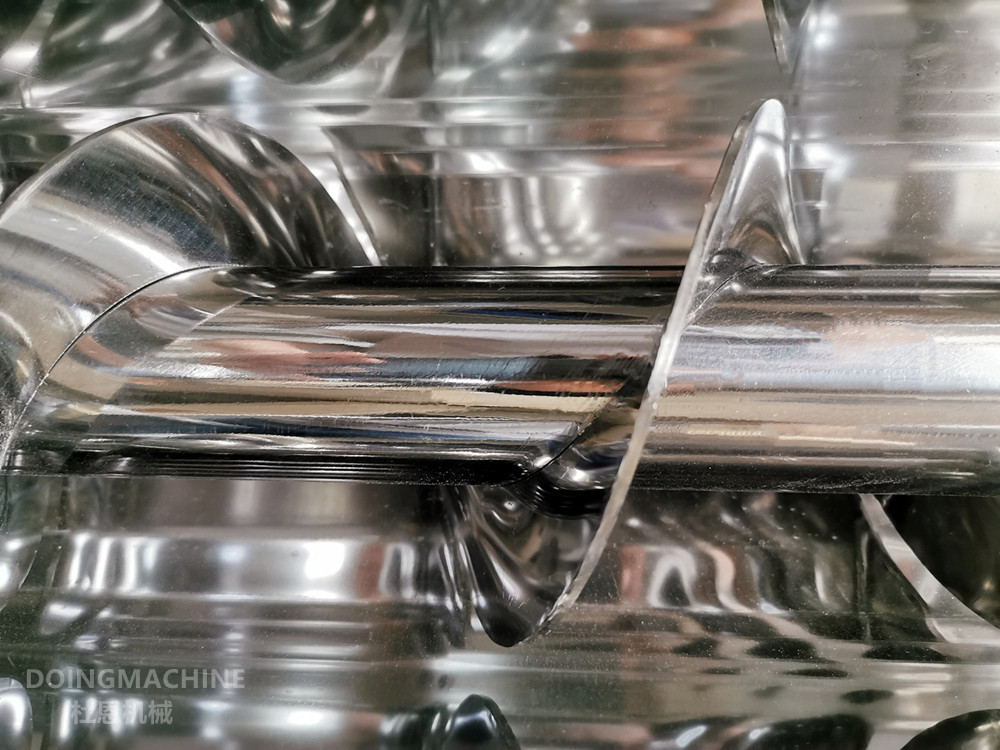

Mirror polished screw


SY-5

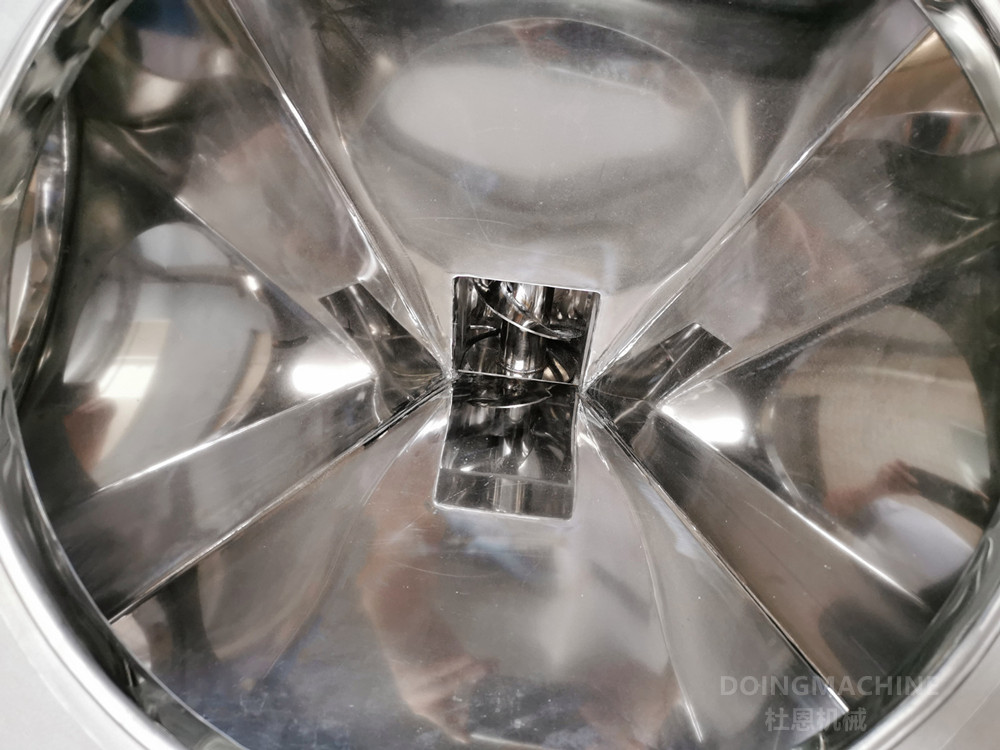

Hopper

SY-10

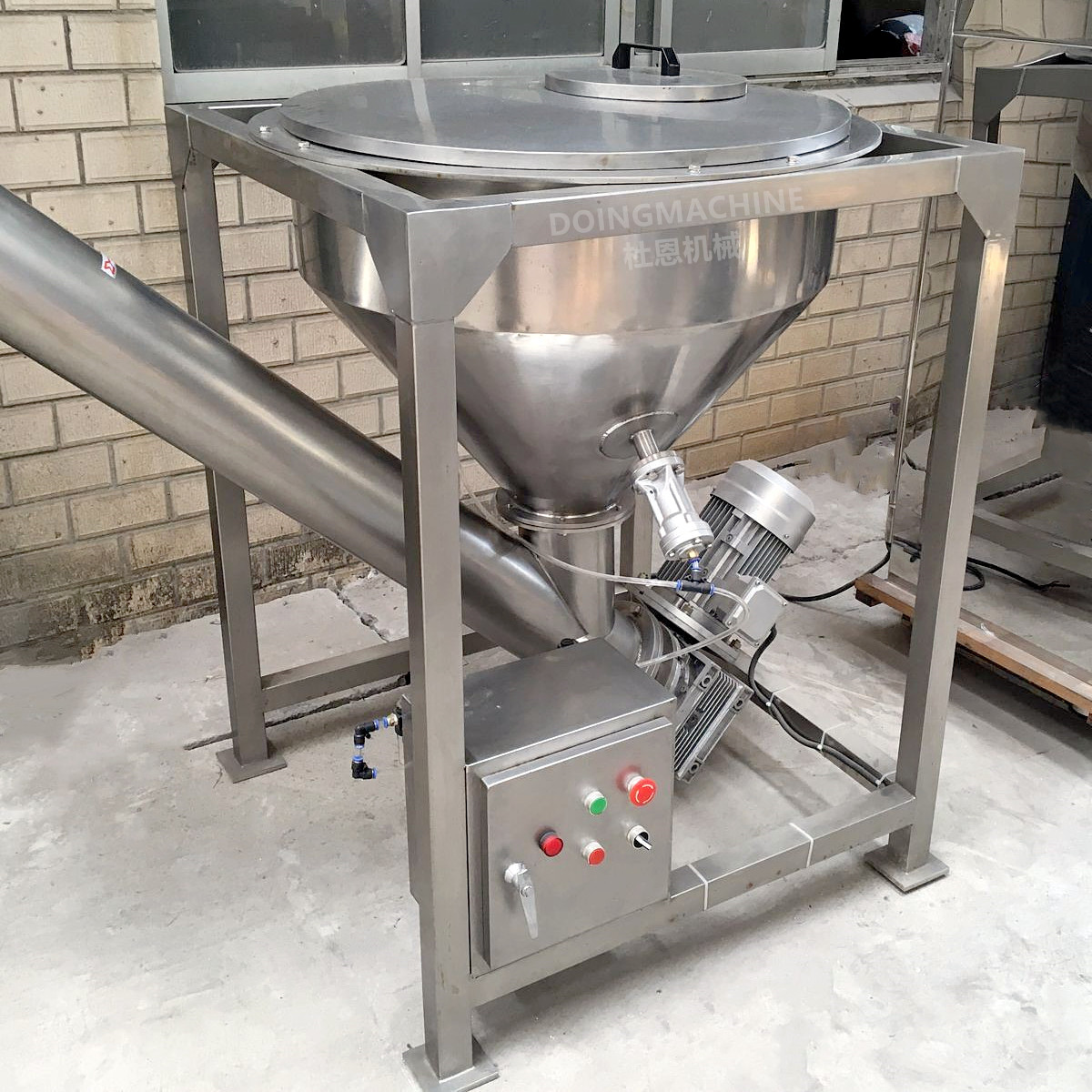

Drive motor


10

U-shape screw conveyor-easy for cleaning


Typical Applications
600-1_副本

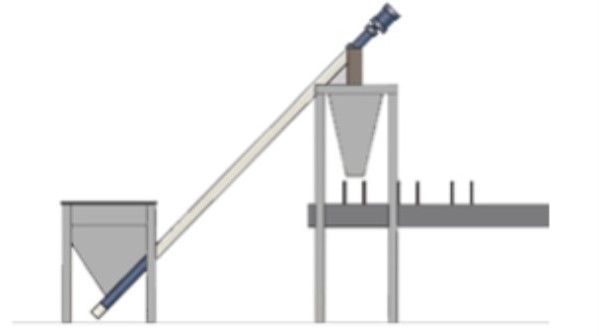

Conveying to packing machine


QQ图片20190416222014_副本_副本

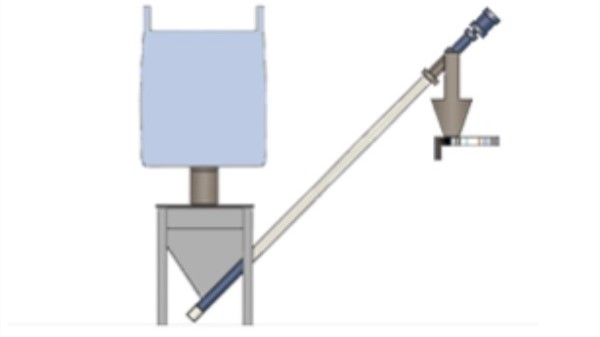

Controlled dosing from bulk bags


QQ图片20190416222056_副本_副本

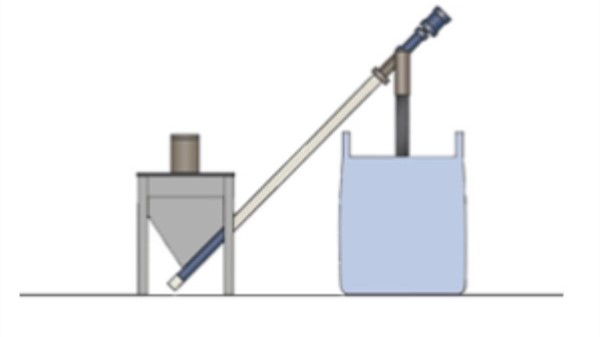

Filling bulk bags

FAQ

Q: What information should be provided in order to get a proposal or quotation?

A: Our Helix screw conveyor is customerized. Before we can work out a detailed quotation, we have to know the following information:


1) What product you are going to convey

2) Product particle size and bulk density

3) Conveying distance and height

4) Conveying capacity in kg/h


Q: How the machine will be delivered ?

A: The conveyor is packed in plywood box for shipping


Q: What standard models do you have?

A: We have the following standard models:


Model  LS-114 LS-141 LS-159 LS-168
Max conveying capacity M3/h  3 5 6 8
Motor power KW 1.5 2.2 3 4
Conveyor pipe diameter mm  114 141 159 168
Rotation speed RPM  20-140 20-140 20-140 20-140
Hopper volume L 200 200 200 200
