Flexible Shaftless Screw Conveyor

KLS series flexible shaftless screw conveyor is the reliable and cost effective way of transferring dry bulk solids from one point to another within a factory.
Availability:
Quantity:
Overview


1. Transfer dry bulk solids from one point to another by using shaftless screw and flexible tube

2. Conveying capacity: 100-3000 kg/h

3. Conveying length:  ≤ 10 meters

4. Conveying height: ≤ 6 meters

5. GMP design


Product Description


KLS series flexible screw auger conveyor, which usually consists of interchangeable shaftless screw, flexible conveyor tube, drive motor, hopper, flow-promotion device, sensor and controller, is one of the most reliable and cost effective methods for transferring dry bulk solids from one point to another within a factory. It can satisfy the most diverse and demanding end-use requirements.

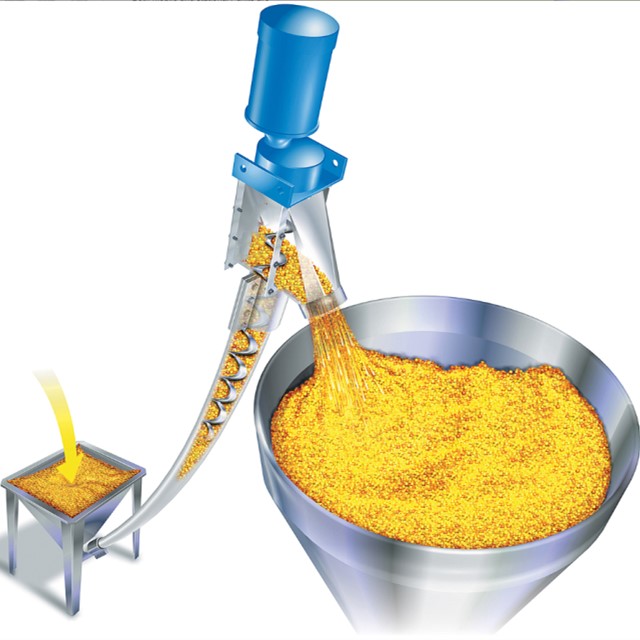

640-1

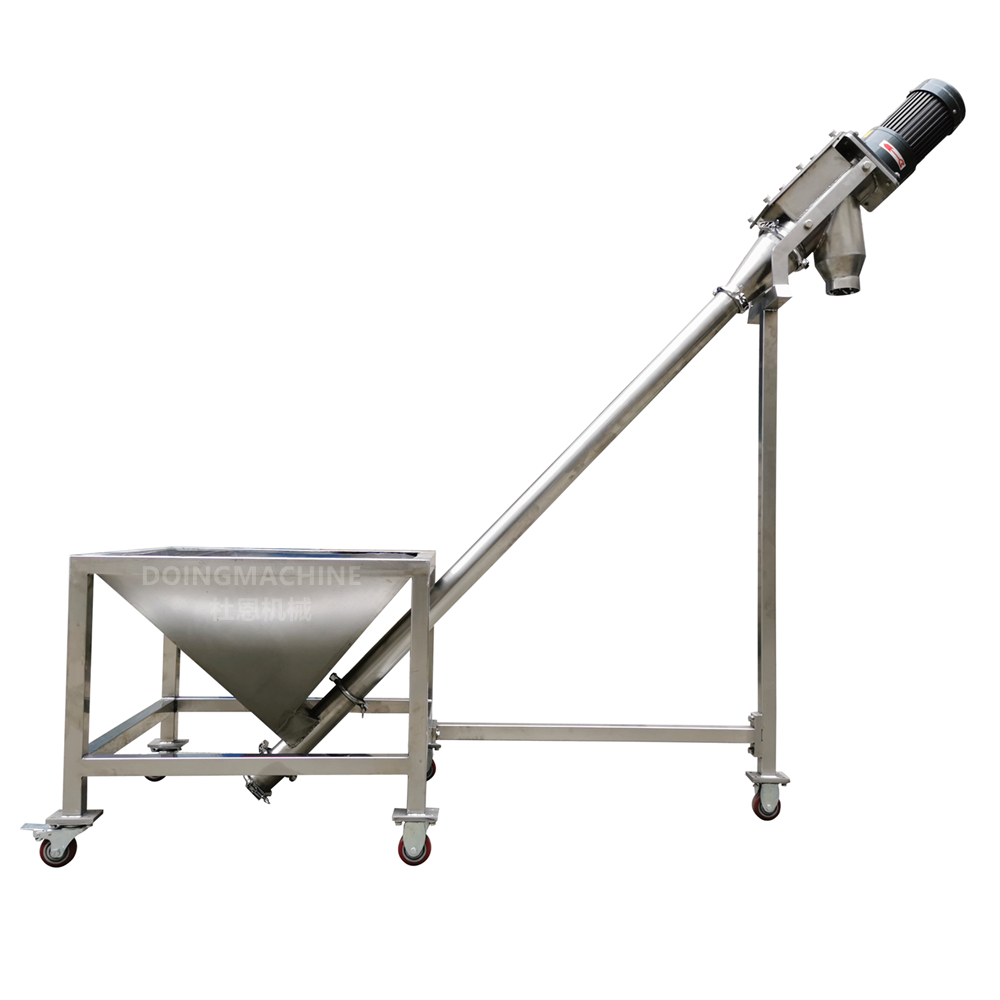

SY-1-1


Technical Features


1. Dust free operation: The flexible screw conveyor is totally sealed during operation and no air is used as conveying medium

   2. Easy to clean: The conveying system can be easily dismantled for cleaning

   3. Small foot print: The conveying soft tube takes up little or no floor space within your facility

   4. Easy to install: The conveying system is connected by quick-open clamps which makes the installation very easy

   5. GMP standatrd: The system is made by stainless steel and mirror polished. No dead corners for cleaning.

   6. Low noise and power consumption

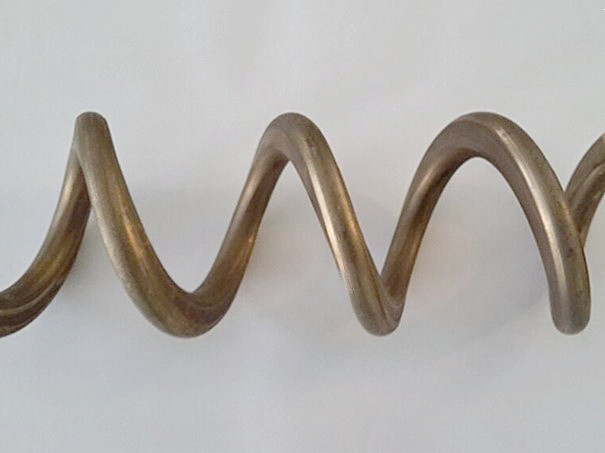

7

Shaftless screw

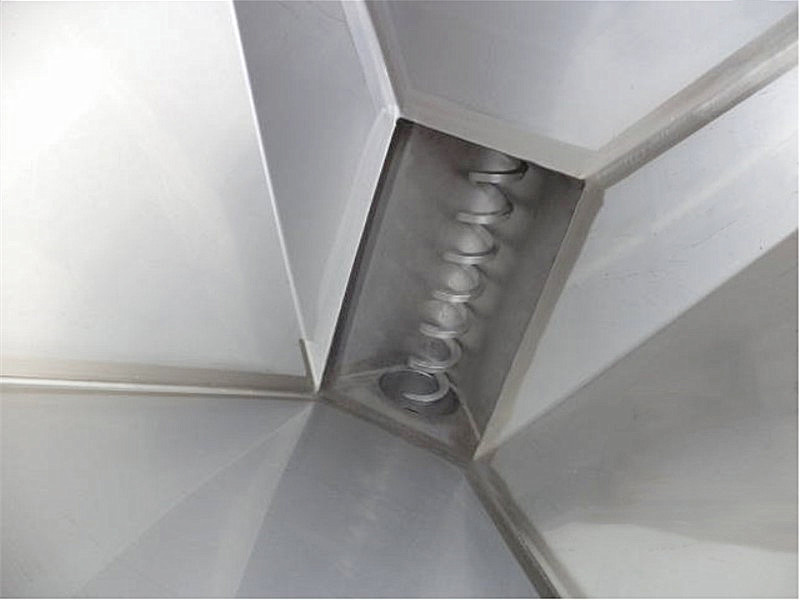

8

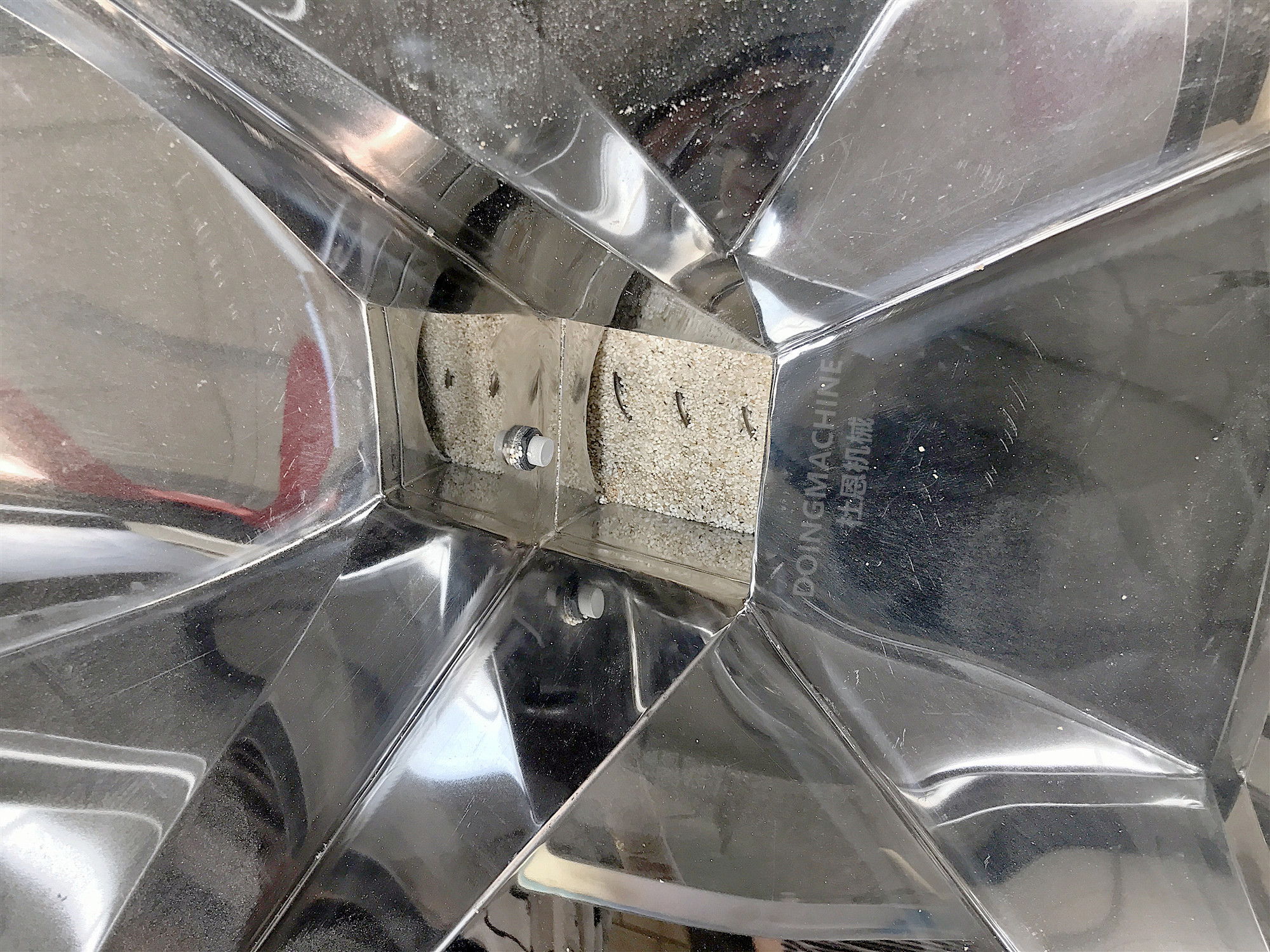

Hopper inside

SY-17

Drive motor

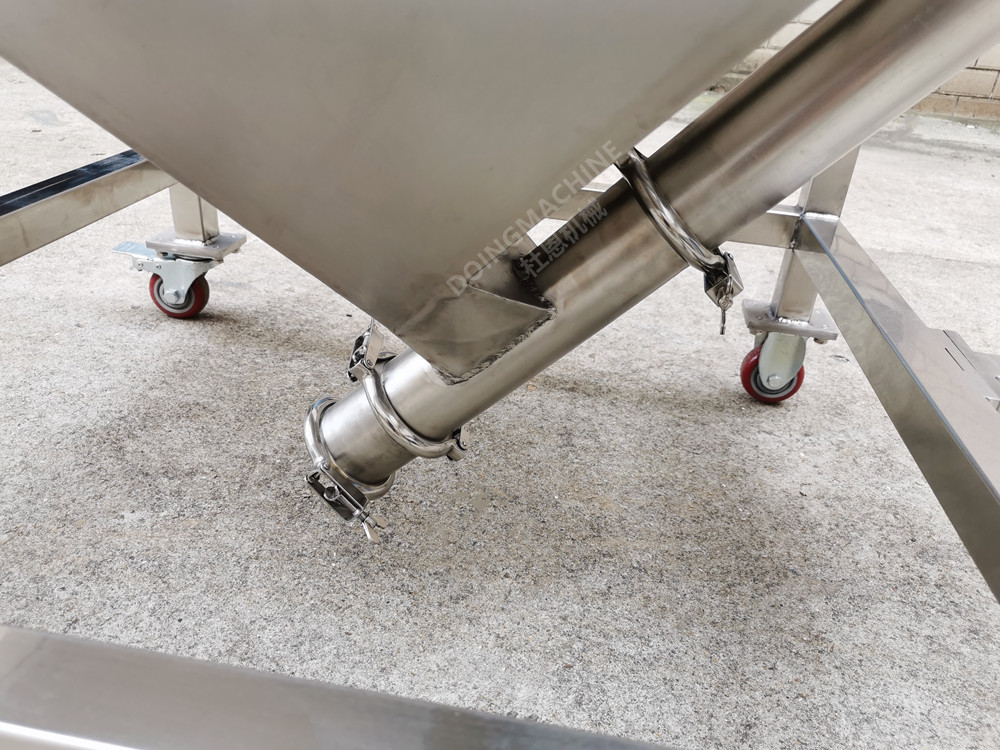

SY-13

Feeding throat


Typical Applications

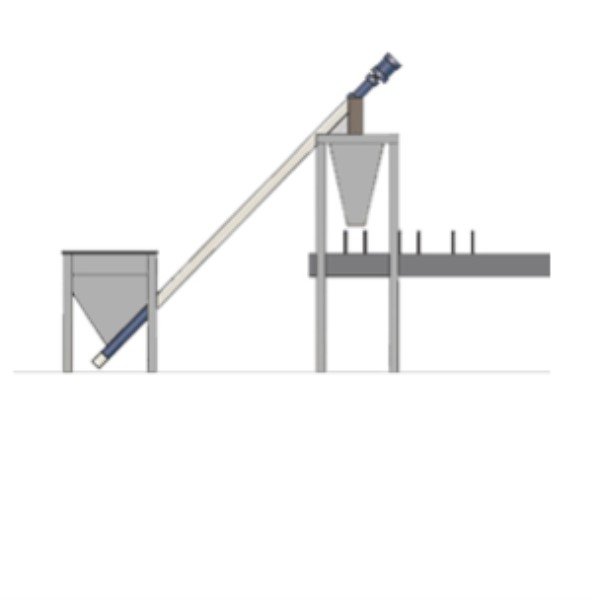

600-1

Conveying to packing machine


600-3

Conveying to storage bin

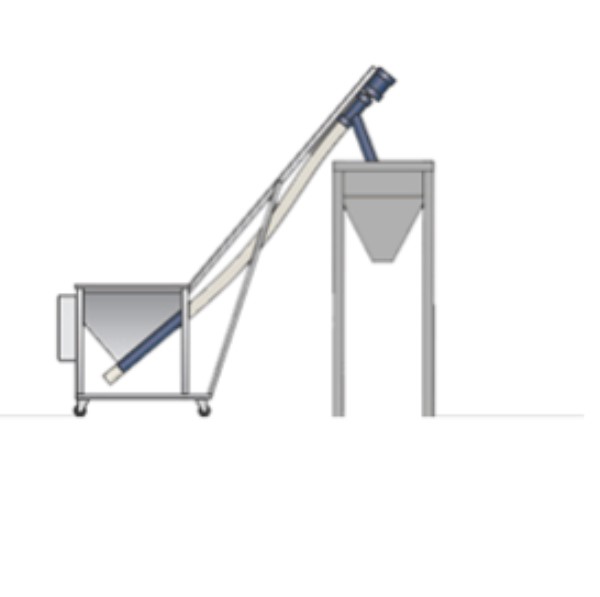

600-4

Mobile conveyor

FAQ

Q: What information should be provided in order to get a proposal or quotation?

A: Our flexible screw auger conveyor is customerized. Before we can work out a detailed quotation, we have to know the following information:


1) What product you are going to convey

2) Product particle size and bulk density

3) Conveying distance and height

4) Conveying capacity in kg/h


Q: How the machine will be delivered ?

A: The conveyor is packed in plywood box for shipping


Q: What standard models do you have?

A: We have the following standard models:


Model  KLS-1 KLS-2 KLS-3 KLS-4
Conveying capacity kg/h  400-800 800-1500 800-2000 1500-3000
Motor power KW 1.5 2.2 3 4
Conveyor pipe length mm  2-12 2-12 2-12 2-12
Minimum bending radius  mm  1500 2000 3000 4000
Note: The coveying capacity is measured for conveying flour in 4 meters pipe.
