1. Convey or move bulk materials from place to place within a factory by using pneumatic suction
2. Vauum pump: high pressure air pump
3. Conveying capacity: 400-5000 kg/h
4. Conveying length: less than 20 meters
5. GMP design
ZKS series pneumatic vacuum conveying system, which usually consists of feed station, soft tube, separator tank (or Three-way valve), secondary filter and high pressure air pump, is the ideal method for conveying or moving bulk materials, such as free-flowing powder and granules, from place to place within a factory by using pneumatic suction.
The high pressure air pump generates strong air flow inside the conveying system. Air rushes in through the suction inlet of feeding point, where bulk material is carried in this air stream. Then the bulk material is conveyed into the separator tank (or three-way valve) with the air stream, which separate most of the bulk material from the air and discharge it into the delivery point. The air with small quantity of fine powder flows through the secondary filter and is exhausted by the air pump.
Two types of conveying system are available depends on different receiving hoppers:
Type A: Conveying to sealed hopper. The hopper should be air-tight and a three-way valve for separating bulk material from air has to be inserted into the hopper. The conveying process is continuous.
Type B: Conveying to top-open hopper. The separator tank, usually includes filter, flap valve and air shock tank, should be mounted above the hopper. When the separator tank is filled with bulk material, the air pump switches off automatically. Meanwhile, the air shock tank release the compressed air from inside of filter to blow off the fine particles and the flap valve opens to discharge the bulk materail into the beneath hopper. The system often operates based on timed interval. If air locker (air tight rotary valve) is equipped, the operation can be continuous.
Type A: Conveying to sealed vessel | Type B: Conveying to open hopper |
2. Easy to clean: The conveying system can be easily dismantled for cleaning
3. Small foot print: The conveying soft tube takes up little or no floor space within your facility
4. Easy to install: The conveying system is connected by quick-open clamps which makes the installation very easy
5. GMP standatrd: The system is made by stainless steel and mirror polished. No dead corners for cleaning.
6. Low noise and power consumption: Noise in operation is less than 60 dB.

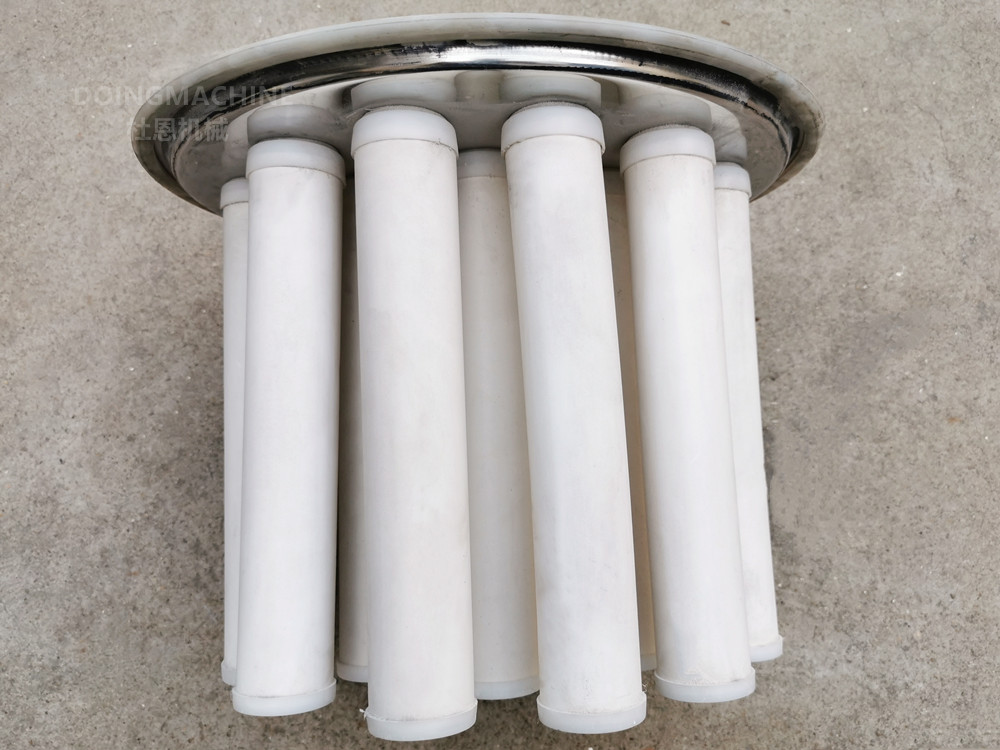

Low noise air pump | Tubular filter |

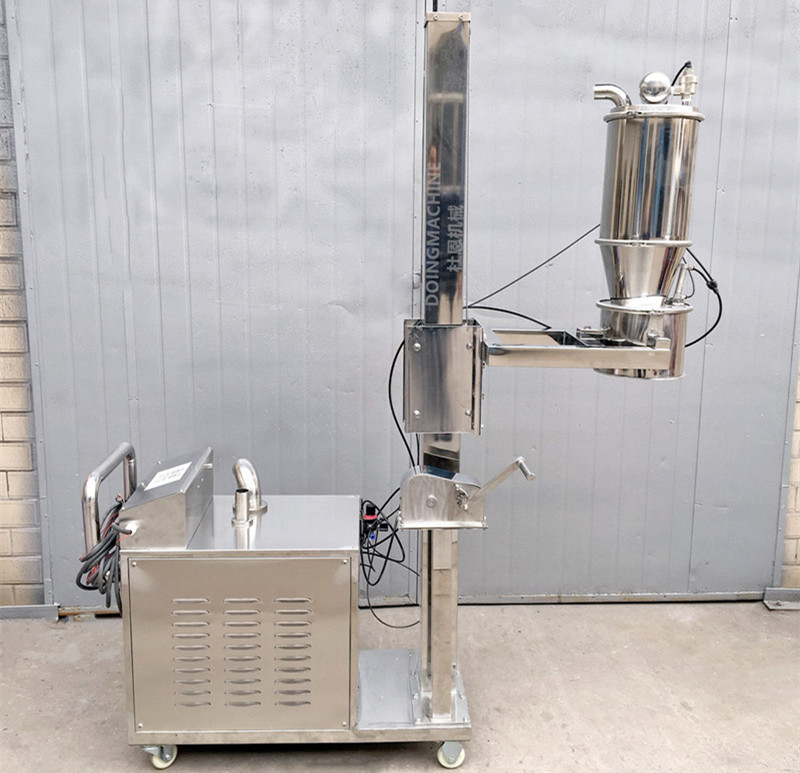

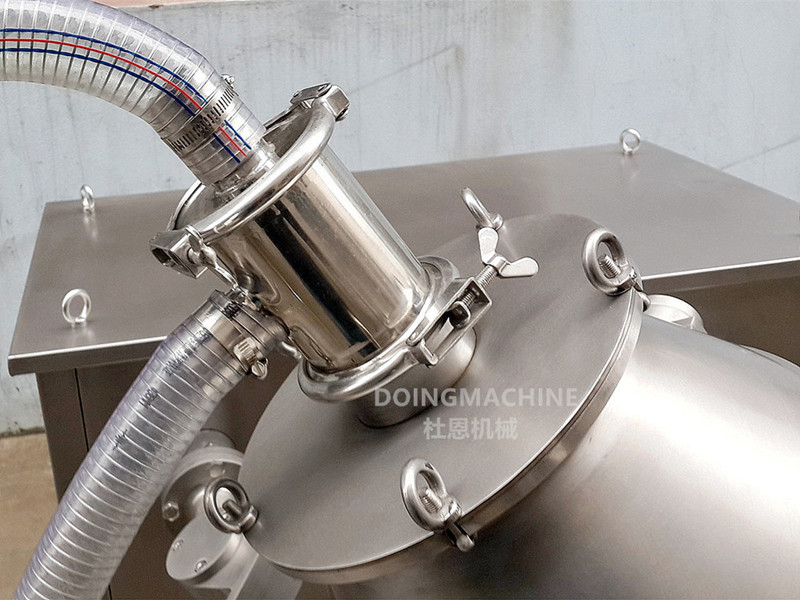

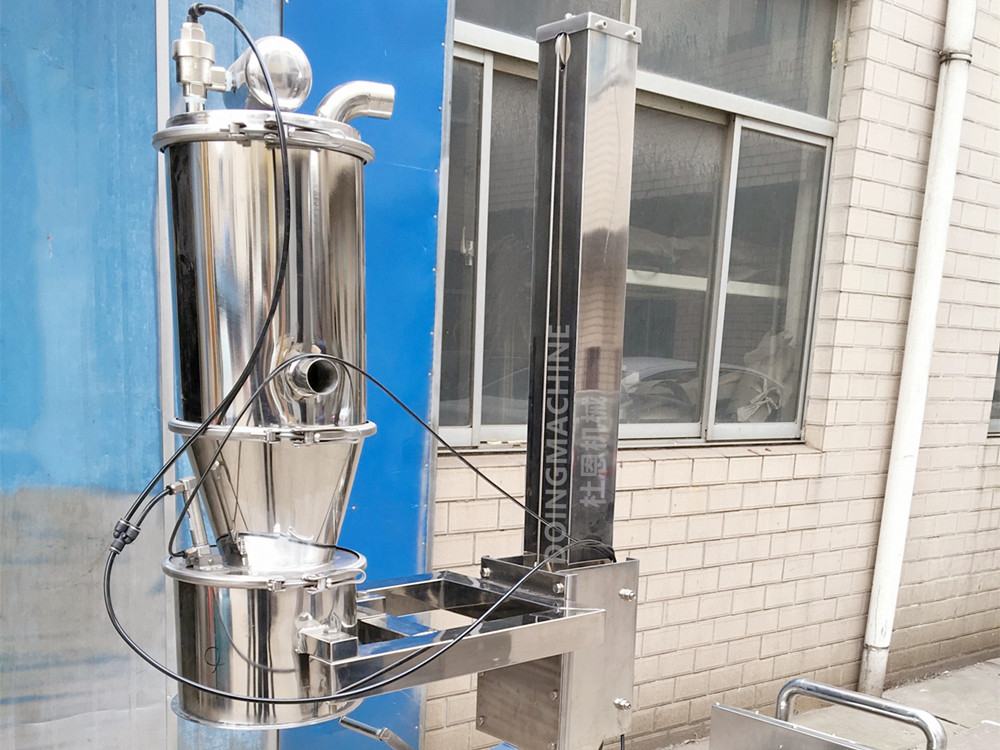

Three-way valve for solid-air separation | Separator tank |

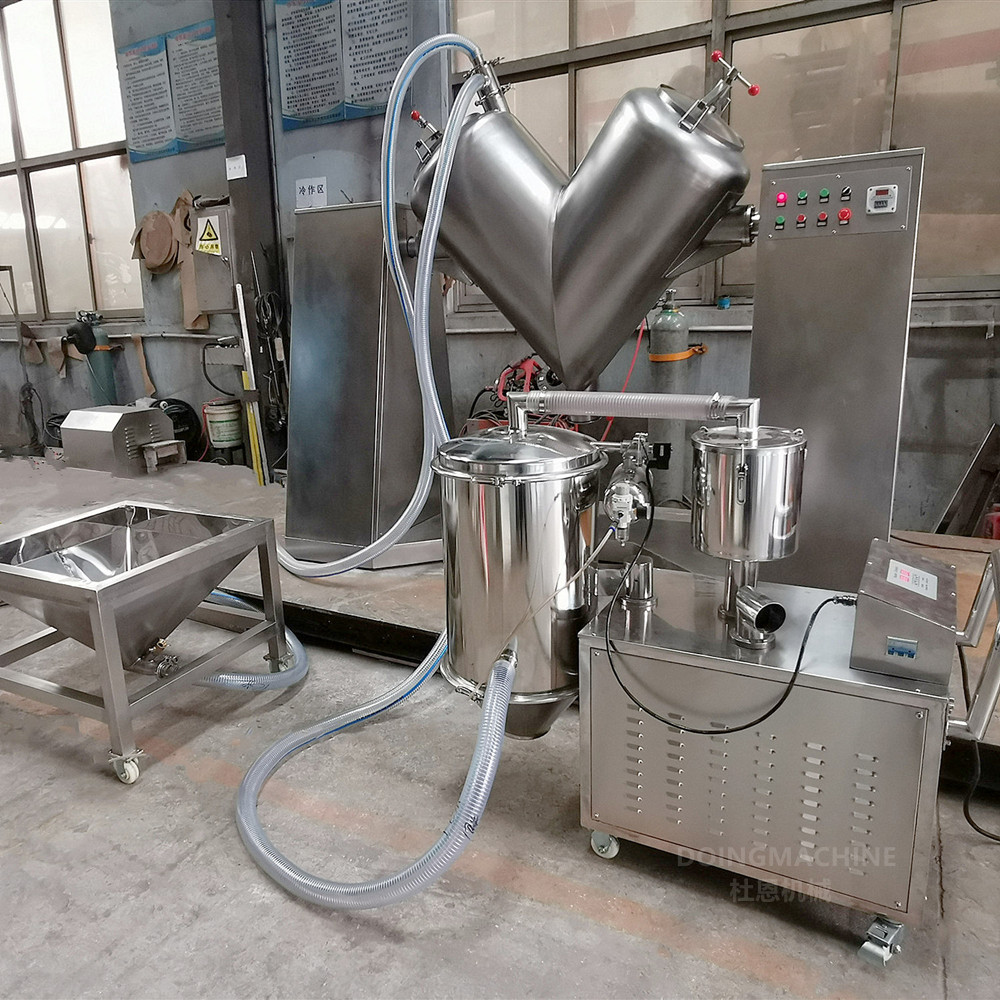

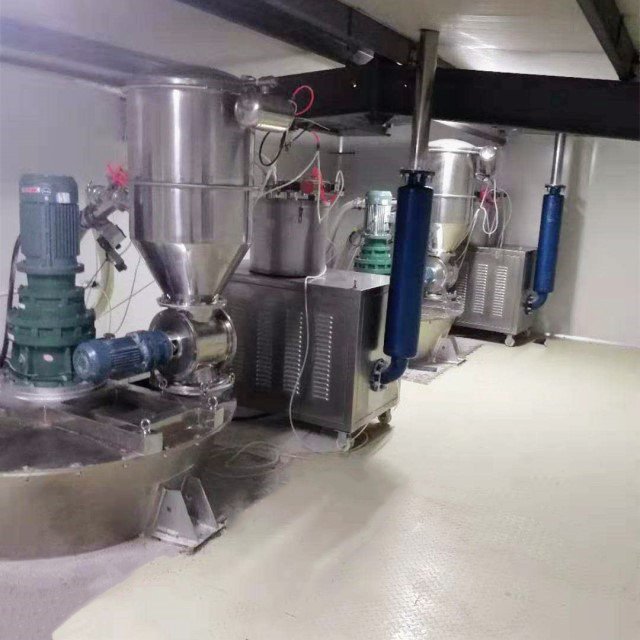

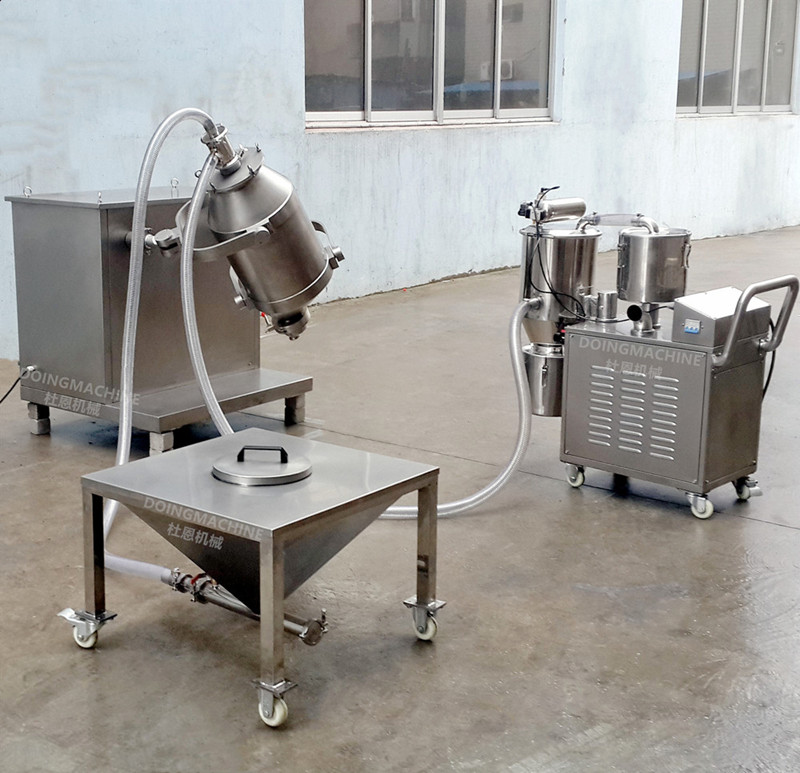

Conveying to powder mixer | Conveying to top-open hopper | Continuous feeding with rotary valve |
A: Our pneumatic vacuum conveying system is customerized. Before we can work out a detailed quotation, we have to know the following information:
1) What product you are going to convey
2) Product particle size and bulk density
3) Conveying distance and height
4) Conveying capacity in kg/h
A: The conveyor is packed in plywood box for shipping
A: We have the following standard models:
Model | ZKS-1 | ZKS-2 | ZKS-3 | ZKS-4 | ZKS-5 |
Conveying capacity kg/h | 400 | 600 | 1200 | 2000 | 4000 |
Air pump power KW | 1.5 | 2.2 | 3 | 5.5 | 7.5 |
Separator tank dimension mm | Φ220X820 | Φ220X820 | Φ290X950 | Φ420X1250 | Φ420X1650 |
Weight kg | 65 | 80 | 90 | 150 | 175 |
1. Convey or move bulk materials from place to place within a factory by using pneumatic suction
2. Vauum pump: high pressure air pump
3. Conveying capacity: 400-5000 kg/h
4. Conveying length: less than 20 meters
5. GMP design
ZKS series pneumatic vacuum conveying system, which usually consists of feed station, soft tube, separator tank (or Three-way valve), secondary filter and high pressure air pump, is the ideal method for conveying or moving bulk materials, such as free-flowing powder and granules, from place to place within a factory by using pneumatic suction.
The high pressure air pump generates strong air flow inside the conveying system. Air rushes in through the suction inlet of feeding point, where bulk material is carried in this air stream. Then the bulk material is conveyed into the separator tank (or three-way valve) with the air stream, which separate most of the bulk material from the air and discharge it into the delivery point. The air with small quantity of fine powder flows through the secondary filter and is exhausted by the air pump.
Two types of conveying system are available depends on different receiving hoppers:
Type A: Conveying to sealed hopper. The hopper should be air-tight and a three-way valve for separating bulk material from air has to be inserted into the hopper. The conveying process is continuous.
Type B: Conveying to top-open hopper. The separator tank, usually includes filter, flap valve and air shock tank, should be mounted above the hopper. When the separator tank is filled with bulk material, the air pump switches off automatically. Meanwhile, the air shock tank release the compressed air from inside of filter to blow off the fine particles and the flap valve opens to discharge the bulk materail into the beneath hopper. The system often operates based on timed interval. If air locker (air tight rotary valve) is equipped, the operation can be continuous.
Type A: Conveying to sealed vessel | Type B: Conveying to open hopper |
2. Easy to clean: The conveying system can be easily dismantled for cleaning
3. Small foot print: The conveying soft tube takes up little or no floor space within your facility
4. Easy to install: The conveying system is connected by quick-open clamps which makes the installation very easy
5. GMP standatrd: The system is made by stainless steel and mirror polished. No dead corners for cleaning.
6. Low noise and power consumption: Noise in operation is less than 60 dB.
Low noise air pump | Tubular filter |
Three-way valve for solid-air separation | Separator tank |
Conveying to powder mixer | Conveying to top-open hopper | Continuous feeding with rotary valve |
A: Our pneumatic vacuum conveying system is customerized. Before we can work out a detailed quotation, we have to know the following information:
1) What product you are going to convey
2) Product particle size and bulk density
3) Conveying distance and height
4) Conveying capacity in kg/h
A: The conveyor is packed in plywood box for shipping
A: We have the following standard models:
Model | ZKS-1 | ZKS-2 | ZKS-3 | ZKS-4 | ZKS-5 |
Conveying capacity kg/h | 400 | 600 | 1200 | 2000 | 4000 |
Air pump power KW | 1.5 | 2.2 | 3 | 5.5 | 7.5 |
Separator tank dimension mm | Φ220X820 | Φ220X820 | Φ290X950 | Φ420X1250 | Φ420X1650 |
Weight kg | 65 | 80 | 90 | 150 | 175 |
