1. Press wet mass through sieve to get required size of granules;
2. Crush dried big lumps or agglomerates through sieve to get uniform granules;
3. Capacity: 30-600 kg/h;
4. Different granule size can be achived by changing sieve.
YK series swing oscillating granulator is mainly consisted of drive motor, feeding hopper, rotor, sieve and discharging chute. Wet mixtures of powders or big granules/agglomerates are fed into the granulating chamber via feeding hopper. The oscillating motion of rotor presses the material through the sieve to get required size of granules. The finished granules is discharged into the barrel via the discharging chute.
YK series swing oscillating granulator has been extensively used in pharmaceutical, food and chemical industries for making granules with wet mixtures, or as a crusher to crush dried big bumps or granules into required size of granules.
 YK-160 Oscillating granulator |  Product |
1. Robust,simple and compact design requires minimum maintenance;
2. Made by SUS304 or SUS316 and mirror polished to meet GMP pharmaceutic sanitary standards.
3. Uniform granules, higher output, less fines and low noise.
4. Special drive shaft sealing design can 100% make sure contamination free of product.

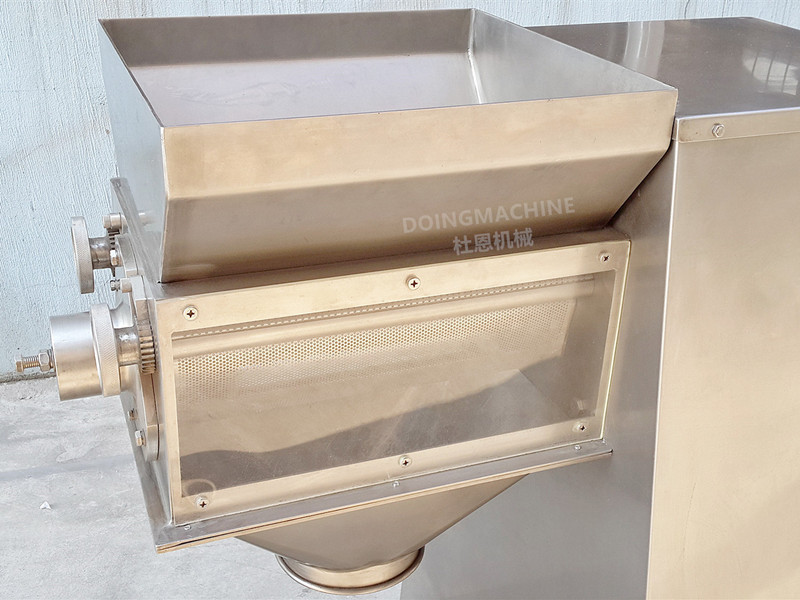

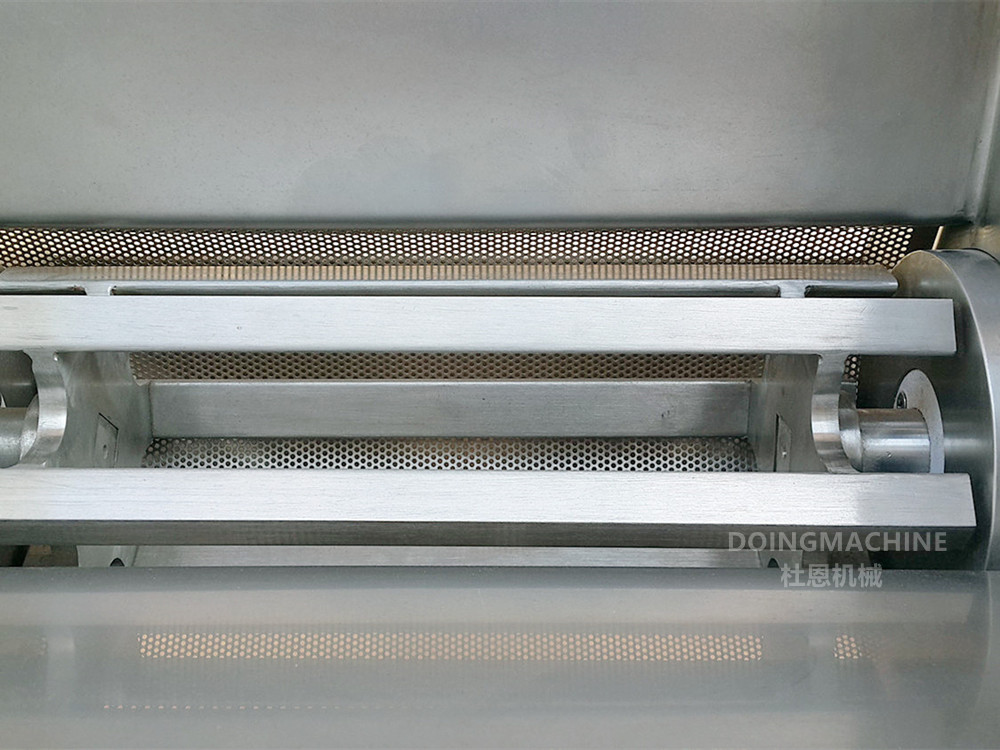

 Granulating chamber Easy for cleaning and dismounting |  Oscillating rotor Dismountable for cleaning |

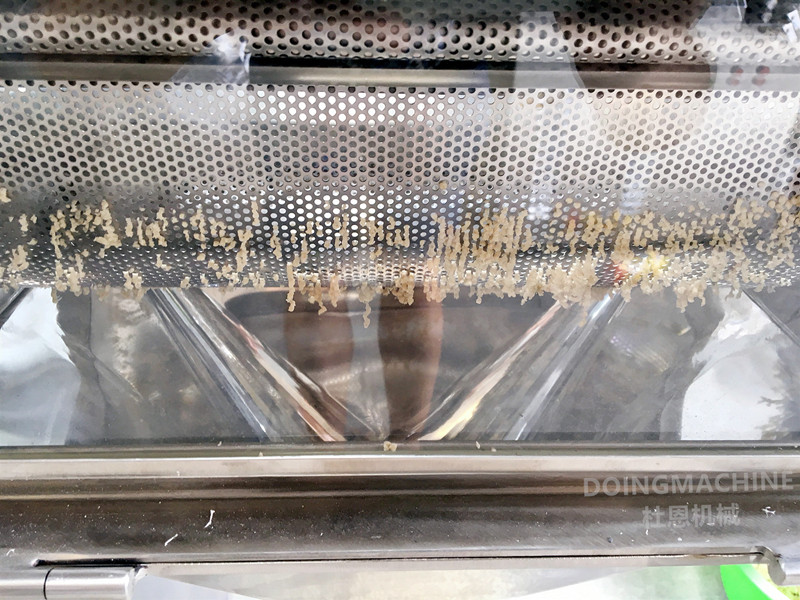

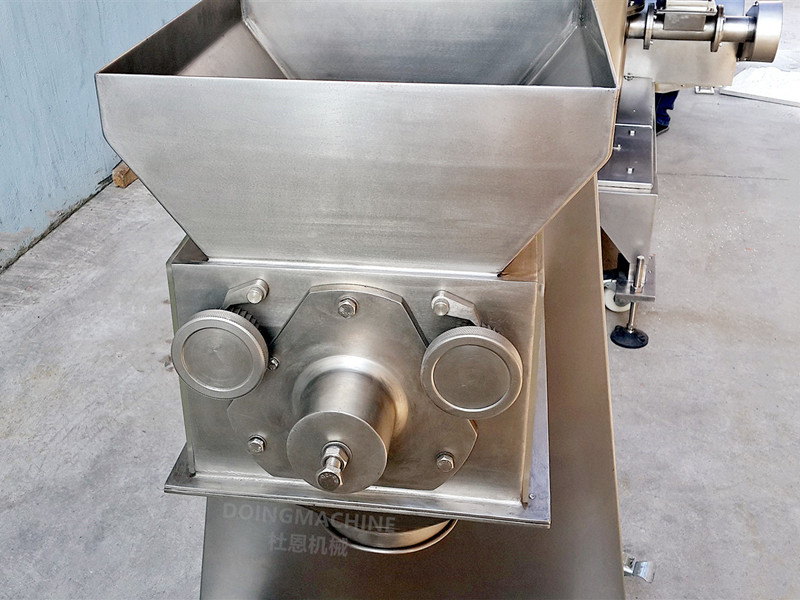

 Sieve tightening and chaning device |  Granulating sieve (1-3mm) |
 Instant medicine granule |  Chicken essence |  Instant herb/fruit tea granule |
A: Our oscillating granulator can be customerized. Before we can work out a detailed proposal or quotation, we have to know the following information:
1) Detailed information about the product and main process you are going to make
2) Granule size
3) Granulating capacity in kg/h
4) Construction material:SUS304 or SUS316L
A: The granulator is packed in plywood box for shipping
A: We have the following standard models:
| Model | YK-100 | YK-160 | YK-250 | YK-300 |
| Rotor diameter mm | 120 | 160 | 250 | 300 |
| Capacity kg/h | 30-200 | 100-300 | 150-400 | 200-600 |
| Motor power KW | 1.1 | 2.2 | 4 | 5.5 |
| Rotor speed RPM | 55 | 55 | 55 | 55 |
| Oscillating angle Degree | 360 | 360 | 360 | 360 |
| Dimension L x W x L mm | 700x400x1050 | 1000x800x1300 | 1200x950x1400 | 1300x1050x1500 |
| Gross weight kg | 280 | 380 | 540 | 890 |
