1. Press wet mass through perforated screen to get require-sized cylindrical extrudates
2. Wet granulation for food, chemical and pharmaceutical products
3. Capacity: 20-400 kg/h
4. GMP design
5. Different granule size can be achieved by changing perforated screen
XZL series rotary basket extruding granulator has been commonly used in pharmaceutical, food and chemical industries for making granules with wet mass before spheronization.

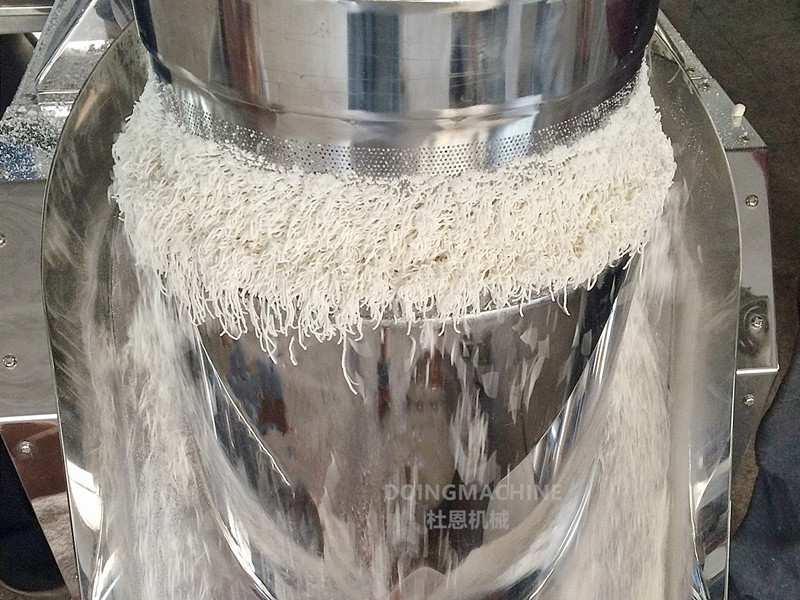

 Granulation process |  Product |
2. Made by SUS304 or SUS316 and mirror polished to meet GMP pharmaceutic sanitary standards.
3. Uniform granules, higher output, less fines and low noise.
4. Special drive shaft sealing design can 100% make sure contamination free of product.

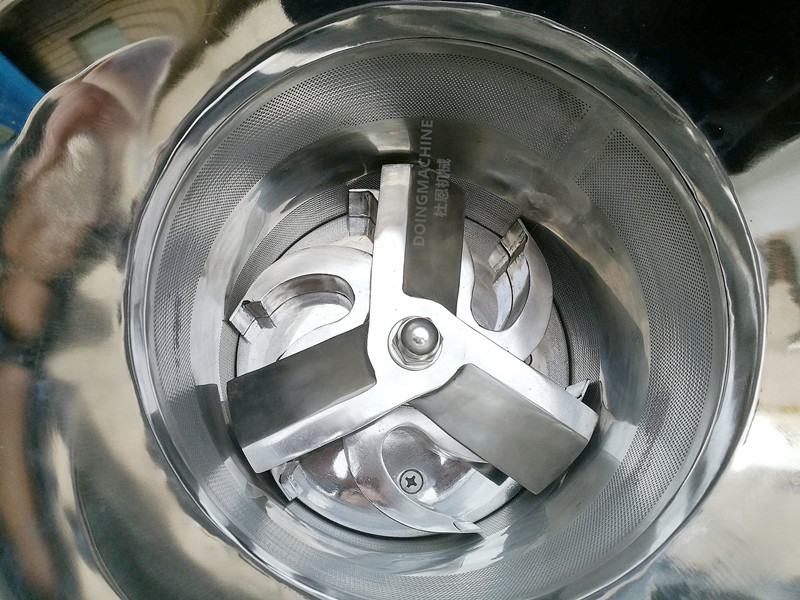

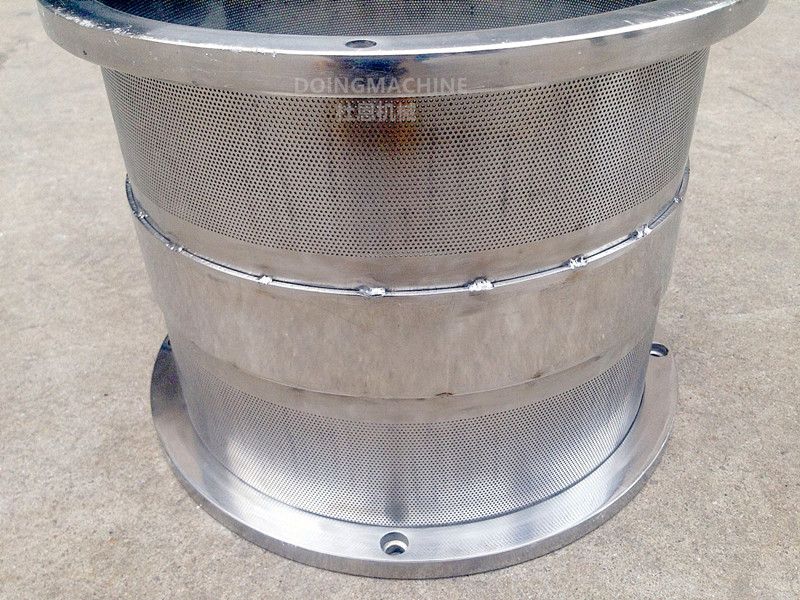

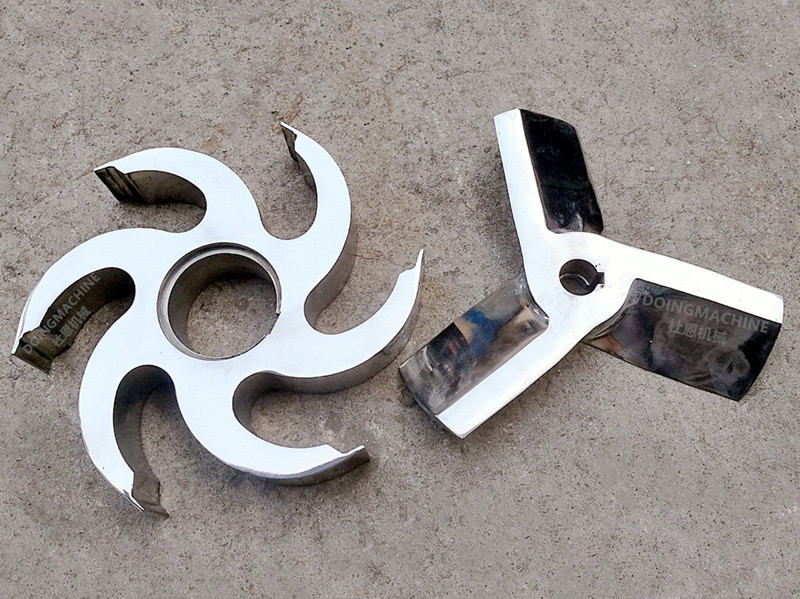

 Extrusion blades Linear cut and mirror polished to meet GMP standard |  Perforated screen Hole size: 0.8-3mm |

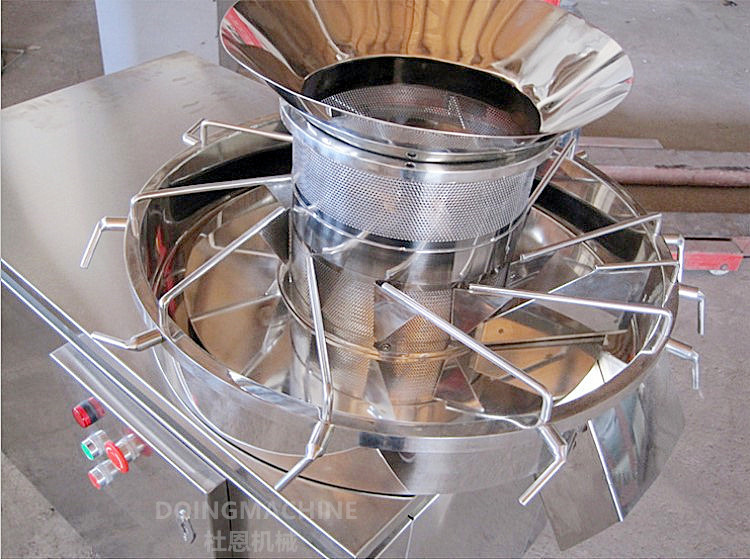

 Granulating chamber |  Scrapers for cutting the extrudates |
 WDG in agrochemical industry |  Chicken essence in food industry |  Instant herb tea in food industry |
A: Our granulator is customerized. Before we can work out a detailed proposal or quotation, we have to know the following information:
1) Detailed information about the product and main process you are going to make
2) Granule size
3) Granulating capacity in kg/h
4) Construction material:SUS304 or SUS316L
A: The granulator is packed in plywood box for shipping
A: We have the following standard models:
| Model | XZL-250 | XZL-300 |
| Granulating chamber diameter | 250 mm | 300 |
| Capacity | 100-200 kg/h | 200-400 kg/h |
| Granule size | 0.8-3 mm | 0.8-3 mm |
| Drive motor | 5.5 KW | 7.5 KW |
| Extrusion blade speed | 50 RPM ( adjustable) | 36 RPM (adjustable) |
| Dimension | 1400x650x1300 mm | 1500x700x1500 mm |
| Gross weight | 350 kg | 400 kg |
