1. Making extruded particles or moist granules into spheres
2. Wet spheronization for Food, Chemical and Phamaceutical products;
3. Capacity: 2.5-200 kg/batch
4. GMP design
QZL series Extruder Spheronizer/Marumerizer is the extensively used processor for converting extruded particles or moist granules from a mixer/granulator into perfect spheres in food, chemical and pharmaceutical industries.
Particles are fed into the spinning friction plate, which throws them against the inside wall of the cylinder. Extruded particles are quickly broken into segments approximately one diameter long. Centrifugal and gravitational forces create a mechanically fluidized ring of particles. Collisions with the wall, friction plate and other particles result in the plastic deformation of each granule, quicky creating a spherical shape. The desired shape for a specific application is time and formulation dependent and is achieved, predictably and repeatedly, in a brief period called the "spheronization time".
 Products | Friction Disc |
1. Producing a smooth particle surface suitable for thin layer coating
2. Forming granuless with a specific bio-consumable shape
3. Conditioning particles to prevent generation of dust and fines from usage or shipping
4. Increasing flowability by elimination of sticking or bridging points
5. Increasing the apparent bulk density up to 25% compared to extruded material

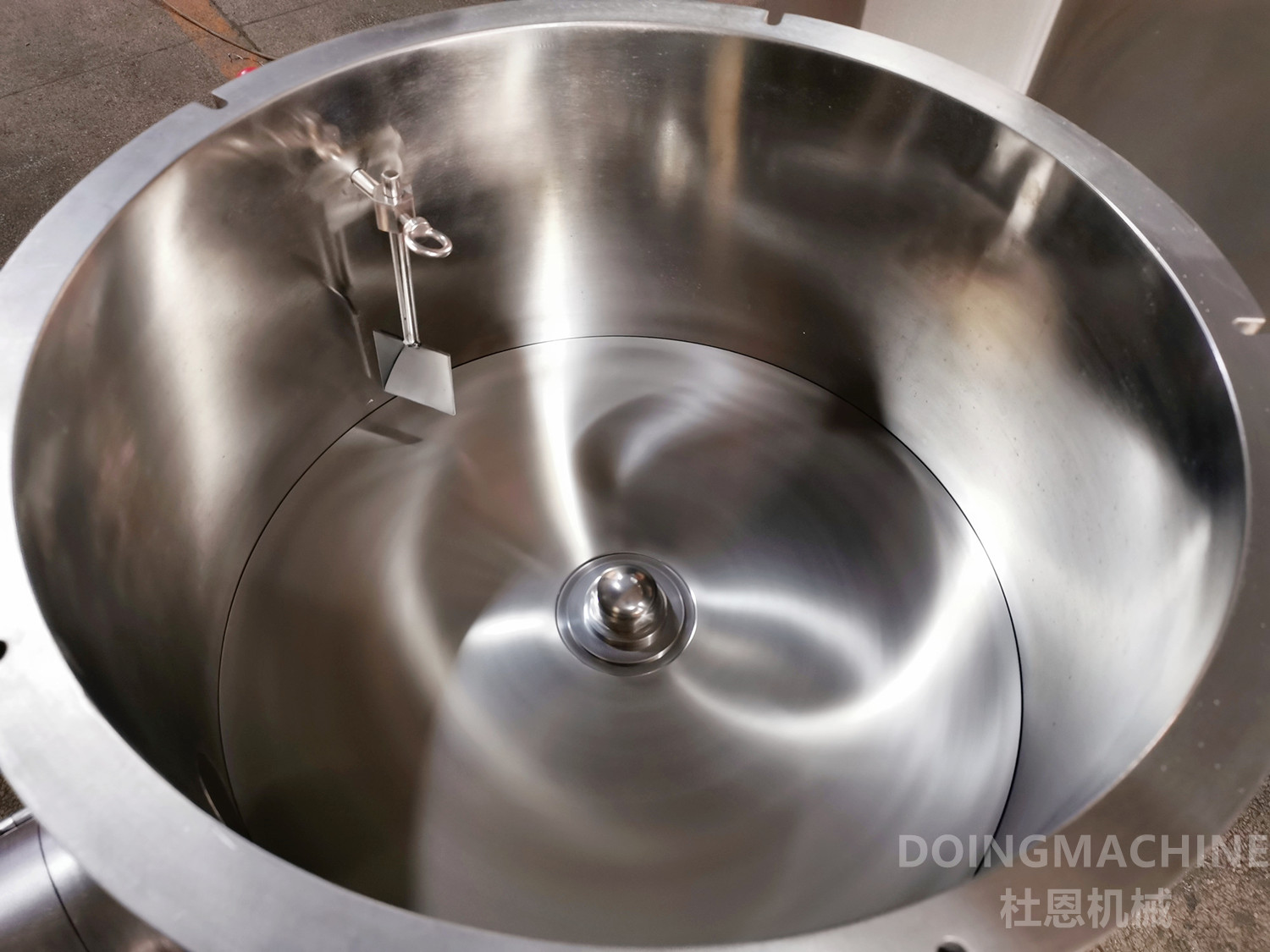

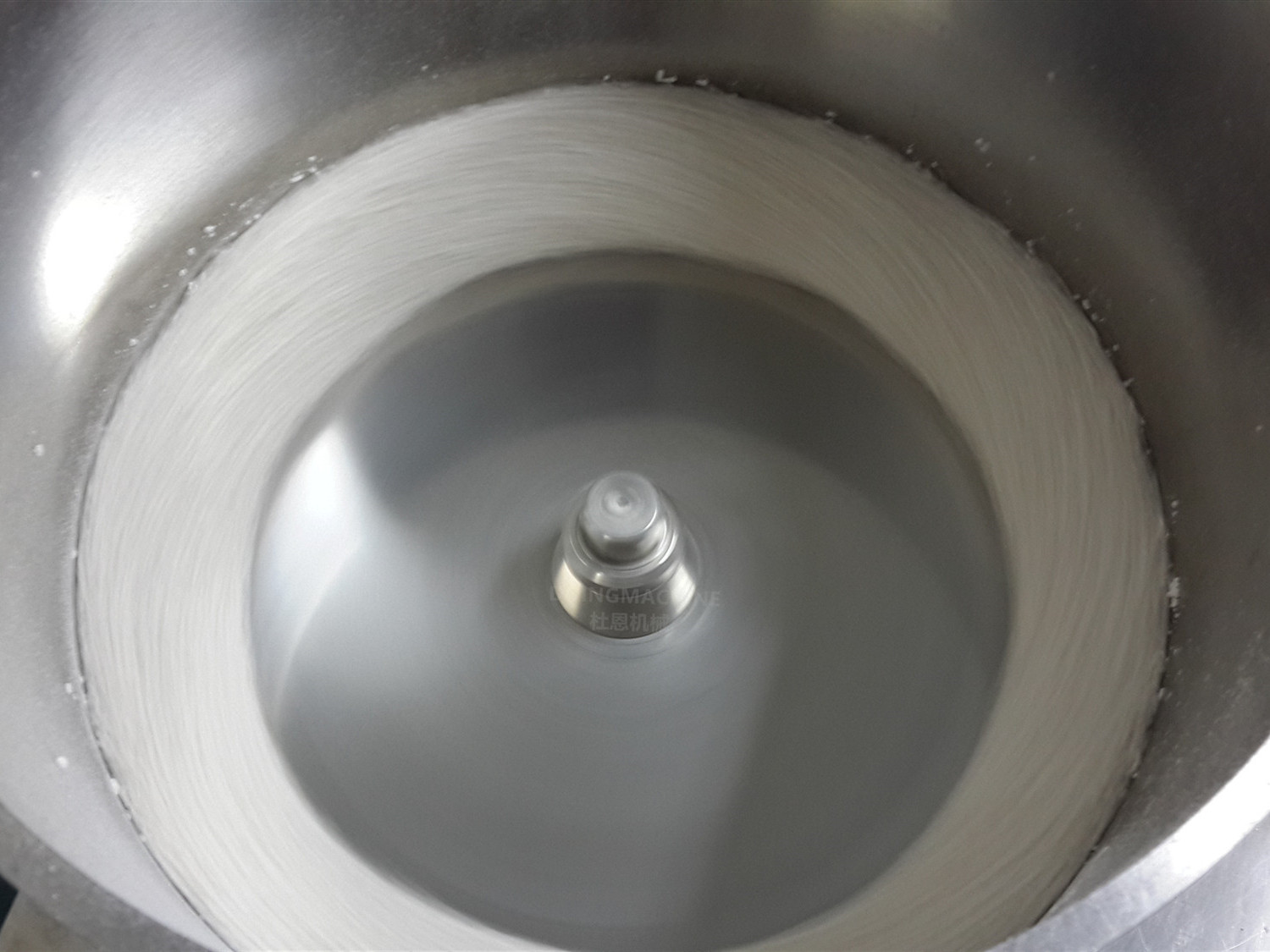

 Spheronization process |  Spheronization pan |
Working with screw extruder | JW-10 extruder spheronizer |

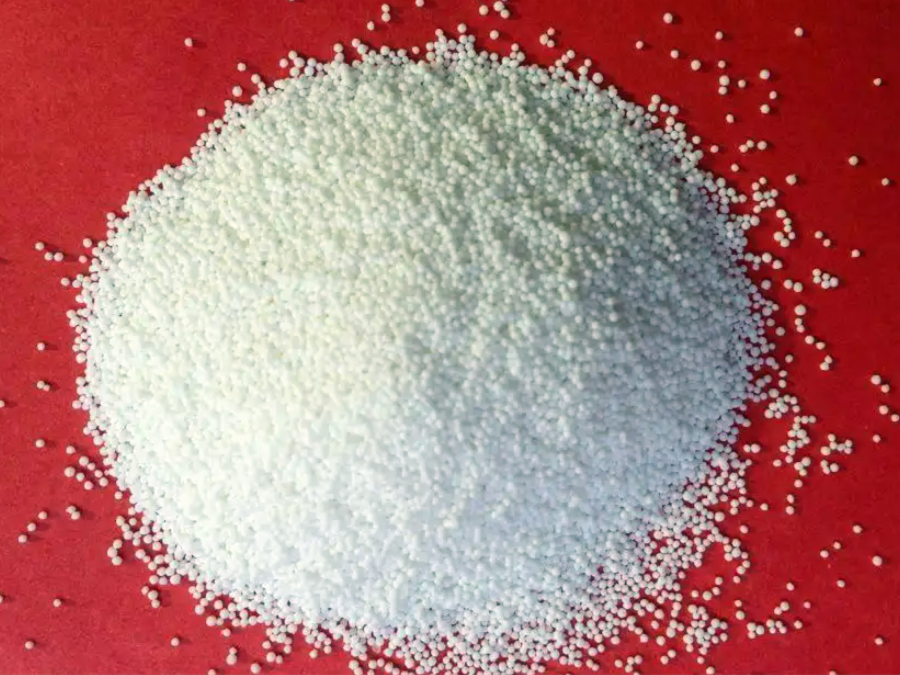

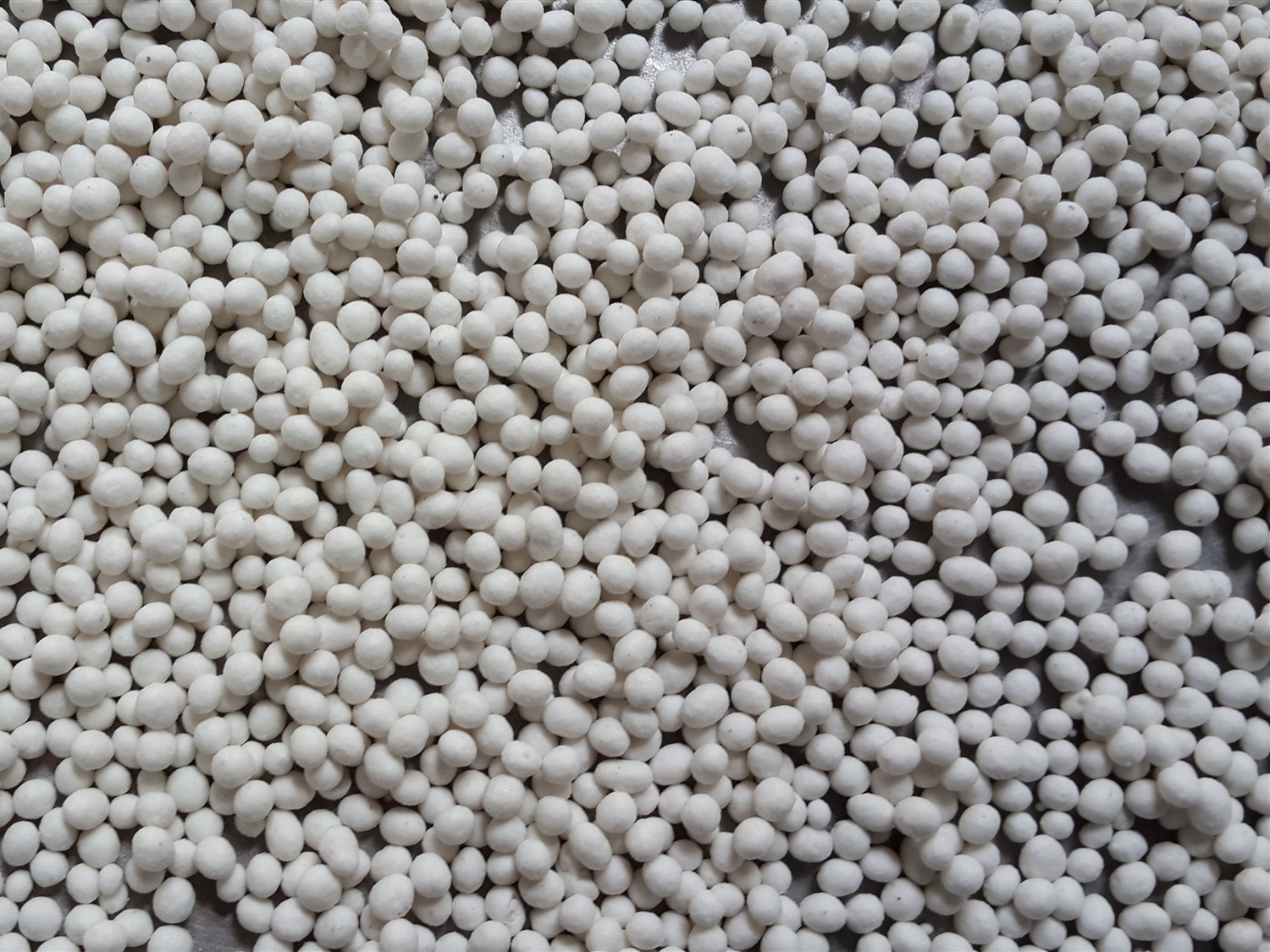

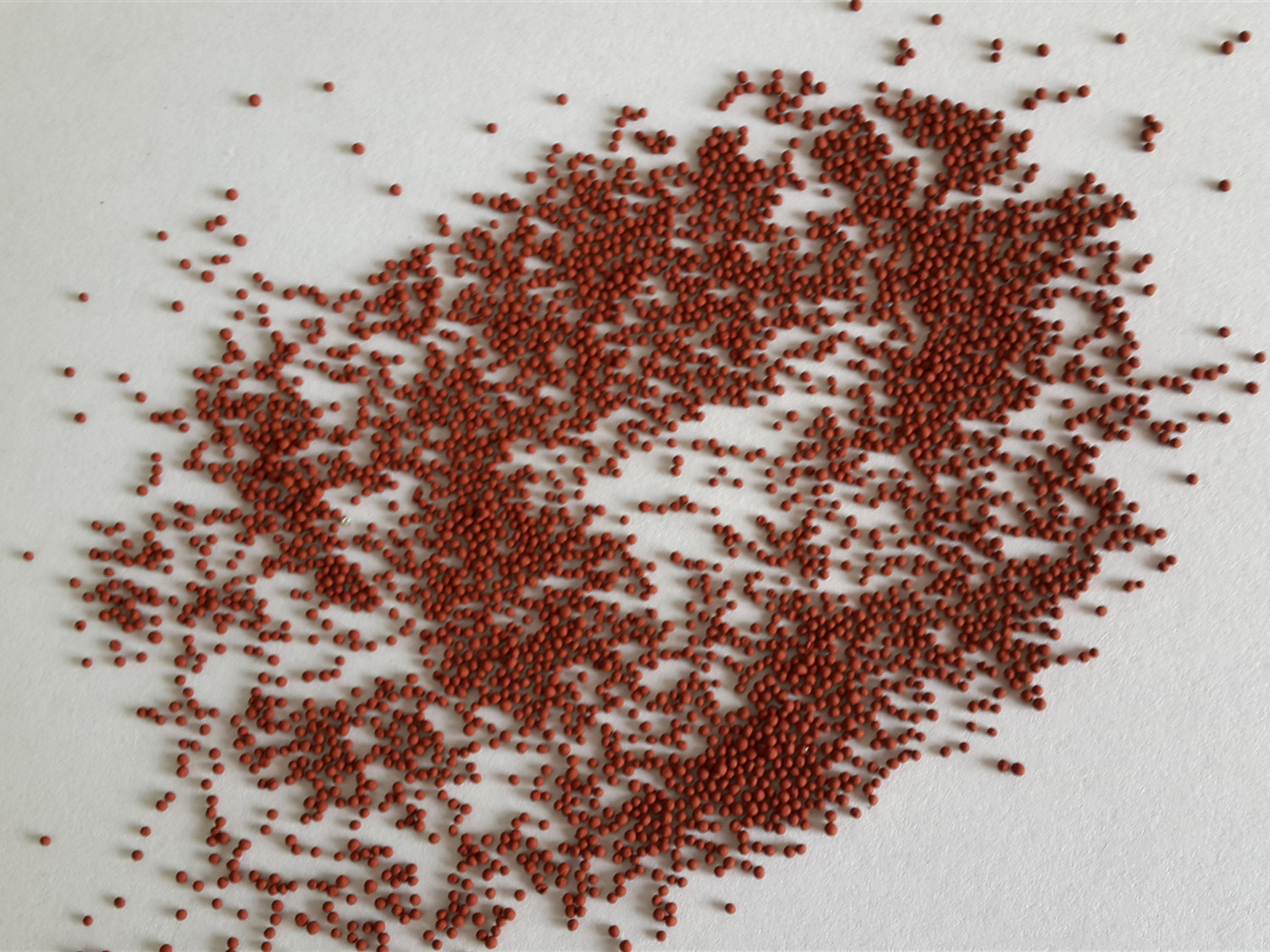

 Pharmaceutical pills |  Chemical spheric granules |  Agrochemical granules |
A: Our granulator is customerized. Before we can work out a detailed proposal or quotation, we have to know the following information:
1) Detailed information about the product and main process you are going to make
2) Granule size
3) Granulating capacity in kg/h
4) Construction material:SUS304 or SUS316L
A: The granulator is packed in plywood box for shipping
A: We have the following standard models:
| Model | JW-5 | JW-10 |
| Friction disc diameter | 315 mm | 600 mm |
| Capacity | 5-10 kg/h | 30-50 kg/h |
| Disc rotation speed | 150-1400 RPM | 100-700 RPM |
| Disc drive motor | 2.2KW | 5.5 KW |
| Exturder power | 0.75 KW | 2.2 KW |
| Dimension | 1330x550x1380 mm | 1700x1000x1900 mm |
| Gross weight | 350 kg | 650 kg |
