Screw Dome Extruder

SZL series Screw Dome Extruder Granulator is designed for making cylindrical granules with wet mass in food, chemical and pharmaceutical industries.
Availability:
Quantity:
Overview


1. Press wet mass through perforated plate with screw to get require-sized cylindrical extrudates

2. Wet granulation for food, chemical and pharmaceutical products
3. Granule size: 0.8-5 mm
4. GMP design is available
5. Granule size is adjustable by changing perforated plate


Product Description


SZL series screw dome extruder granulator is used for wet granulation, which mainly consists of drive motor, feeding hopper, extrusion screw and perforated plate. Wet mass is fed into the feeding hopper by gravity or screw. The extrusion screw (single or twin screw) transport the wet mass to the extrusion zone where it is extruded through a perforated plate to produce well formed, cylindrical extrudates of a controlled diameter. The extrudates break off by their own weight or rotary cutter and are collected for the next processing step. The diameter of extrudate is adjustable by changing perforated plate.


SZL series screw extruding granulator has been commonly used in pharmaceutical, food and chemical industries for making granules with wet mass usually before spheronization.


1-4

Single screw

SY-3

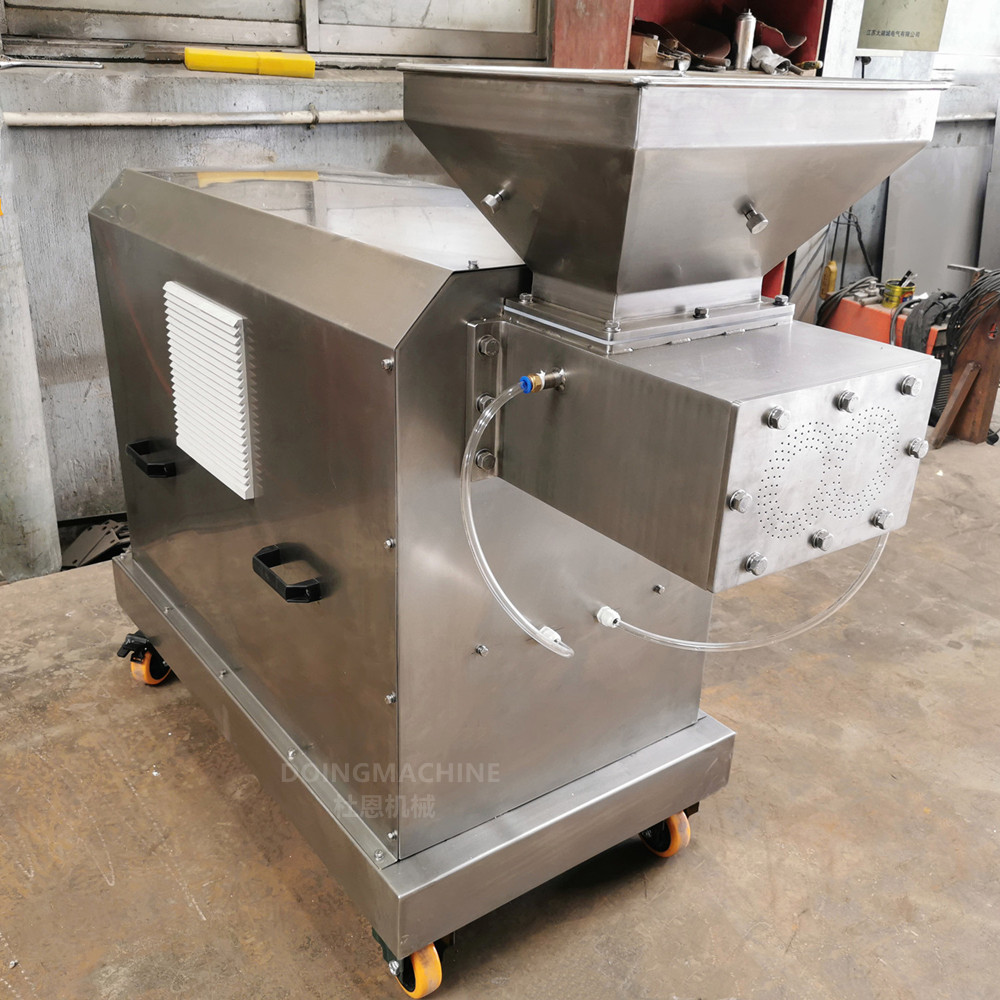

Double screw


Technical Features


 1. Robust,simple and compact design requires minimum maintenance;

 2. Made by SUS304 or SUS316 and mirror polished to meet GMP pharmaceutic sanitary standards.

 3. Uniform granules, higher output, less fines and low noise.

 4. Special drive shaft sealing design can 100% make sure contamination free of product.

 5. Rotary knife cutter can be equipped to break off the extrudates for making uniform length granules

1-5

Dismountable extruding parts


1-6

Extruding head

1-9

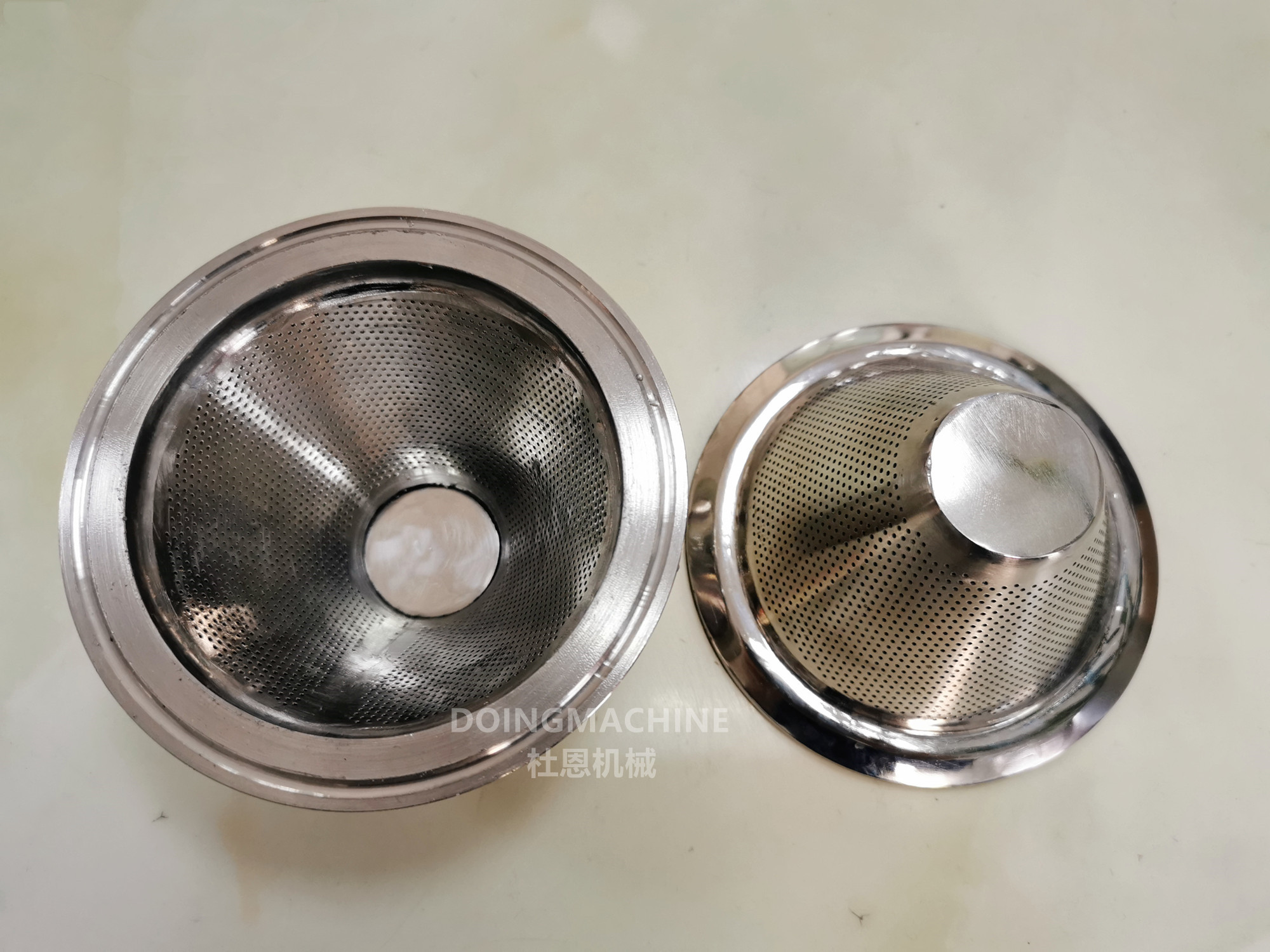

conical screen (0.6-3mm)


SY-10_副本

Working with rotary knife cutter


Typical Applications
sprinkle

Sugar sprinkles


zeolite

Chemical granules


NEW-3

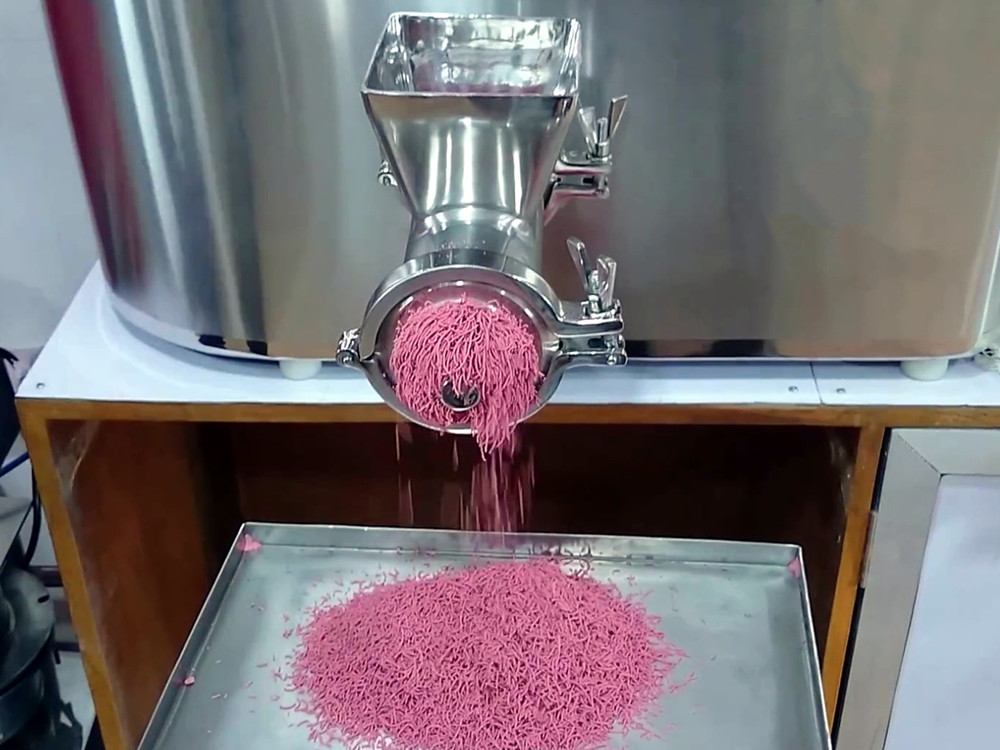

Pharmaceutical granules

FAQ

Q: What information should be provided in order to get a proposal or quotation?

A: Our screw extruder can be customerized. Before we can work out a detailed proposal or quotation, we have to know the following information:


1) Detailed information about the product and main process you are going to make

2) Granule size

3) Granulating capacity in kg/h

4) Construction material:SUS304 or SUS316L


Q: How the machine will be delivered ?

A: The granulator is packed in plywood box for shipping


Q: What standard models do you have?

A: We have the following standard models:


Model SZL-50 SZL-100 SZL-140 SZL-180
Screw diameter  mm  50 100 140 180
Motor power  kw 3 7.5 15 22
Rotation speed RPM 11-110 11-110 11-110 11-110
Weight  280 350 400 500
Dimension  1100x550x1300 1100x550x1600 1500x800x1500 1600x950x1550
